Name: Plan 62383DJ: Simple Detached 3-Car Garage
SKU: 62383DJ
Price: 500.0 USD
Availability: InStock

All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Simple Detached 3-Car Garage

Each plan set includes:

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical wall section
Typical Stair section
Cabinets are shown on all plans.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Scroll

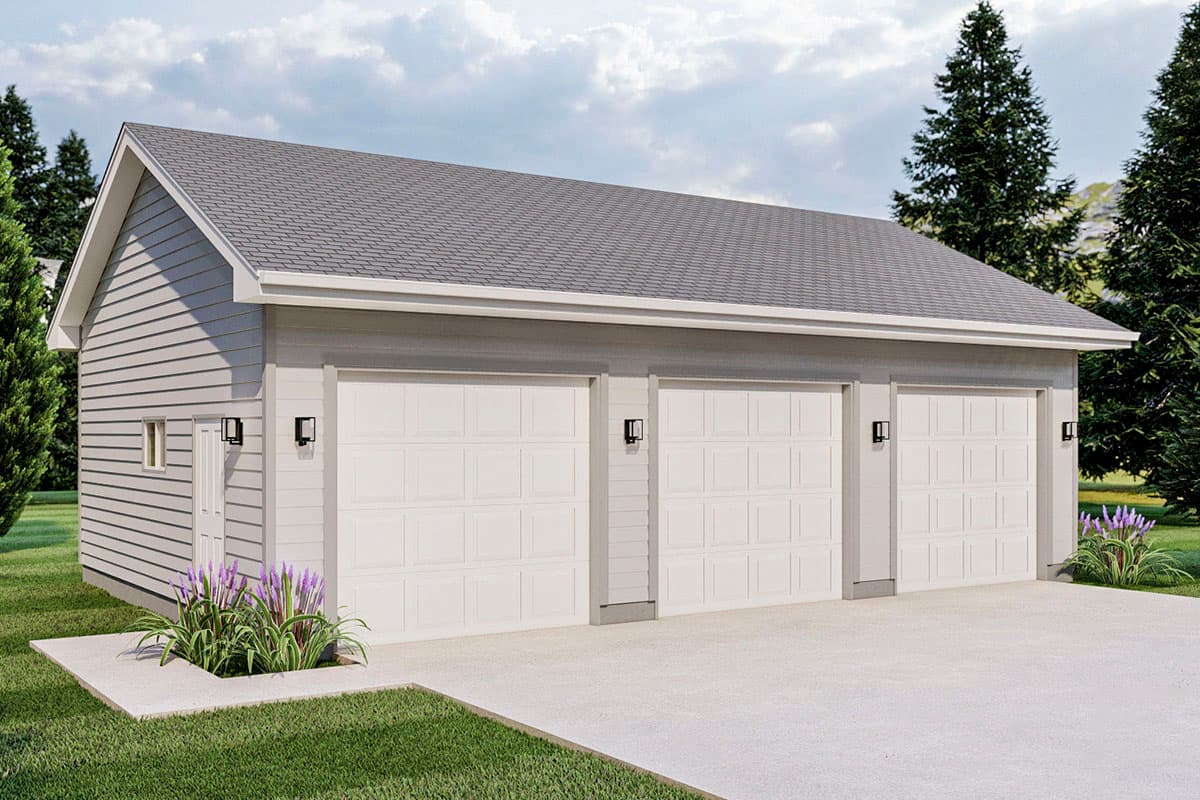

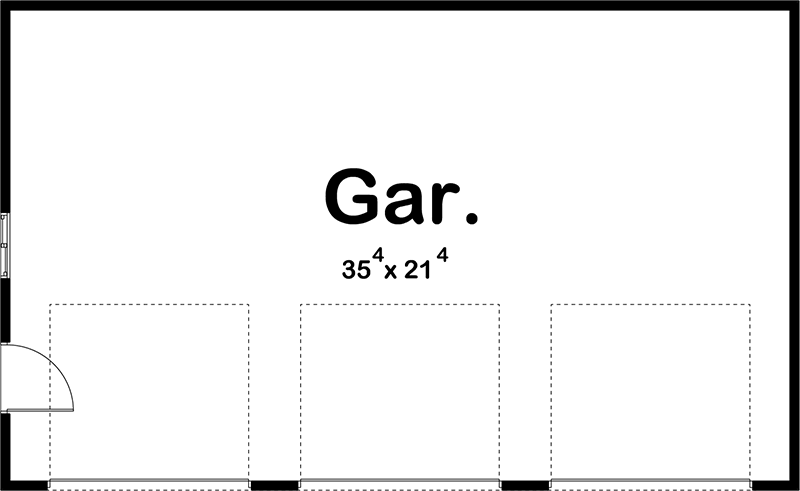

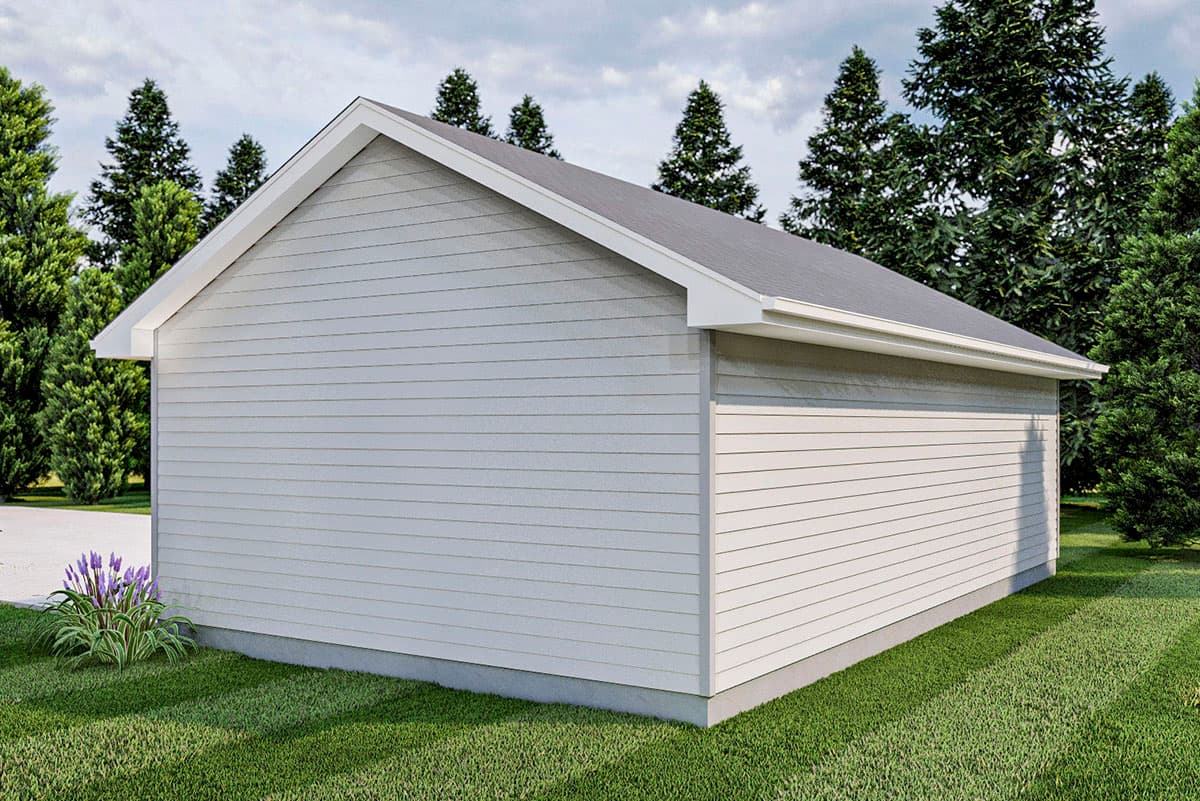

Simple Detached 3-Car Garage 0 Heated s.f. Beds 0 Baths 1 Floors 3 Car garage Buy This Plan PDF - Single-Build $500 5 Sets + PDF $750 CAD + PDF - Single-Build $750 PDF - Unlimited Build $1,000 CAD - Unlimited Build $1,250 View all purchase option online About This Plan This is a single story traditional 3-car garage built on a slab foundation. A person door is located on the side with a slider window. This detached garage is great for storage or hobbies. Floor Plans Main Level Plan Details Square Footage Breakdown Total Heated Area: 0 sq. ft. Beds/Baths Bedrooms: Full bathrooms: Foundation Type Standard Foundations: Slab Exterior Walls Standard Type(s): 2x4 Optional Type(s): 2x6 Dimensions Width: 36' 0" Depth: 22' 0" Max ridge height: 17' 0" Garage Type: Detached Area: 792 sq. ft. Count: 3 Cars Entry Location: Front Ceiling Heights Floor / Height: First Floor / 10' 0" Roof Primary Pitch: 4 on 12

Plan 62383DJ

Plan 62383DJ Simple Detached 3-Car Garage
