Plan 680126VR

Single Car Garage with A Studio

Heated S.F.
273
Beds
0
Baths
1
Stories
1
Cars
2

Floor Plan

Plan 680126VR

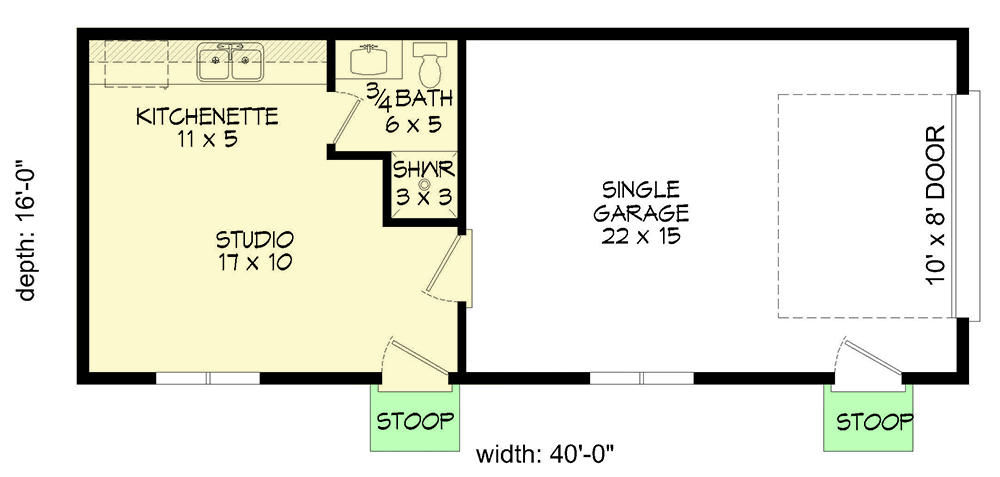

Main Level
Main Level

Plan 680126VR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 680126VR: Single Car Garage with A Studio - Floor Plan - Main Level

Plan Details

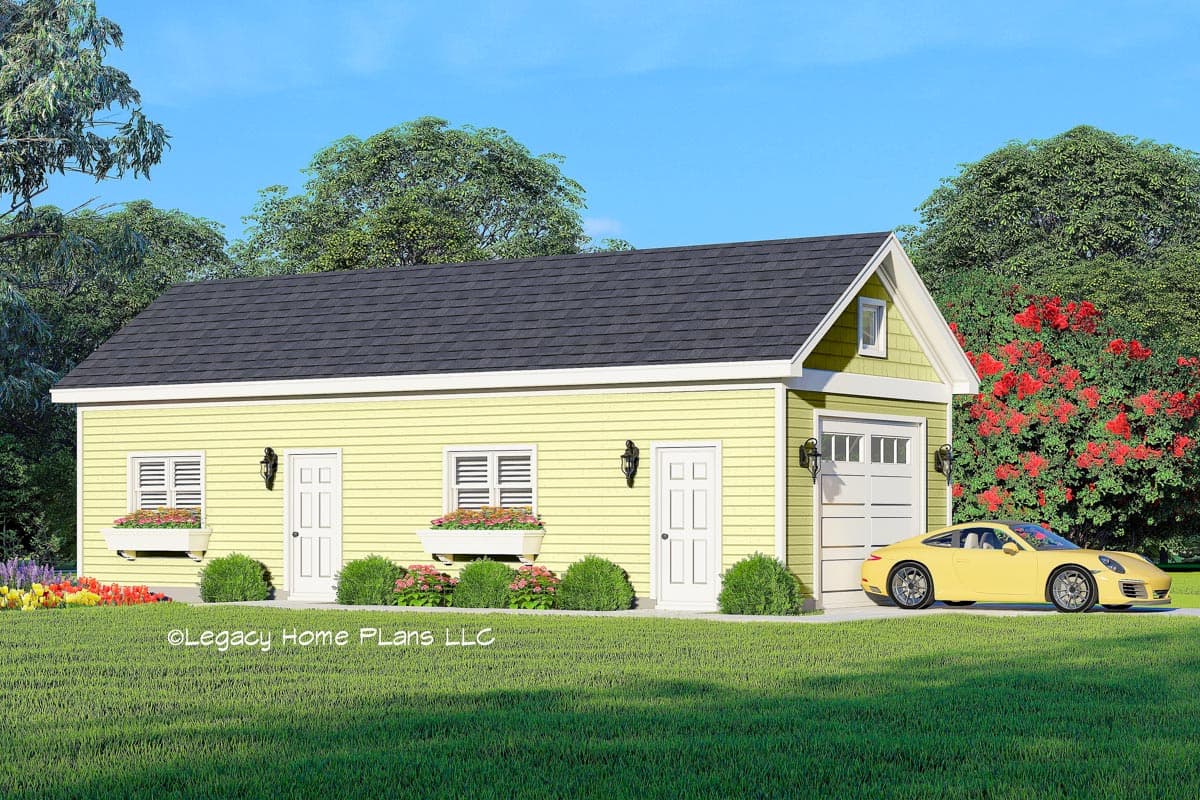

  • With its rectangular foundation shape and simple gable roof, this one car garage with studio is easy to build.
  • You can enter the workshop through the garage or through double doors on the side.
  • Just 16' deep or wide if you decide to build it with the garage entrance in front - this fits well on many footprints.
  • Related Plan: Get a version with an unfinished workshop space with garage plan 68445VR and with a carport with garage plan 68446VR.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

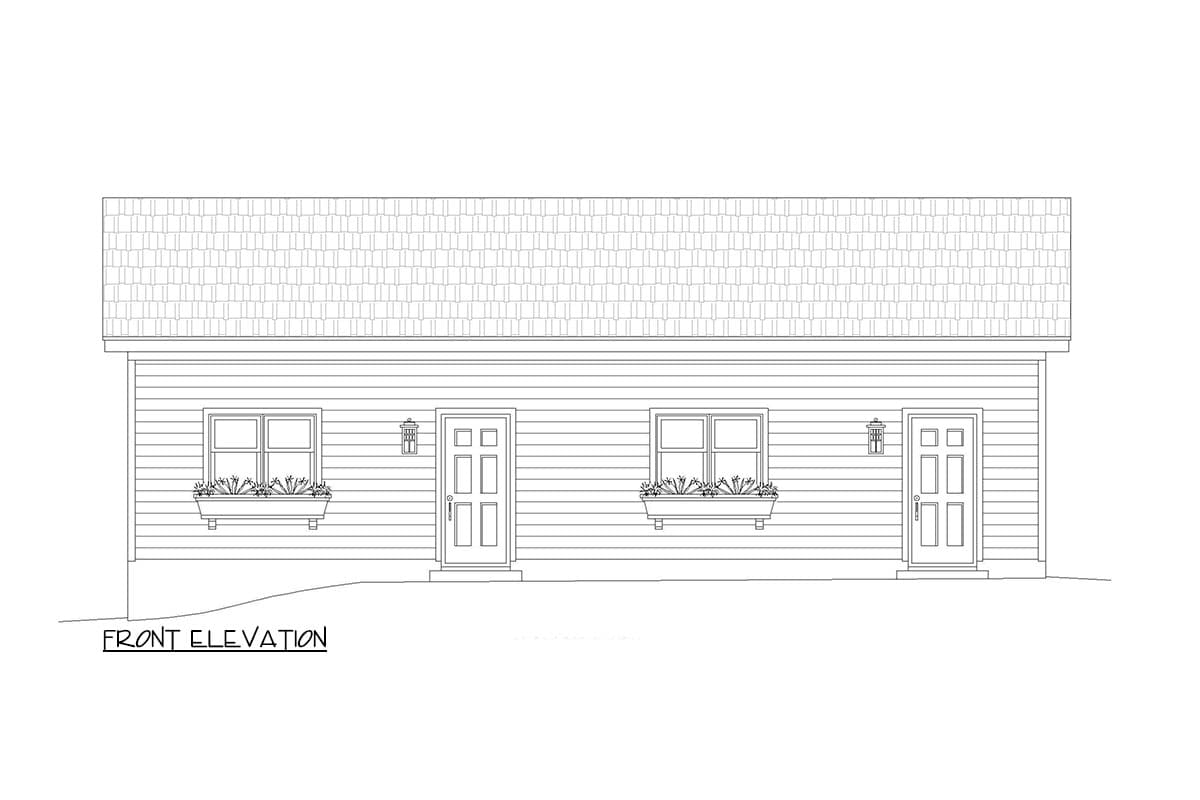

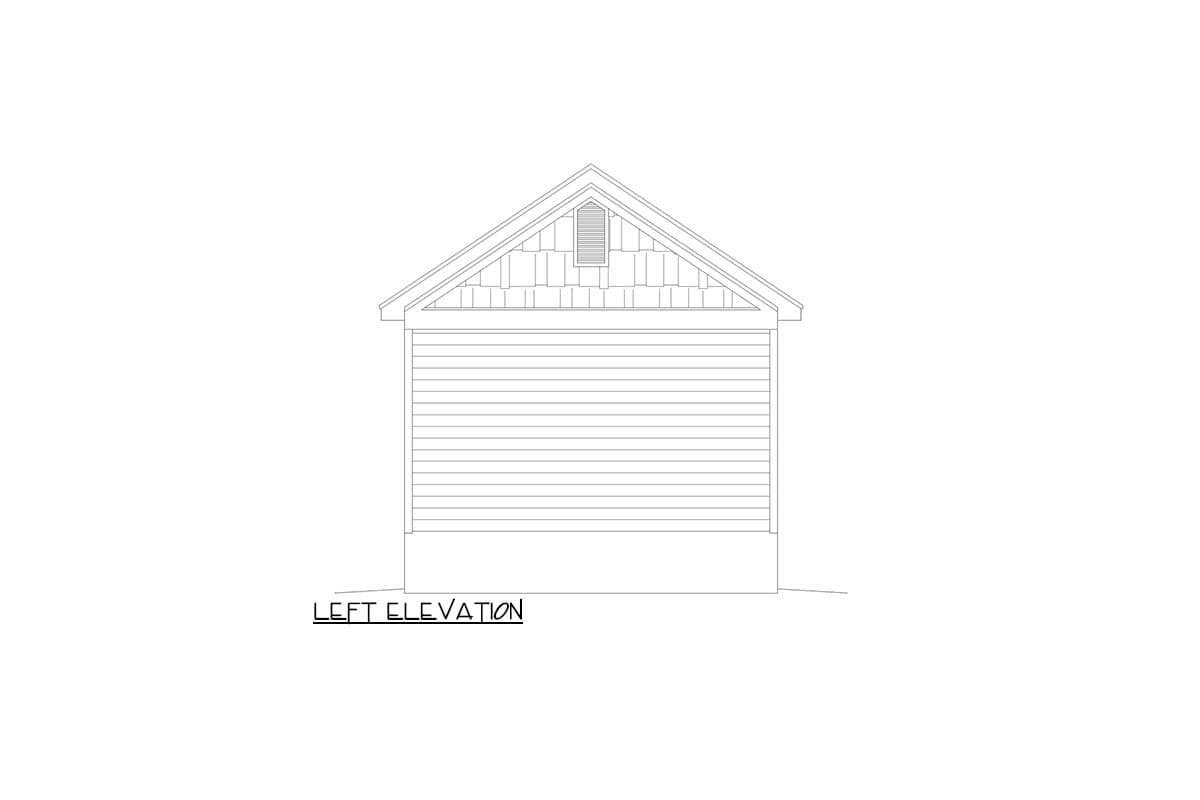

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

273 sq. ft.

1st Floor

273 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

16' 0"

Max Ridge Height

16' 1"

Garage

Type

Detached

Area

367 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Special Features

Workshop

Square Footage Breakdown

Total Heated Area

273 sq. ft.

1st Floor

273 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

16' 0"

Max Ridge Height

16' 1"

Garage

Type

Detached

Area

367 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Special Features

Workshop
