Plan 39094ST

Single Garage with Breezeway

Heated S.F.
1,354
Beds
3
Baths
2
Stories
2
Cars
1

Floor Plan

Plan 39094ST

Main Level
Main Level
2nd Floor
2nd Floor

Plan 39094ST

M-F 9am-5pm EST |

1-203-761-8500

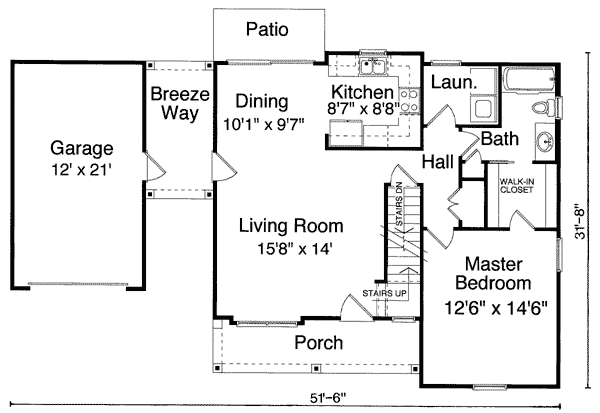

Main Level

Plan 39094ST: Single Garage with Breezeway - Floor Plan - Main Level - Country, Traditional

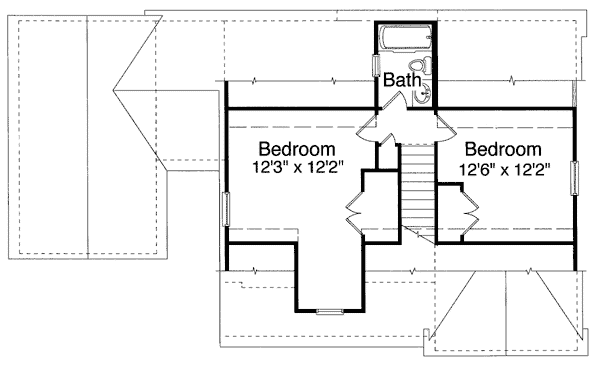

2nd Floor

Plan 39094ST: Single Garage with Breezeway - Floor Plan - 2nd Floor - Country, Traditional

Plan Details

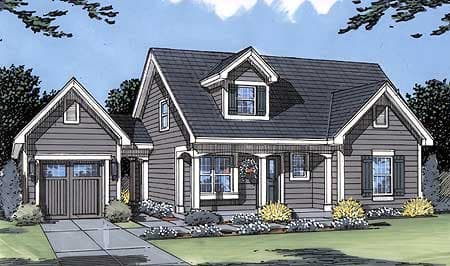

  • A siding exterior with covered porch, gabled roof and a breezeway combine to create a fashionably attractive home plan. Perfect for full time family living or a summer cottage, this one-and-a-half story design offers an open living room and dining area, private kitchen, laundry room and first floor master bedroom.

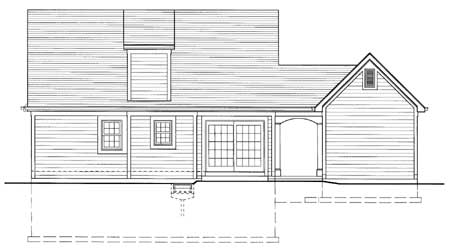

  • A large sliding door provides access from the dining area to the rear yard, offering a favorable indoor-outdoor relationship.
  • An optional access to the bath from the master bedroom adds convenience and privacy.
  • Two bedrooms and a bath are available on the second floor and a full basement offers additional square footage.

What's Included

  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,354 sq. ft.

1st Floor

873 sq. ft.

2nd Floor

481 sq. ft.

Entry

95 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

51' 6"

Depth

31' 8"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

253 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Country

Traditional

Special Features

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,354 sq. ft.

1st Floor

873 sq. ft.

2nd Floor

481 sq. ft.

Entry

95 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

51' 6"

Depth

31' 8"

Max Ridge Height

23' 0"

Garage

Type

Attached

Area

253 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Country

Traditional

Special Features

Master Suite - 1st Floor
