Plan 82242KA

Single-Level-Living Home Plan with Large Attic Storage

Heated S.F.
1,122
Beds
1
Baths
1.5
Stories
1
Cars
2

Floor Plan

Plan 82242KA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 82242KA

M-F 9am-5pm EST |

1-203-761-8500

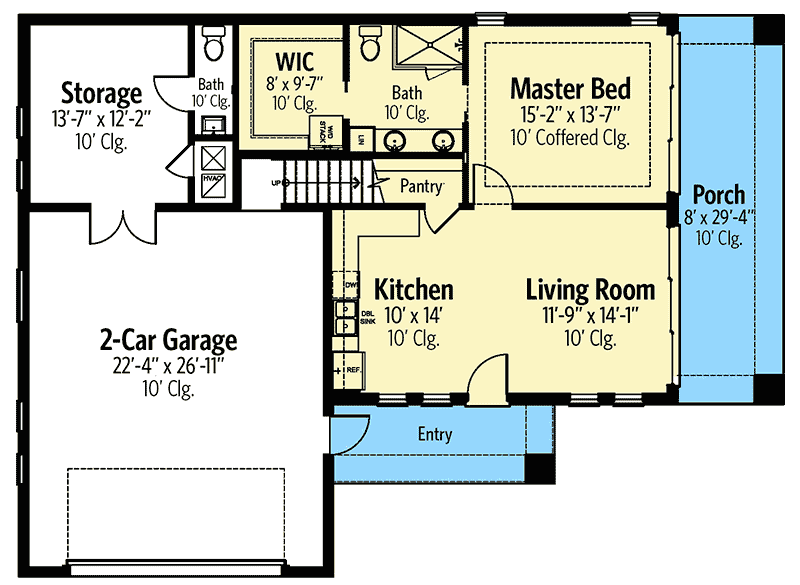

Main Level

Plan 82242KA: Single-Level-Living Home Plan with Large Attic Storage - Floor Plan - Main Level - Southern

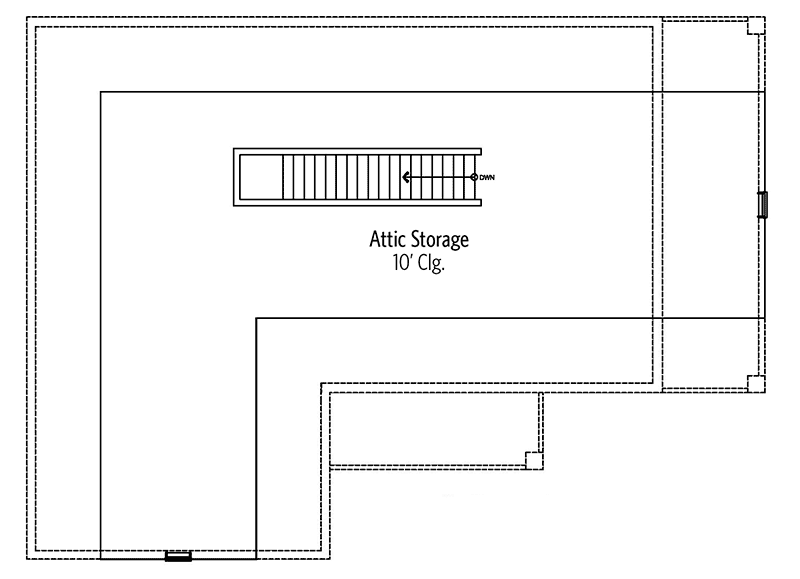

2nd Floor

Plan 82242KA: Single-Level-Living Home Plan with Large Attic Storage - Floor Plan - 2nd Floor - Southern

Plan Details

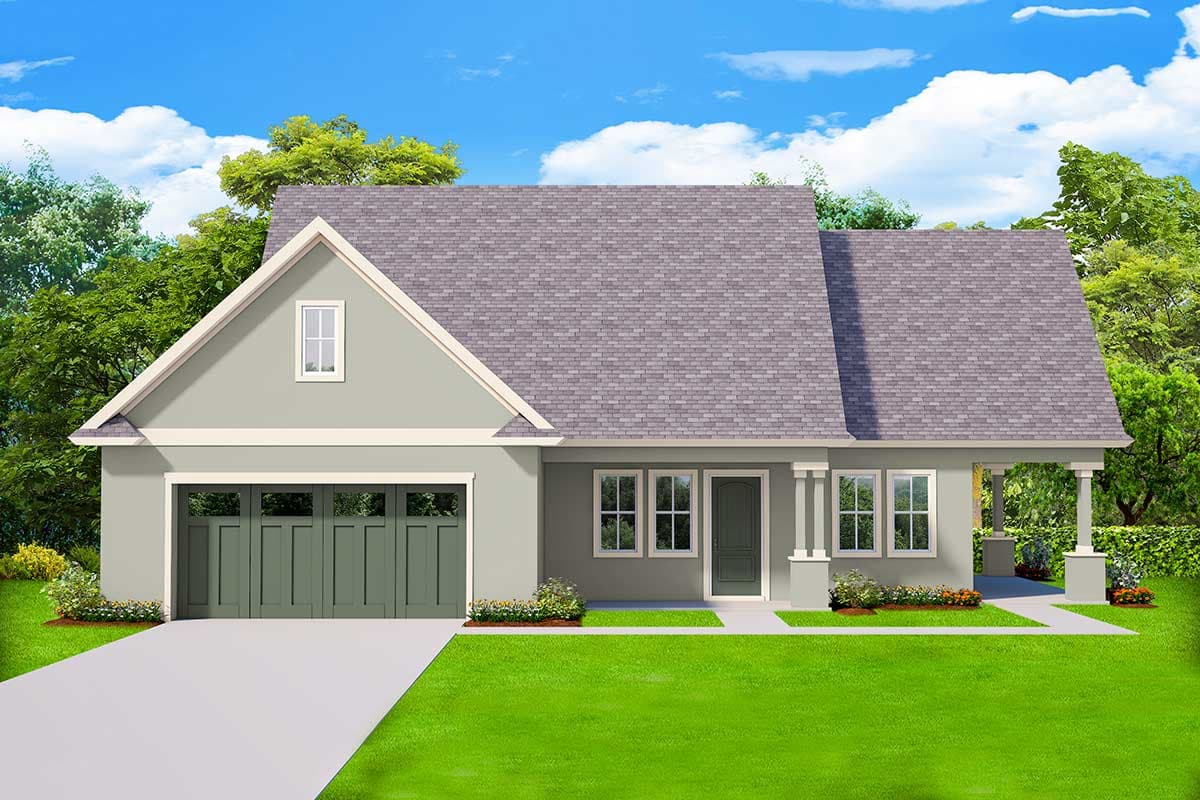

  • This inviting cottage house plan features simple lines, covered front and side porches, and a 2-car garage.
  • An open kitchen and living area offer versatility and charming simplicity.
  • The master suite offers an appealing coffered ceiling, spacious walk-in closet, and 4-piece bath.
  • Thoughtful details like a walk-in butler’s pantry, extra storage behind the garage, and an in-closet laundry stack add convenience.

What's Included

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,122 sq. ft.

1st Floor

1,122 sq. ft.

Porch, Front

100 sq. ft.

Covered Patio

235 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

57' 8"

Depth

42' 4"

Max Ridge Height

30' 2"

Garage

Type

Attached

Area

643 sq. ft.

Count

2 Cars

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Southern

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,122 sq. ft.

1st Floor

1,122 sq. ft.

Porch, Front

100 sq. ft.

Covered Patio

235 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

57' 8"

Depth

42' 4"

Max Ridge Height

30' 2"

Garage

Type

Attached

Area

643 sq. ft.

Count

2 Cars

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Southern

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry
