Plan 3949ST
Single-Story Charmer
Heated S.F.
1,390
Beds
2-3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Stone and siding, a front porch and multiple gables decorate the exterior of this charming one floor house plan.
  • The interior offers options that include a kitchen that can accommodate a small dining area or can be designed to offer more cabinets and a larger great room. The gas, direct vent fireplace can be located in the corner or on the rear wall and a bedroom that can be modified to become a library.
  • The standard 8' ceiling height slopes to an 11' height through the great room.
  • The master bedroom enjoys a raised center ceiling and a private bath.
  • This delightful home is designed with an unfinished walk-out basement that can be decorated to provide additional living space.
  • Related Plans: Get an alternate exterior with house plans 3913ST and 3983ST.
What's Included
  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Single-Story Charmer

  • 1,390

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

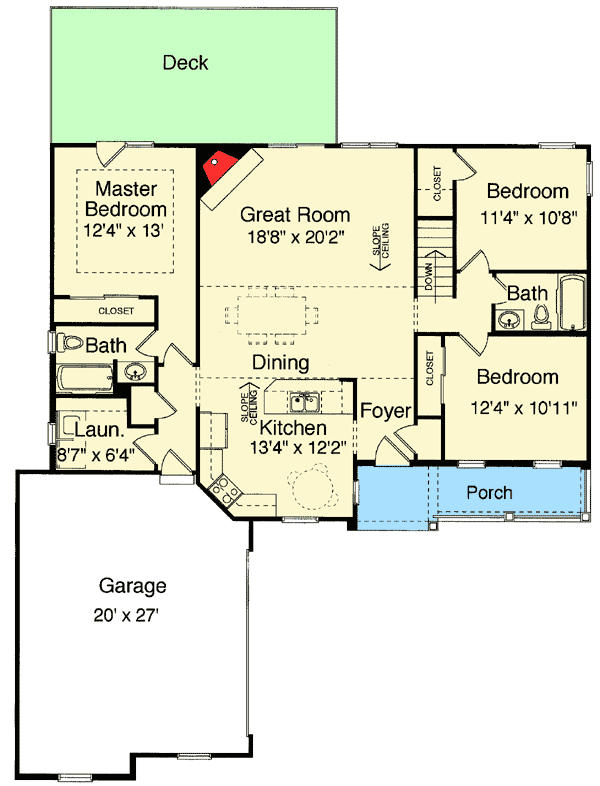

Floor Plan

  • Main Level

  • Optional

Plan Details

Square Footage Breakdown

  • Total: 1,390 sq. ft.
  • 1st Floor: 1,390 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 55' 8"
  • Max ridge height: 18' 2"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 550 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
