Plan 72102DA

Single-Story Country House Plan with Split-Bedrooms - 1668 Sq Ft

Heated S.F.
1,668
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 72102DA

Main Level
Main Level
Basement Stairs Location
Basement Stairs Location

Plan 72102DA

M-F 9am-5pm EST |

1-203-761-8500

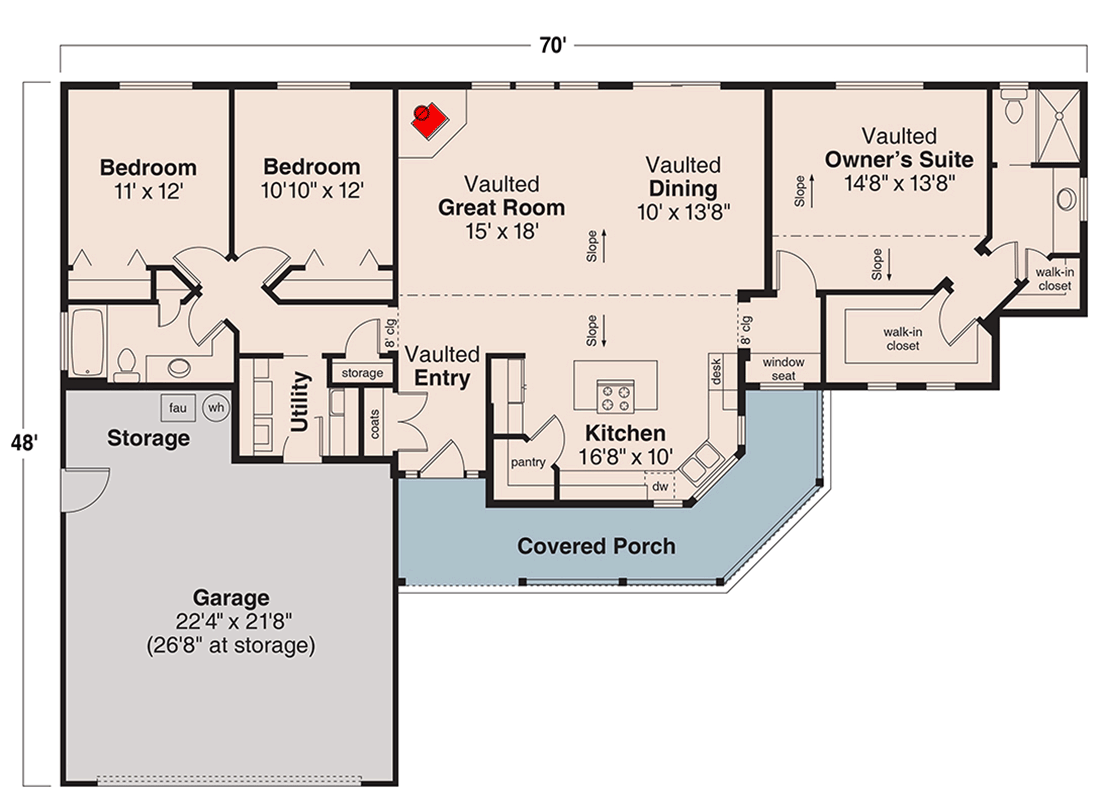

Main Level

Plan 72102DA: Single-Story Country House Plan with Split-Bedrooms - 1668 Sq Ft - Floor Plan - Main Level - Country

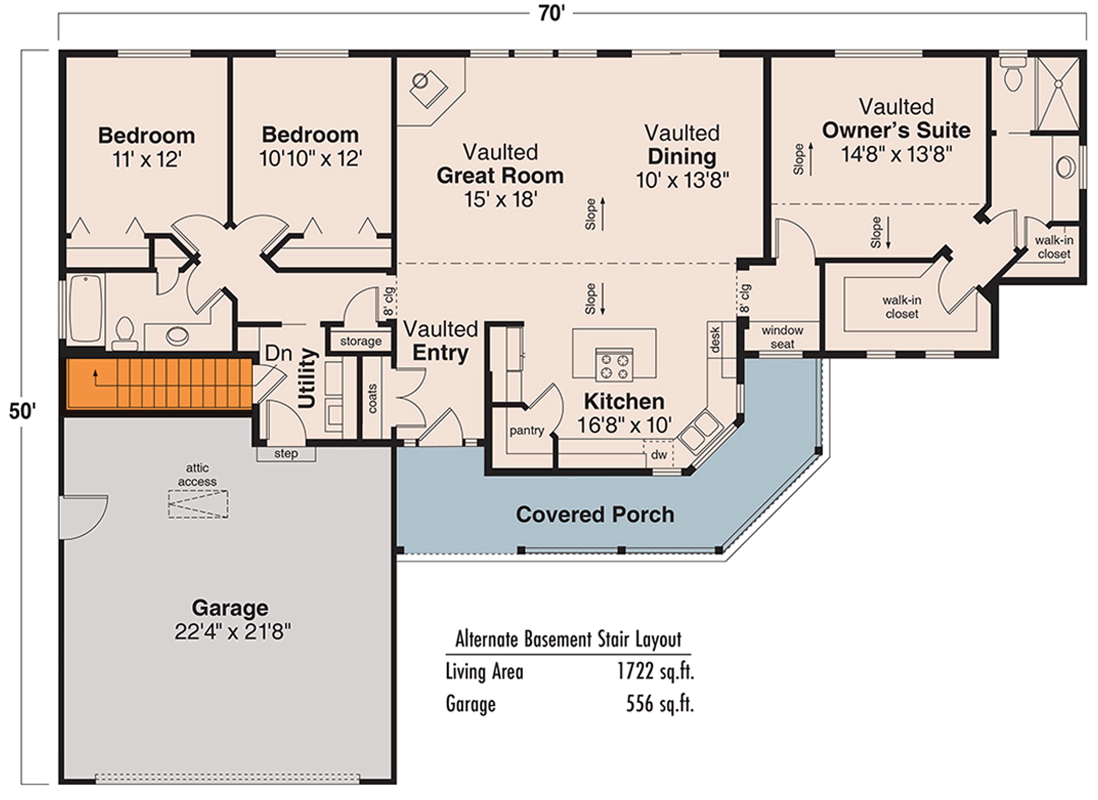

Basement Stairs Location

Plan 72102DA: Single-Story Country House Plan with Split-Bedrooms - 1668 Sq Ft - Floor Plan - Basement Stairs Location - Country

Plan Details

  • Twin dormers and a wide front porch give a welcoming look to this single-level ranch-style home with a vaulted great room at its core.
  • The front facade recedes in stair step fashion, with the garage closest to the street. The front porch is stepped back, the master bedroom is further back, and the master bathroom is yet another step removed. Posts and rails rim the porch, spanning the front and wrapping around to the right.
  • Natural light washes into the vaulted entry from a number of sources. Sidelights flank the front door, which has a half-round window near the top. More light spills down through the overhead dormer.
  • Daylight from the second dormer brightens the kitchen, which is totally open to the bright and spacious vaulted great room. Standing in the kitchen, you get the sense of being at the center of everything.
  • Working at the range, you can gaze across the room and out through wide windows to keep track of activities inside or out, while the view from the kitchen sink encompasses the front porch and street. Other notable features include a large walk-in pantry, and a phone center with plenty of shelves above.
  • In the great room, recessed, arch-topped display shelves rim the upper edges of the side walls, and a wood stove radiates winter warmth from a corner by the windows.
  • Just outside the master suite, a window seat nestles into a semi-private nook. Inside, the suite's amenities include a vaulted ceiling, recessed arch-topped display shelf, roomy walk-in closet, vaulted bathroom, and additional storage.
  • A utility room, fully equipped with a deep sink and folding counter, links the garage to the house.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

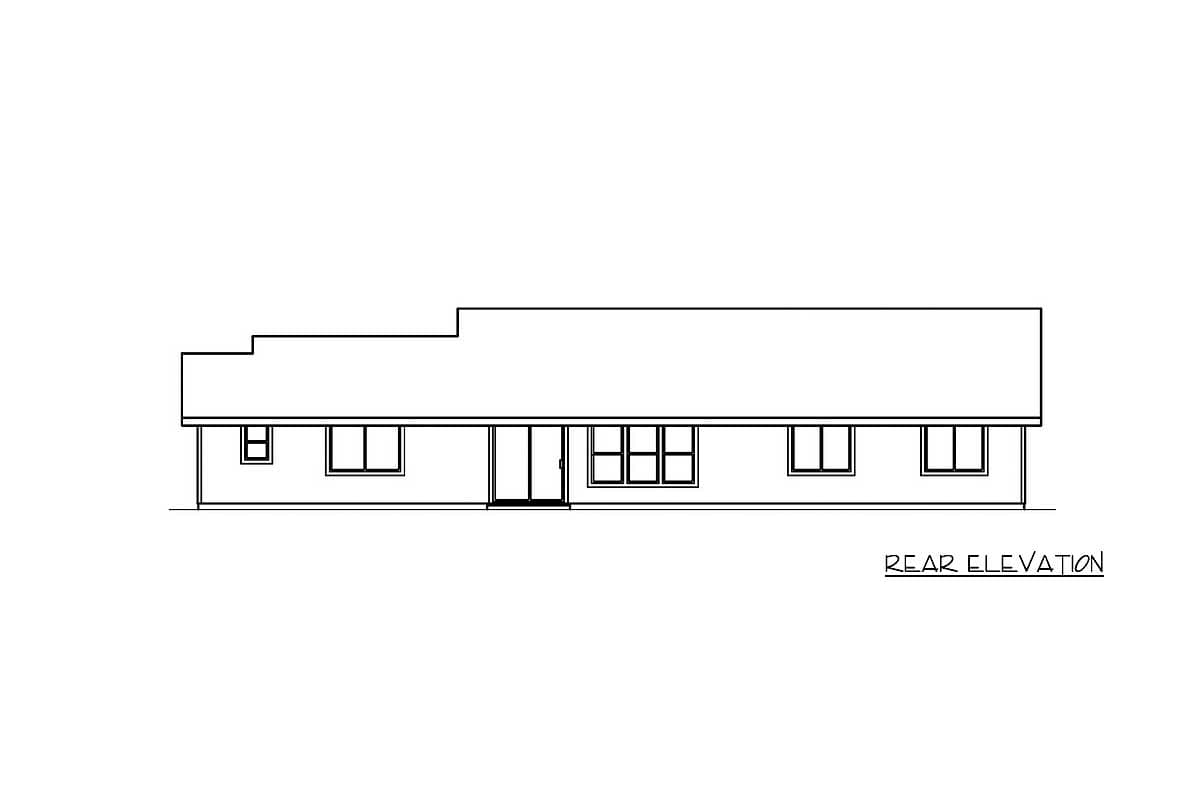

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,668 sq. ft.

1st Floor

1,668 sq. ft.

Porch, Front

185 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

70' 0"

Depth

48' 0"

Max Ridge Height

17' 0"

Garage

Type

Attached

Area

564 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Country

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,668 sq. ft.

1st Floor

1,668 sq. ft.

Porch, Front

185 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

70' 0"

Depth

48' 0"

Max Ridge Height

17' 0"

Garage

Type

Attached

Area

564 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Country

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
