Plan 180011VNW

Single Story Craftsman House Plan with 3-Bedrooms - 1776 Sq Ft

Heated S.F.
1,776
Beds
2 - 3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 180011VNW

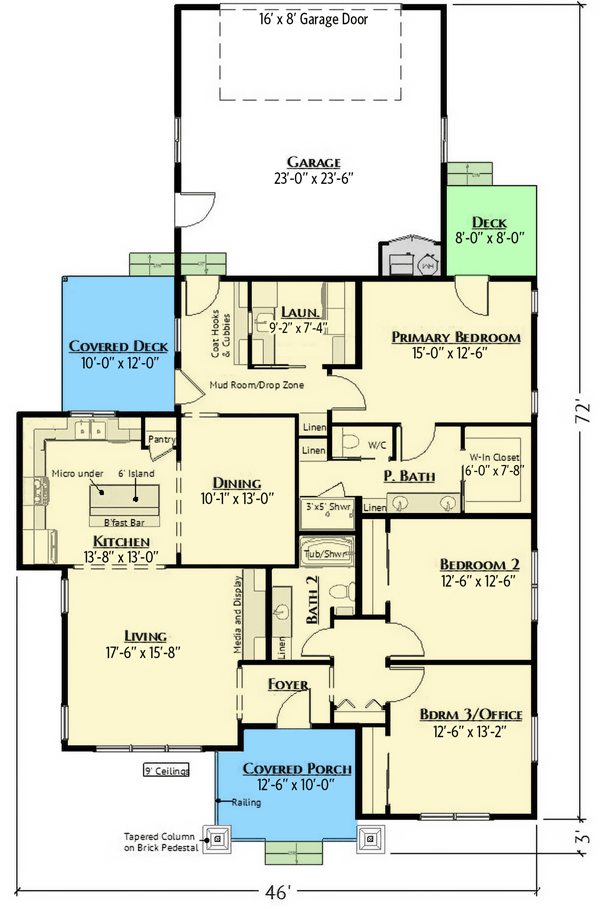

Main Level
Main Level

Plan 180011VNW

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 180011VNW: Single Story Craftsman House Plan with 3-Bedrooms - 1776 Sq Ft - Floor Plan - Main Level - Craftsman, Northwest, Traditional

Plan Details

  • Welcome to this charming 1,776 sq. ft. single-level Craftsman-style home, thoughtfully designed for comfort and timeless appeal. With 9-foot ceilings throughout, this home offers an open and airy ambiance.
  • The heart of the home is the island kitchen, perfect for entertaining, which seamlessly flows into the formal dining room and spacious living room. The living room features a built-in media and display cabinet, adding character and functionality. A formal foyer welcomes you with style and sets the tone for the rest of the home.
  • The home boasts three bedrooms and two baths, including a luxurious primary suite. The primary bedroom includes a private deck, while the en-suite bathroom offers dual sinks, a 3' x 5' walk-in shower, a private water closet, and a spacious walk-in closet. The second bath features a convenient tub/shower combination.
  • Additional highlights include a laundry room with a sink and cabinetry for storage, and a mudroom complete with coat hooks and cubbies, providing a practical drop zone for everyday living. The mudroom offer access to a covered deck, visible from and convenient to the kitchen, ideal for outdoor dining or relaxing.

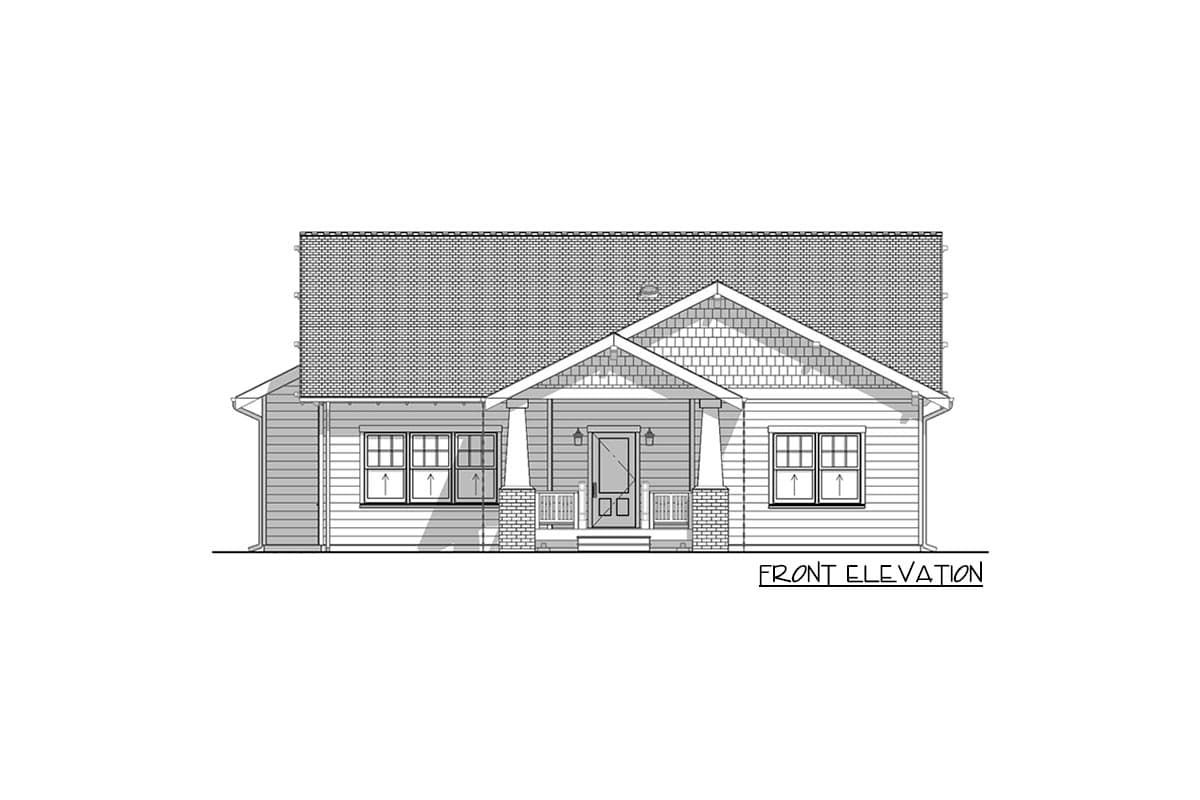

  • The Craftsman-style front porch, with its signature tapered columns on brick pedestals and elegant porch railing, creates a warm and inviting entrance. Completing the home is an attached two-car garage, ensuring plenty of parking and storage space.
  • This home beautifully blends classic Craftsman design with modern conveniences, making it the perfect retreat for everyday living.


What's Included

  • Cover Sheet
  • Exterior Elevations
  • Floor Plan(s)
  • Foundation Plan
  • Wall Framing and Floor Framing Plans
  • Roof Plans
  • Building Sections
  • Electrical Layout Plans
  • Misc. Construction Details, Information and Notes

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,776 sq. ft.

1st Floor

1,776 sq. ft.

Porch, Front

125 sq. ft.

Porch, Rear

120 sq. ft.

Deck

64 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

75' 0"

Max Ridge Height

20' 8"

Garage

Type

Attached

Area

576 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Living Room

Flat

9' 0''

Kitchen

Flat

9' 0''

Dining Room

Flat

9' 0''

Master Bedroom

Flat

9' 0''

Master Bath

Flat

9' 0''

Master WIC

Flat

9' 0''

Bedroom 2

Flat

9' 0''

Bedroom 3

Flat

9' 0''

Bath 2

Flat

9' 0''

Laundry Room

Flat

9' 0''

Mudroom

Flat

9' 0''

Foyer

Flat

9' 0''

Garage

Flat

10' 6''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Traditional

Special Features

Bedrooms - Split

Flex Room

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery
