Single-Story House Plan with 3-Car Garage

Plan 62434DJ

  • 2,109

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

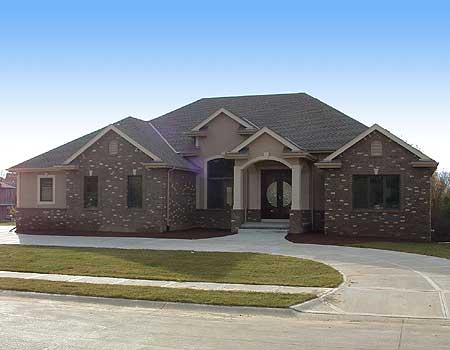

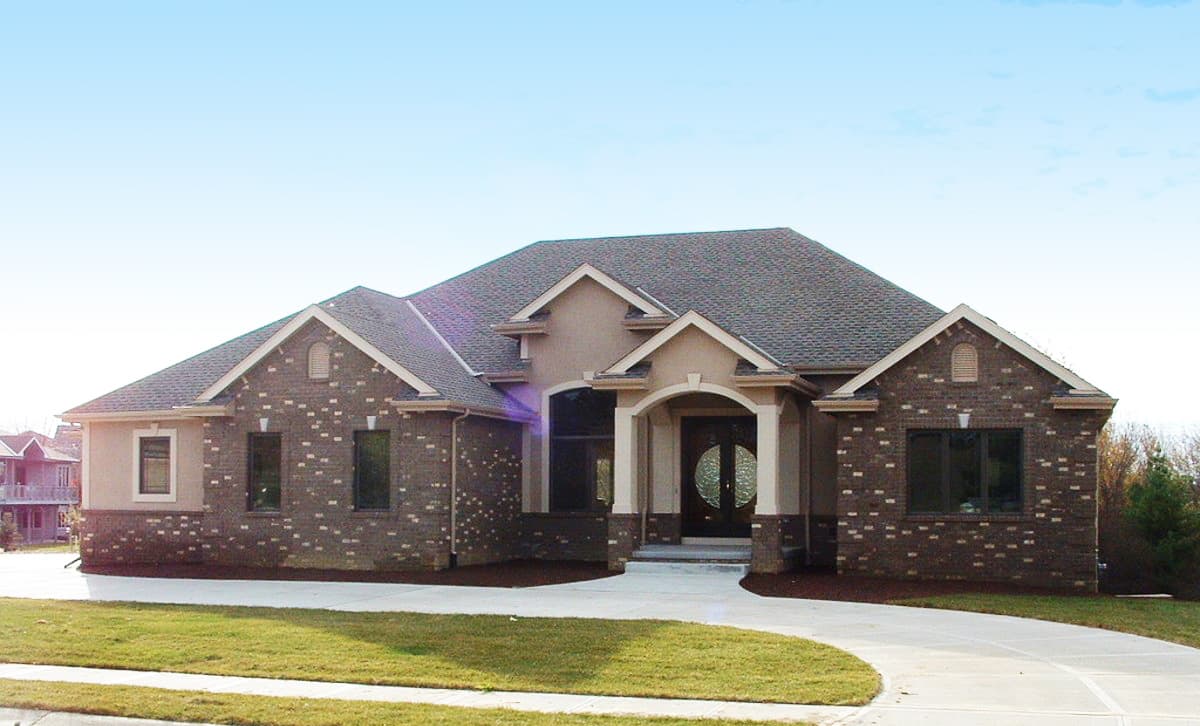

  • This is a single-story traditional house with a covered porch in front and a covered deck in the rear, off the breakfast nook.
  • There is an open floor plan, with a large kitchen and family area.
  • There is a large master suite and a 1,090 sq. ft. 3-car garage.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Single-Story House Plan with 3-Car Garage - 62434DJ floor plan - Main Level

Single-Story House Plan with 3-Car Garage

  • 2,109

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,109 sq. ft.
  • 1st Floor: 2,109 sq. ft.

Dimensions

  • Width: 80' 0"
  • Depth: 56' 0"
  • Max ridge height: 25' 4"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1090 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
