Plan 267085SPK

Single-Story Modern House Plan with Split-Bedroom Layout - 1465 Sq Ft

Heated S.F.
1,465
Beds
2 - 3
Baths
2
Stories
1
Cars
2

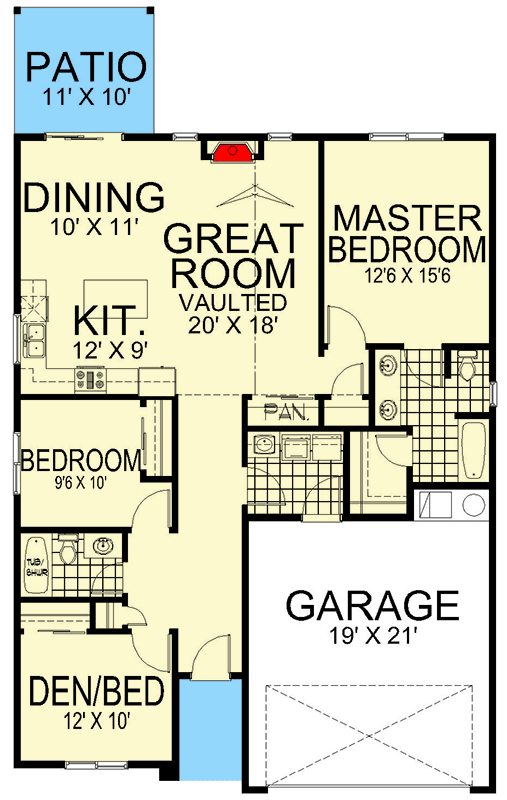

Floor Plan

Plan 267085SPK

Main Level
Main Level

Plan 267085SPK

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 267085SPK: Single-Story Modern House Plan with Split-Bedroom Layout - 1465 Sq Ft - Floor Plan - Main Level - Mid Century Modern, Modern

Plan Details

  • This modern house plan offers you 1,465 square feet of heated living space with 2-3 beds, 2 baths and a 440 square foot 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

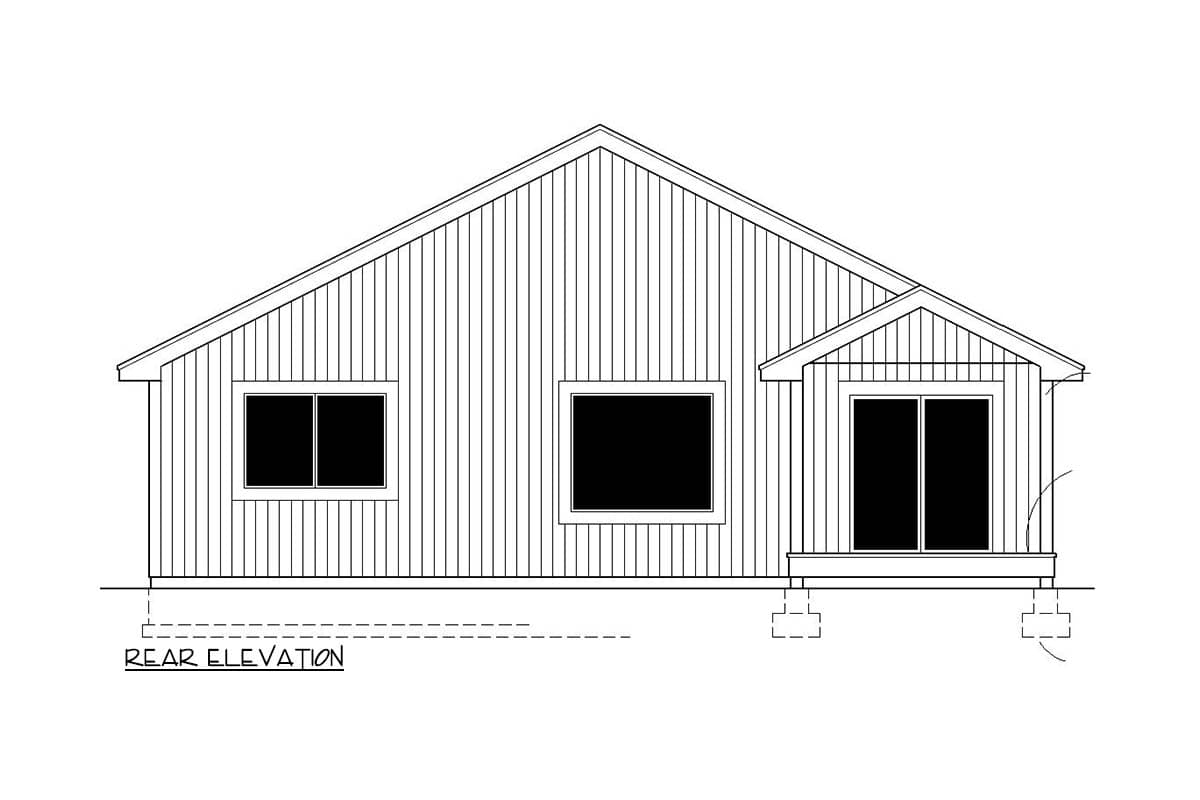

  • Exterior Elevations, Roof plan
  • Floor plan
  • Foundation plan
  • Typical details, building section
  • Notes and specifications
View Sample Plan

What's Not Included

  • Electrical Plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,465 sq. ft.

1st Floor

1,465 sq. ft.

Porch, Rear

110 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

52' 0"

Max Ridge Height

17' 2"

Garage

Type

Attached

Area

440 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

3 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Mid Century Modern

Modern

Special Features

Bedrooms - Split

Flex Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
