Plan 51991HZ

Single-Story Multi-Family Farmhouse Plan with 2-Bed Units - 1000 Sq Ft Per Unit

Heated S.F.
2,000
Units
2
Width
Depth

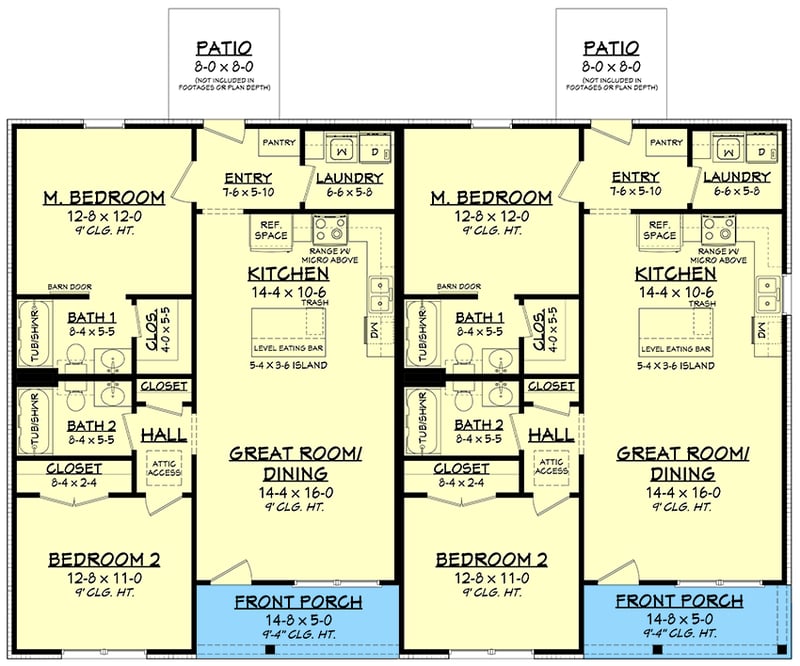

Floor Plan

Plan 51991HZ

Main Level
Main Level

Plan 51991HZ

M-F 9am-5pm EST |

1-203-761-8500

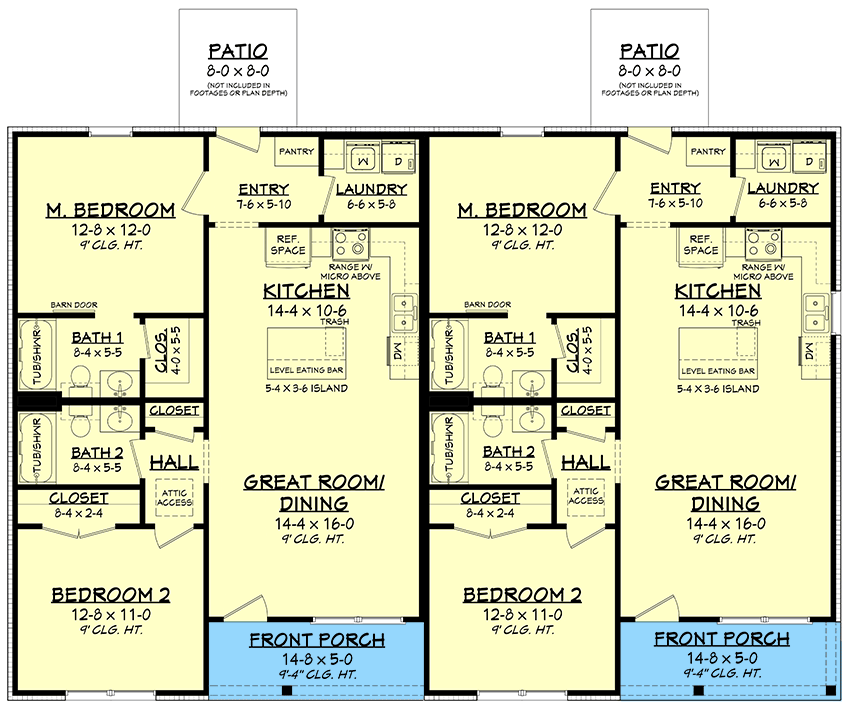

Main Level

Plan 51991HZ: Single-Story Multi-Family Farmhouse Plan with 2-Bed Units - 1000 Sq Ft Per Unit - Floor Plan - Main Level - Country, Farmhouse, Traditional

Plan Details

  • Experience comfortable living in this 2,000 sq. ft. single-story multi-family farmhouse, featuring two units each with 1,000 sq. ft., 2 bedrooms, and 2 bathrooms.
  • Enter through a welcoming front porch into an open-concept layout that seamlessly connects the great room to the kitchen, perfect for modern living.
  • Each unit's kitchen includes a functional island and flows into the dining area, offering a cohesive space for gatherings.
  • The master bedroom provides a private sanctuary with an ensuite bathroom, complemented by a secondary bedroom ideal for family or guests.
  • Unique features include vaulted ceilings and a mudroom, enhancing everyday convenience and style.
  • Enjoy idyllic outdoor living with a cozy front porch, perfect for relaxing with morning coffee.
Unit A
Heated Area
1,000Sq. Ft.
1000 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Dimensions
28'width
38'depth
Unfinished Areas
73 Sq. Ft. Porch, Front
Unit B
Heated Area
1,000Sq. Ft.
2000 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Dimensions
28'width
38'depth
Unfinished Areas
73 Sq. Ft. Porch, Front

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

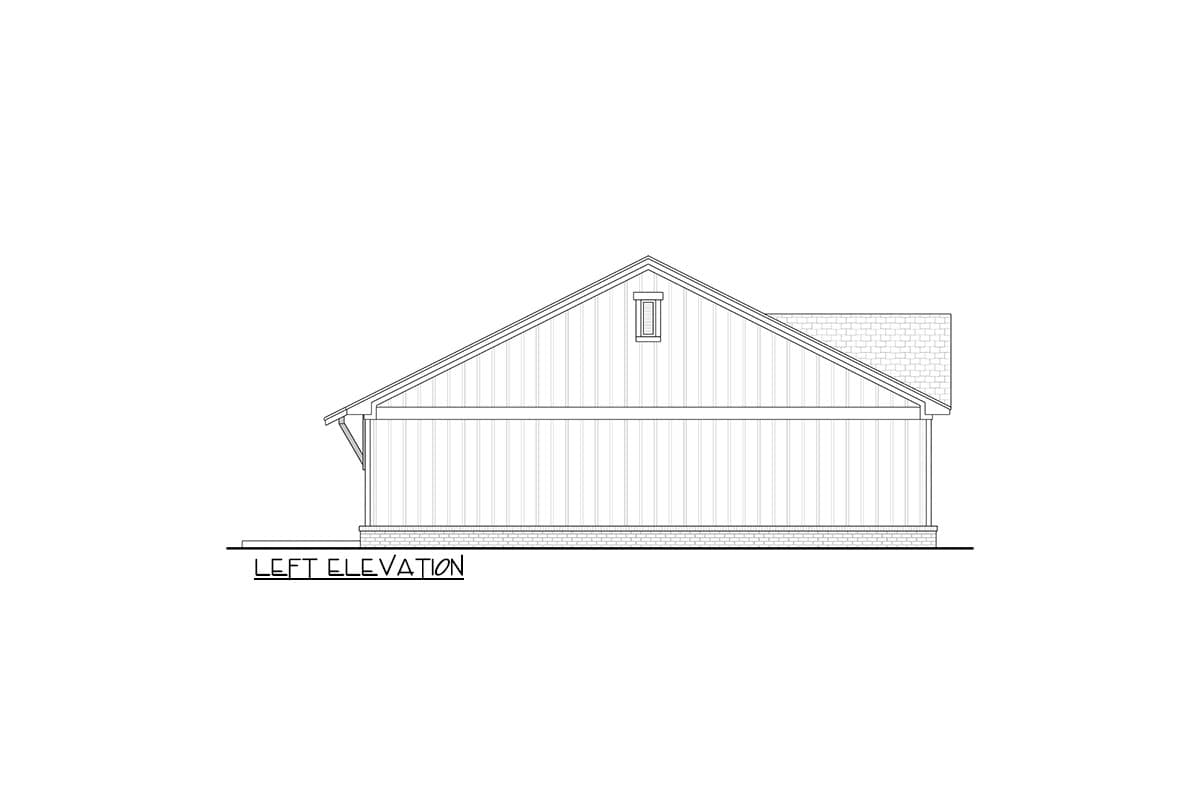

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,000 sq. ft.

1st Floor

2,000 sq. ft.

Porch, Front

146 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

56' 0"

Depth

38' 4"

Max Ridge Height

19' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,000 sq. ft.

1st Floor

2,000 sq. ft.

Porch, Front

146 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

56' 0"

Depth

38' 4"

Max Ridge Height

19' 0"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Farmhouse

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
