Sleek and Spacious 5-Bed House Plan with In-law Suite
Heated S.F.
6,236
Beds
5
Baths
6.5
Stories
2
Cars
3
What's Included
Plan Details
  • Totaling over 6,200 square feet of living space, this sleek and spacious house plan delivers 5 bedrooms, a large screened porch with an outdoor kitchen, and an in-law suite attached to the primary home by a porte-cochere.
  • Entertaining is made easy with this gourmet kitchen, which also includes a butler's pantry that leads to the dining room, and a prep kitchen across from the walk-in pantry.
  • The serene master bedroom is conveniently located on the main level, and includes a deluxe ensuite with two walk-in closets and a safe room.

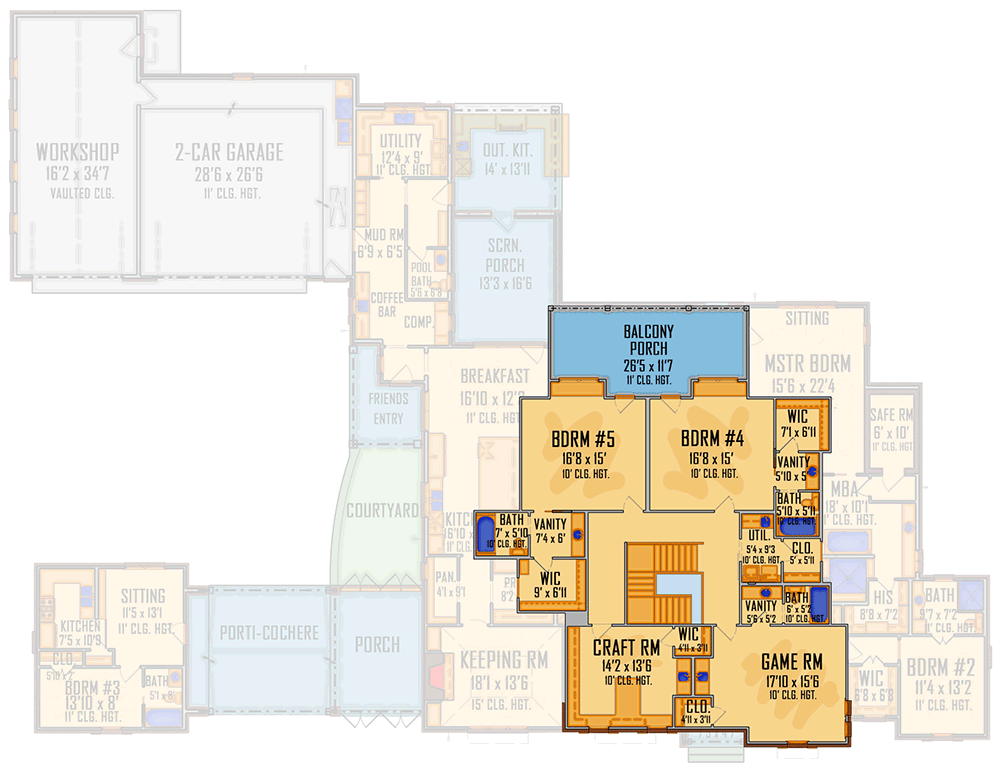

  • Two family bedrooms share the second level with a craft and game room providing a fun space for the whole family to enjoy.
  • A large workshop neighbors the 2-car garage, while built-in lockers in the mudroom provides a communal space to organize outdoor gear and personal items.
What's Included
  • Cover Sheet

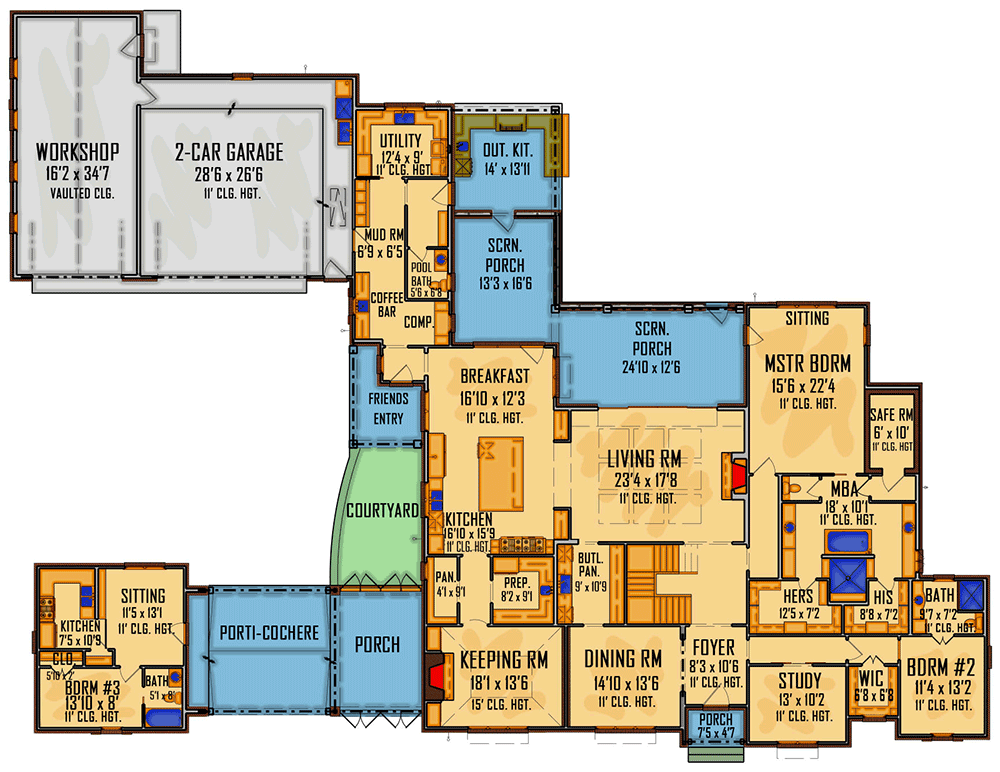

  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)

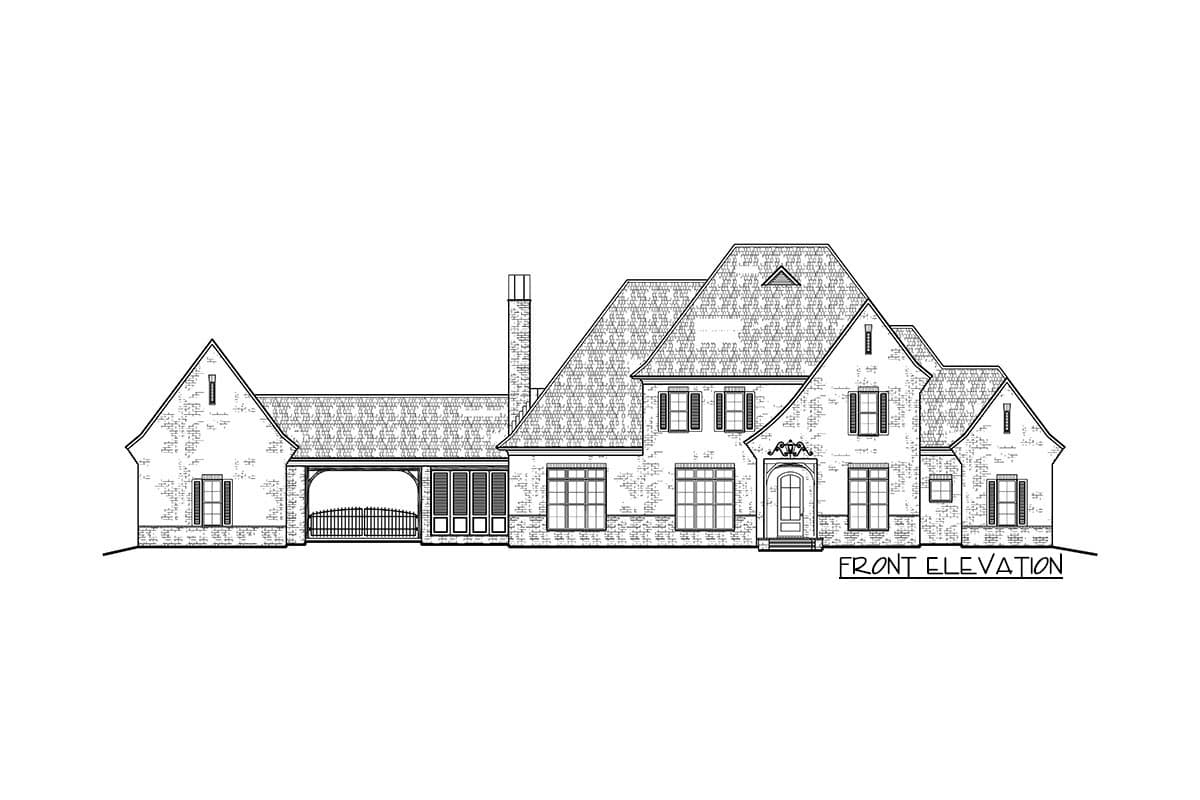

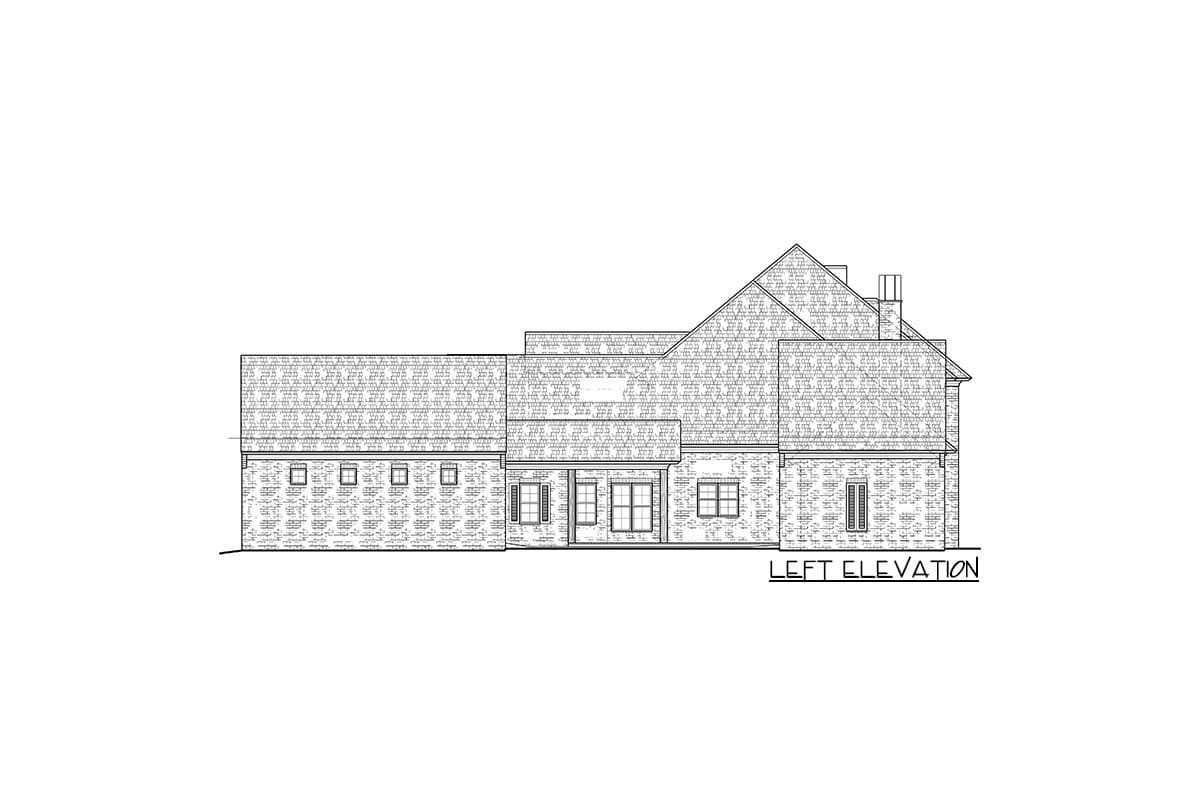

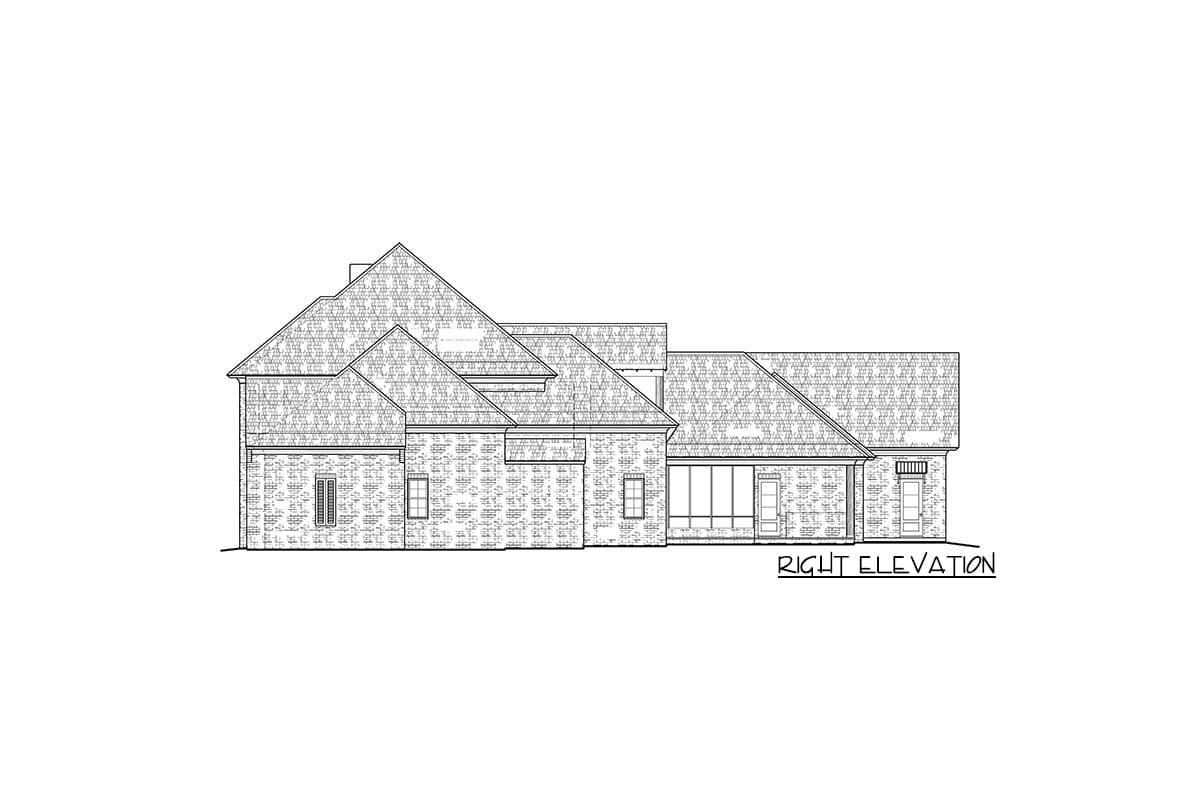

  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
