Plan 680594VR

Sleek Modern Detached Garage House Plan with Oversized Boat Bay

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
1

Floor Plan

Plan 680594VR

Main Level
Main Level

Plan 680594VR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 680594VR: Sleek Modern Detached Garage House Plan with Oversized Boat Bay - Floor Plan - Main Level - Modern

Plan Details

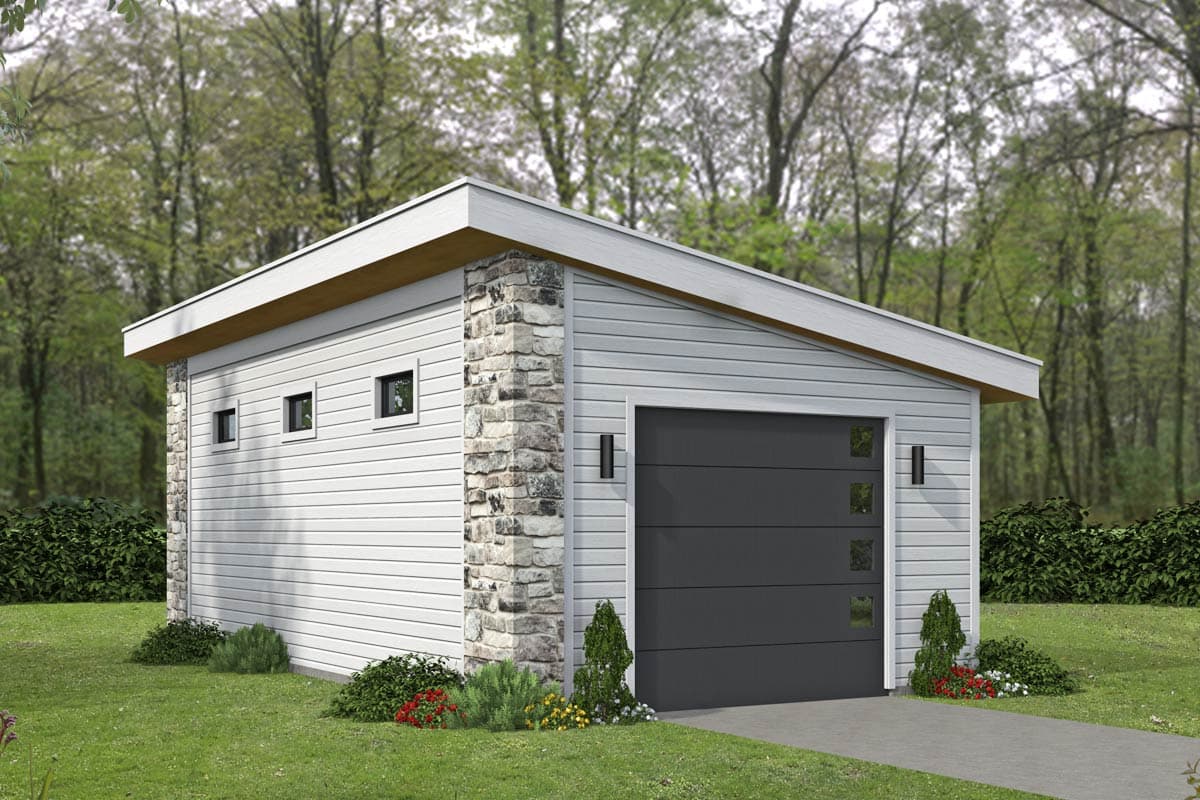

  • This sleek, contemporary detached garage offers 648 sq. ft. of dedicated space, designed specifically to house an oversized vehicle or boat, featuring a modern aesthetic with crisp lines and stone accents.

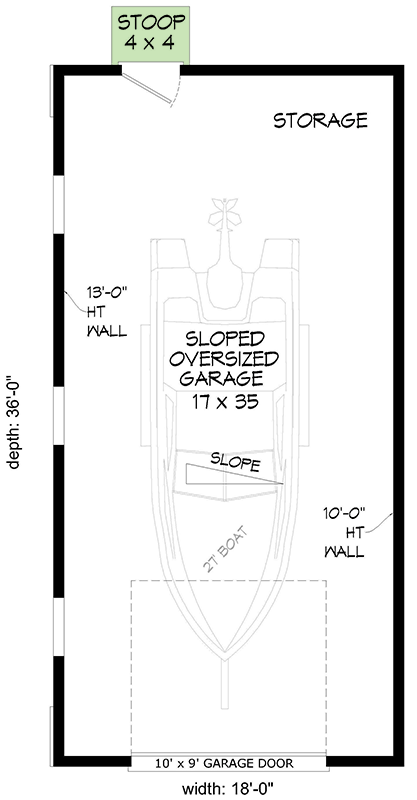

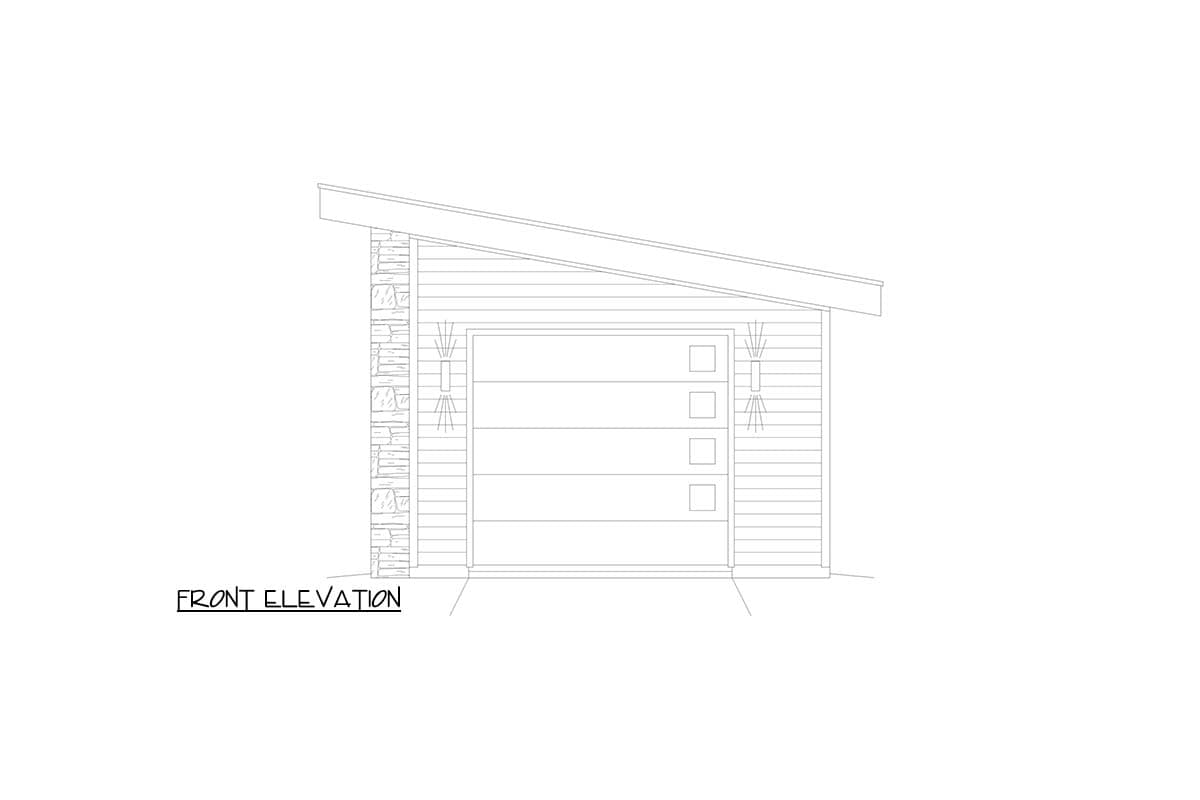

  • Upon entry through the 10' x 9' front-facing garage door, you are greeted by an expansive, oversized bay, meticulously designed to accommodate a 27-foot boat, featuring a practical sloped floor.
  • The generous 17' x 35' bay provides ample room for boat storage, while a dedicated storage area along the back wall offers convenient space for gear and equipment, ensuring an organized environment.
  • With 10-foot interior ceiling heights and varying wall heights (10' and 13'), this robust structure, built with 2x6 exterior walls, is engineered for durability and functionality, providing substantial clearance for large watercraft.

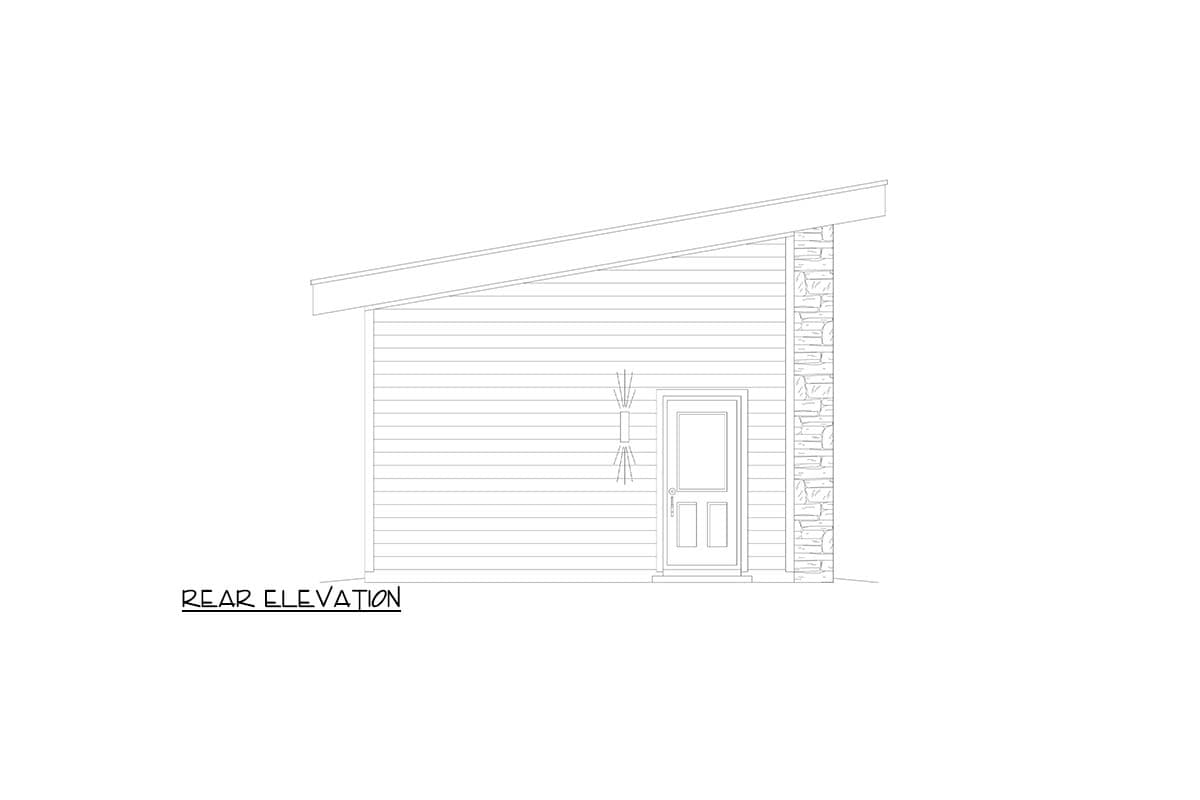

  • A small 4' x 4' stoop at the rear provides a convenient secondary access point, complementing the clean exterior lines and practical front entry.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

18' 0"

Depth

36' 0"

Max Ridge Height

14' 10"

Garage

Type

Detached

Area

648 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Modern

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

18' 0"

Depth

36' 0"

Max Ridge Height

14' 10"

Garage

Type

Detached

Area

648 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Modern
