Plan 72371DA

Slender Single-Story Bungalow

Pageloader

Slender Single-Story Bungalow

Plan 72371DA

  • 1,242

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Wide trim and deep eaves define the exterior while shingle siding in the gable ends works together with Craftsman-style windows to accentuate the timeless quality of the design.
  • On the right side of the plan, a large living-dining room offers ample space for entertaining. Situated at the rear of the house, the kitchen easily serves the living-dining area.
  • Amenities of the kitchen include a wide eating bar in the kitchen doubles as a serving station. There is also generous counter and pantry space, and large pictures windows on either side of the angles corner sink help brighten the room.
  • A recessed hallway leads to two bedrooms and a full bathroom illuminated by a skylight.
  • The master bedroom, located to the rear of the home, contains a walk-in closet, and a private bath with shower.
  • A laundry and garage complete this compact home plan that is well suited for a narrow lot.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations

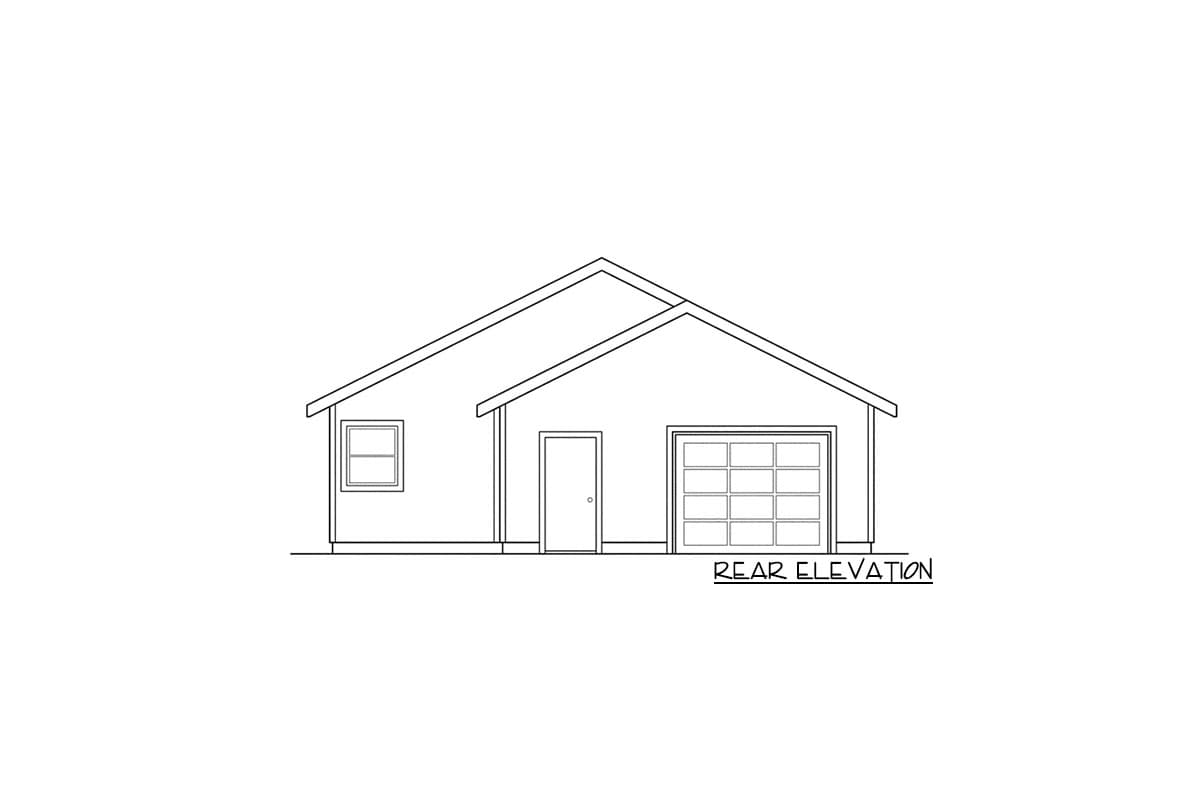

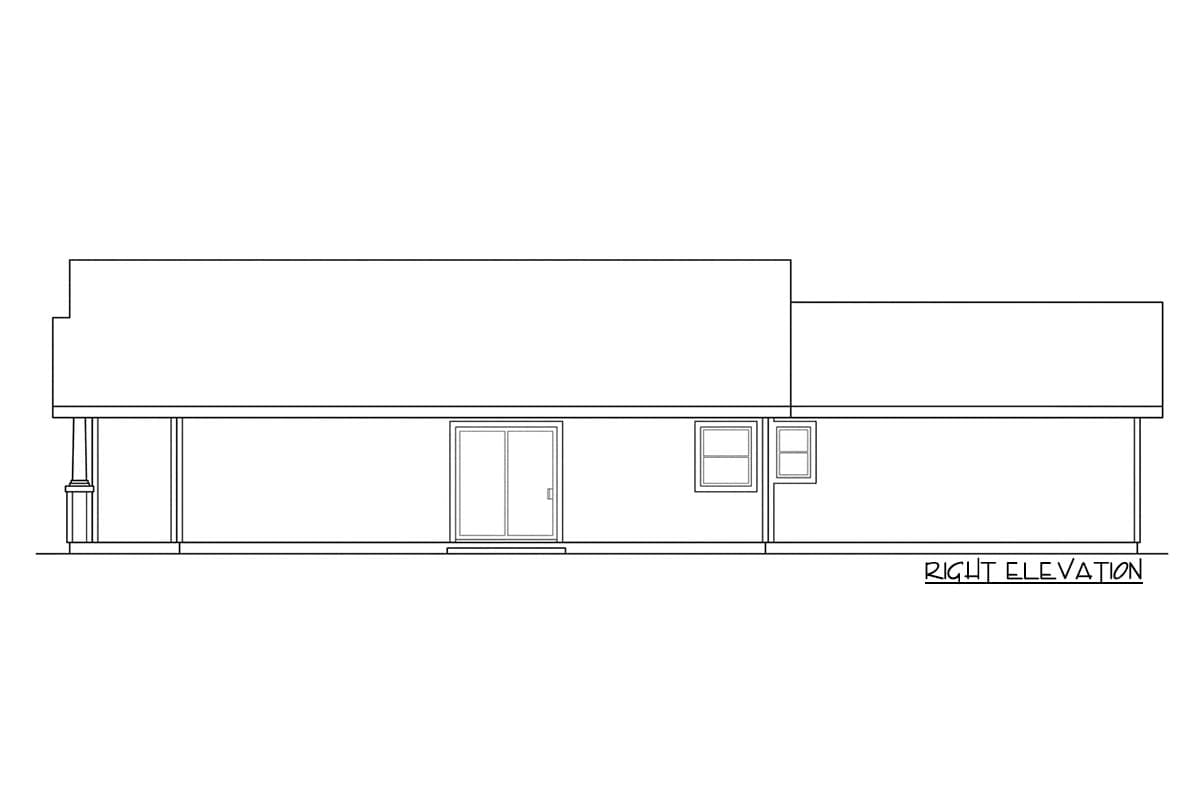

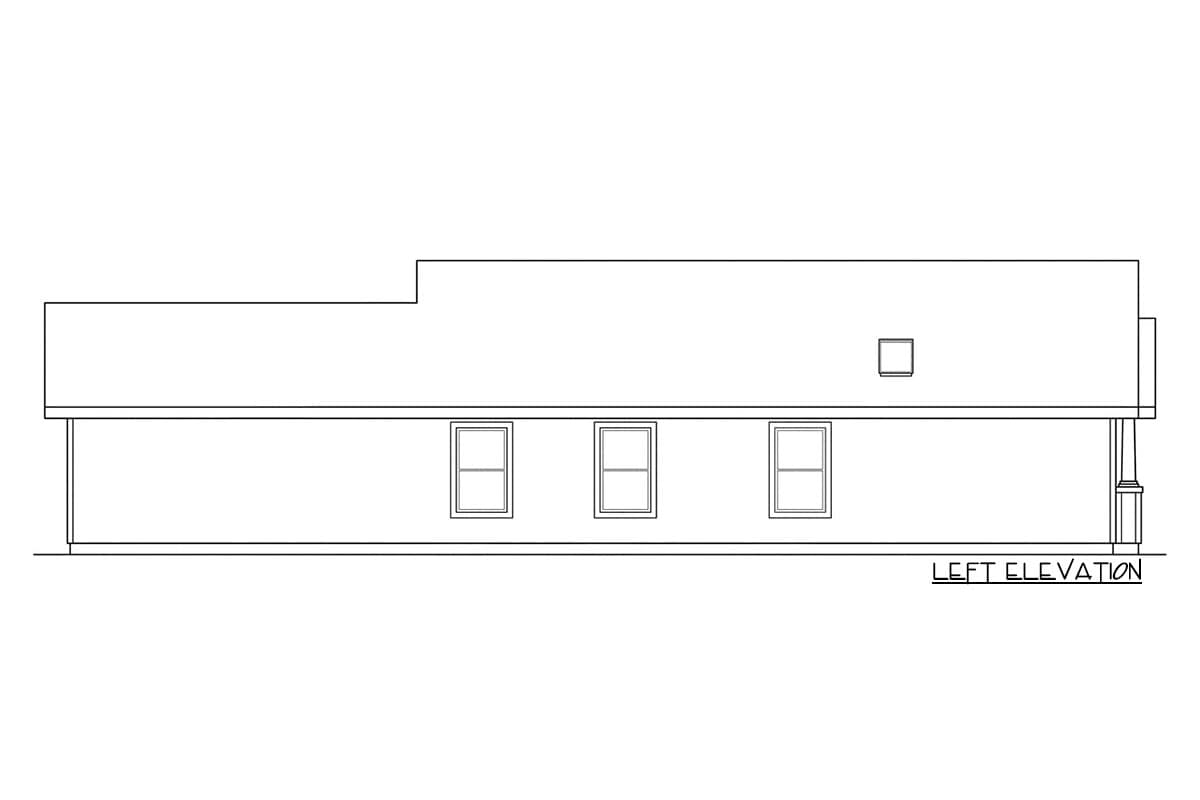

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

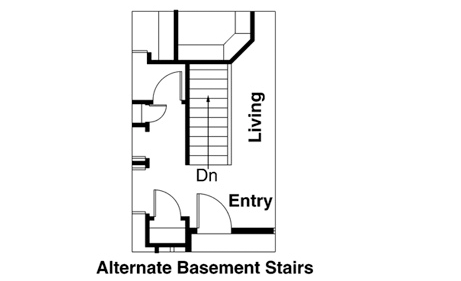

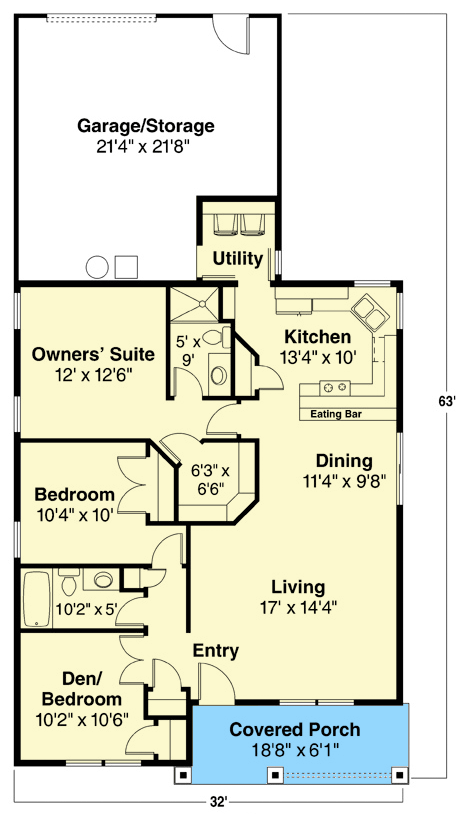

Floor Plan

Plan details



Slender Single-Story Bungalow

  • 1,242

    Heated s.f.

  • 2 - 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $610
  • PDF Light $845
  • 5 Sets $845
  • 5 Sets PLUS $945
  • 8 Sets $995
  • PDF - single-use $1,600
  • CAD $1,845
  • CAD - multi-use $2,045
  • View all purchase option online

About This Plan

  • Wide trim and deep eaves define the exterior while shingle siding in the gable ends works together with Craftsman-style windows to accentuate the timeless quality of the design.
  • On the right side of the plan, a large living-dining room offers ample space for entertaining. Situated at the rear of the house, the kitchen easily serves the living-dining area.
  • Amenities of the kitchen include a wide eating bar in the kitchen doubles as a serving station. There is also generous counter and pantry space, and large pictures windows on either side of the angles corner sink help brighten the room.
  • A recessed hallway leads to two bedrooms and a full bathroom illuminated by a skylight.
  • The master bedroom, located to the rear of the home, contains a walk-in closet, and a private bath with shower.
  • A laundry and garage complete this compact home plan that is well suited for a narrow lot.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,242 sq. ft.
  • 1st Floor: 1,242 sq. ft.
  • Porch, Front: 104 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 63' 0"
  • Max ridge height: 17' 8"

Garage

  • Type: Attached
  • Area: 435 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
