Small 2-Bed House Plan with Vaulted Living Area

Heated S.F.
933
Beds
2
Baths
1
Stories
1
Cars
2

Floor Plan

Plan 72916DA

Main Level
Main Level

Plan 72916DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

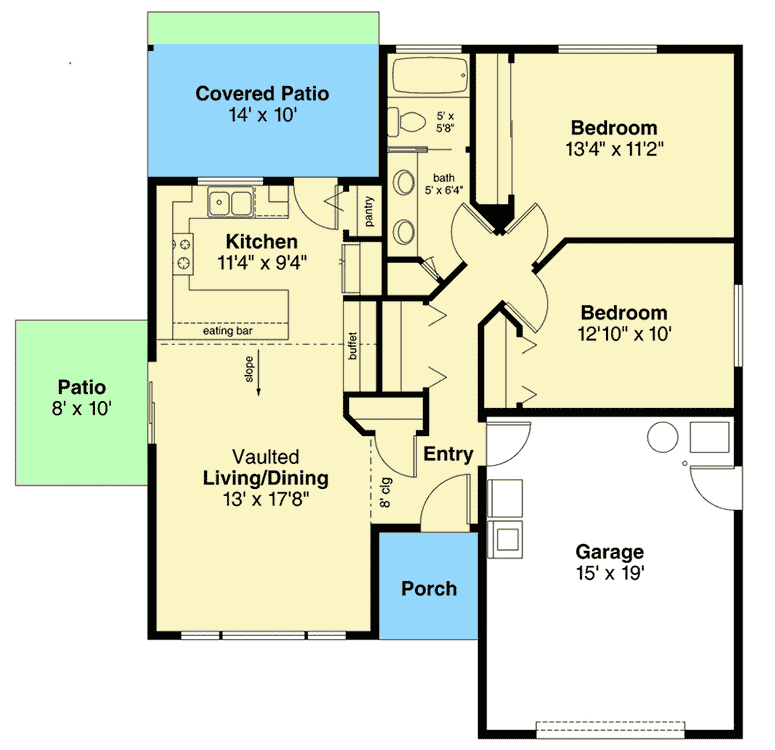

Plan 72916DA: Small 2-Bed House Plan with Vaulted Living Area - Floor Plan - Main Level - Cottage, Country, Northwest

Plan Details

  • This small house plan packs a lot of value inside, giving you 2-bedrooms, an integrated garage and a vaulted living space.
  • The vaulted living/dining room has a spacious feel and nice wide windows to let in natural light.
  • The kitchen looks out to the living area over a peninsula eating bar and has a buffet counter perfect for entertaining guests.
  • Two bedrooms are located on the other side of the house near a full bathroom with double vanity and private bath.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

933 sq. ft.

1st Floor

933 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

42' 0"

Max Ridge Height

18' 6"

Garage

Type

Attached

Area

308 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Framing Type

Stick And Truss

Architectural Style

Cottage

Country

Northwest

Special Features

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

933 sq. ft.

1st Floor

933 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

42' 0"

Max Ridge Height

18' 6"

Garage

Type

Attached

Area

308 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Framing Type

Stick And Truss

Architectural Style

Cottage

Country

Northwest

Special Features

Master Suite - 1st Floor
