Plan 59794ND

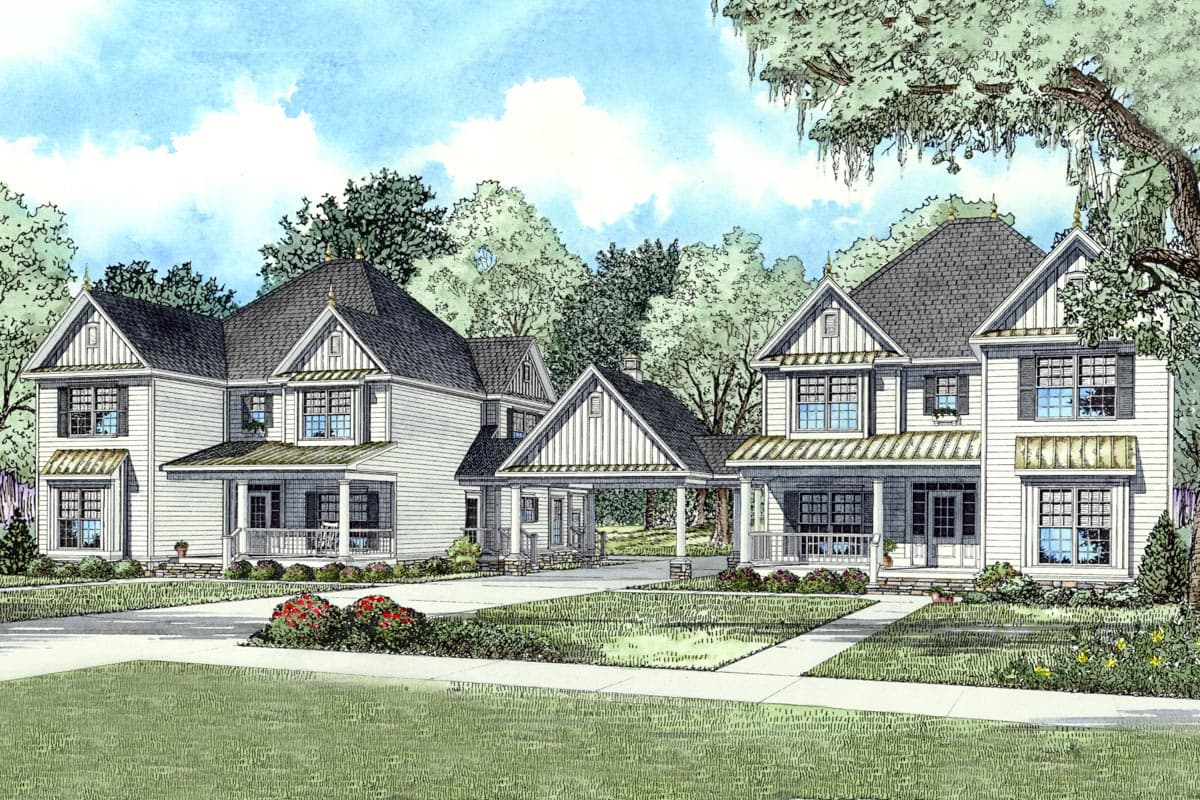

Sophisticated Multi-Family Home Plan with Shared Porte Cochere

Heated S.F.
6,092
Units
2
Width
Depth

Floor Plan

Plan 59794ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59794ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 59794ND: Sophisticated Multi-Family Home Plan with Shared Porte Cochere - Floor Plan - Main Level - Traditional, Victorian

2nd Floor

Plan 59794ND: Sophisticated Multi-Family Home Plan with Shared Porte Cochere - Floor Plan - 2nd Floor - Traditional, Victorian

Plan Details

  • Each unit of this duplex house plan has 5 beds, 3.5 baths and 3,046 square feet of heated living (1,803 square feet on the main floor and 1,243 square feet on the second floor) and a 2-car 538 square foot garage.
  • The homes are tied together by a central porte-cochere. Pass through it and you get to the courtyard garages in back.
  • Enjoy formal meals in your dining room and casual ones in the breakfast nook or at the peninsula in the kitchen.
Unit A
Heated Area
3,046Sq. Ft.
1803 Sq. Ft. 1st
1243 Sq. Ft. 2nd
Beds
5Beds
Baths
3Full Baths
1Half Bath
Cars
Attached
538 Sq. Ft.
Dimensions
55' 8"width
83' 6"depth
35'height
Unfinished Areas
538 Sq. Ft. Garage
Unit B
Heated Area
3,046Sq. Ft.
1803 Sq. Ft. 1st
1243 Sq. Ft. 2nd
Beds
5Beds
Baths
3Full Baths
1Half Bath
Cars
Attached
538 Sq. Ft.
Dimensions
55' 2"width
83' 6"depth
35'height
Unfinished Areas
538 Sq. Ft. Garage

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

6,092 sq. ft.

1st Floor

3,606 sq. ft.

2nd Floor

2,486 sq. ft.

Deck

1,456 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

6

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

111' 4"

Depth

83' 6"

Max Ridge Height

35' 3"

Garage

Type

Attached

Area

1076 sq. ft.

Count

2, 3, or 4 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Traditional

Victorian

Special Features

Breakfast Nook

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Porte Cochere

Square Footage Breakdown

Total Heated Area

6,092 sq. ft.

1st Floor

3,606 sq. ft.

2nd Floor

2,486 sq. ft.

Deck

1,456 sq. ft.

Beds/Baths

Bedrooms

10

Full bathrooms

6

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

111' 4"

Depth

83' 6"

Max Ridge Height

35' 3"

Garage

Type

Attached

Area

1076 sq. ft.

Count

2, 3, or 4 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Traditional

Victorian

Special Features

Breakfast Nook

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Porte Cochere
