Plan 83813JW

Southern Beauty with Bonus Space

Heated S.F.
4,378
Beds
4
Baths
4.5
Stories
2
Cars
3

Floor Plan

Plan 83813JW

Main Level
Main Level
2nd Floor
2nd Floor
Bonus over garage
Bonus over garage

Plan 83813JW

M-F 9am-5pm EST |

1-203-761-8500

Main Level

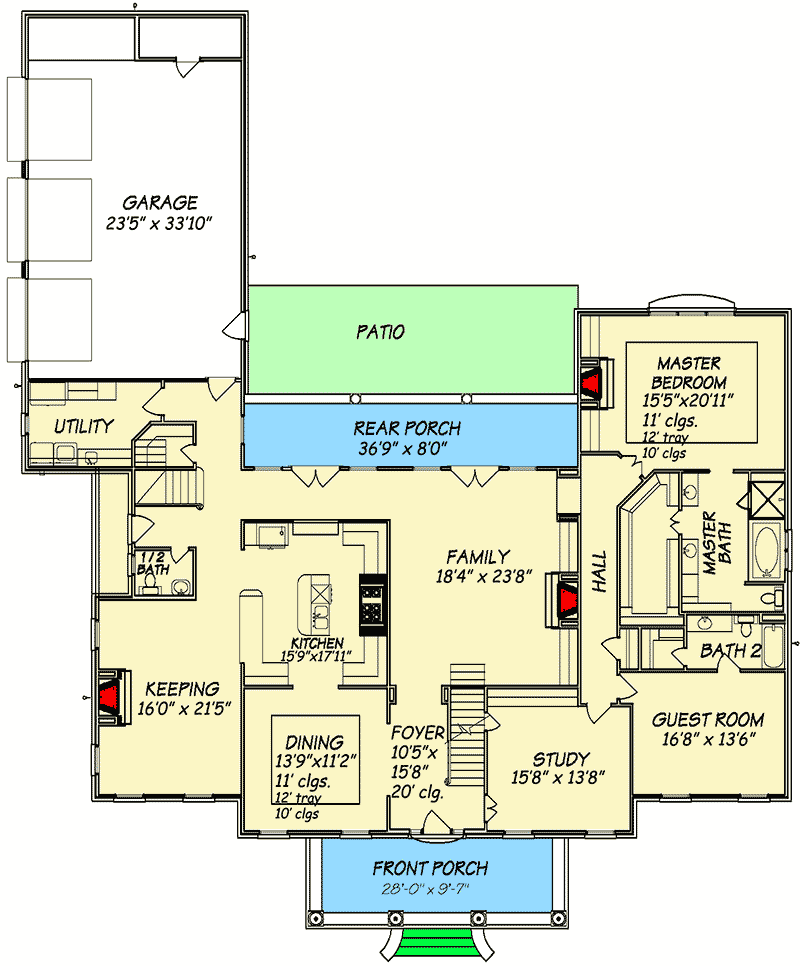

Plan 83813JW: Southern Beauty with Bonus Space - Floor Plan - Main Level - Traditional

2nd Floor

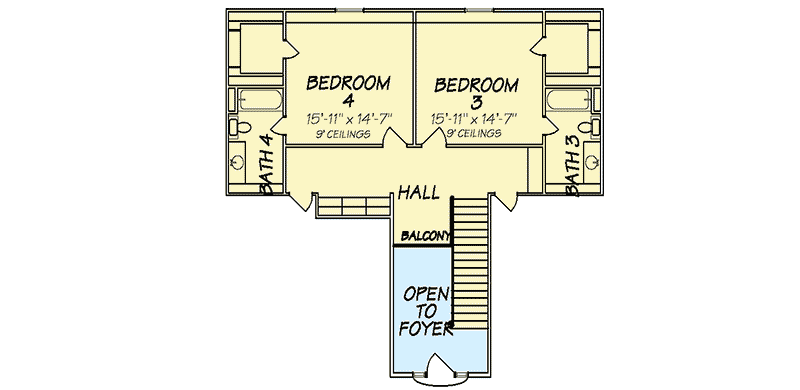

Plan 83813JW: Southern Beauty with Bonus Space - Floor Plan - 2nd Floor - Traditional

Bonus over garage

Plan 83813JW: Southern Beauty with Bonus Space - Floor Plan - Bonus over garage - Traditional

Plan Details

  • A well-planned layout is the hallmark of this Southern house plan.
  • The front-facing formal dining room lies close to the kitchen to make it easy to serve those holiday meals.
  • There's a big fireplace in both the family room and the large keeping room.
  • A quiet study has one wall lined with built-ins to keep you organized.
  • Follow the hall past the guest room to the spacious master suite that also has a fireplace flanked by built-ins.
  • The rear porch has both covered and uncovered sections.
  • Up on the second floor, two family bedrooms each have a walk-in closet and private bathroom.

What's Included

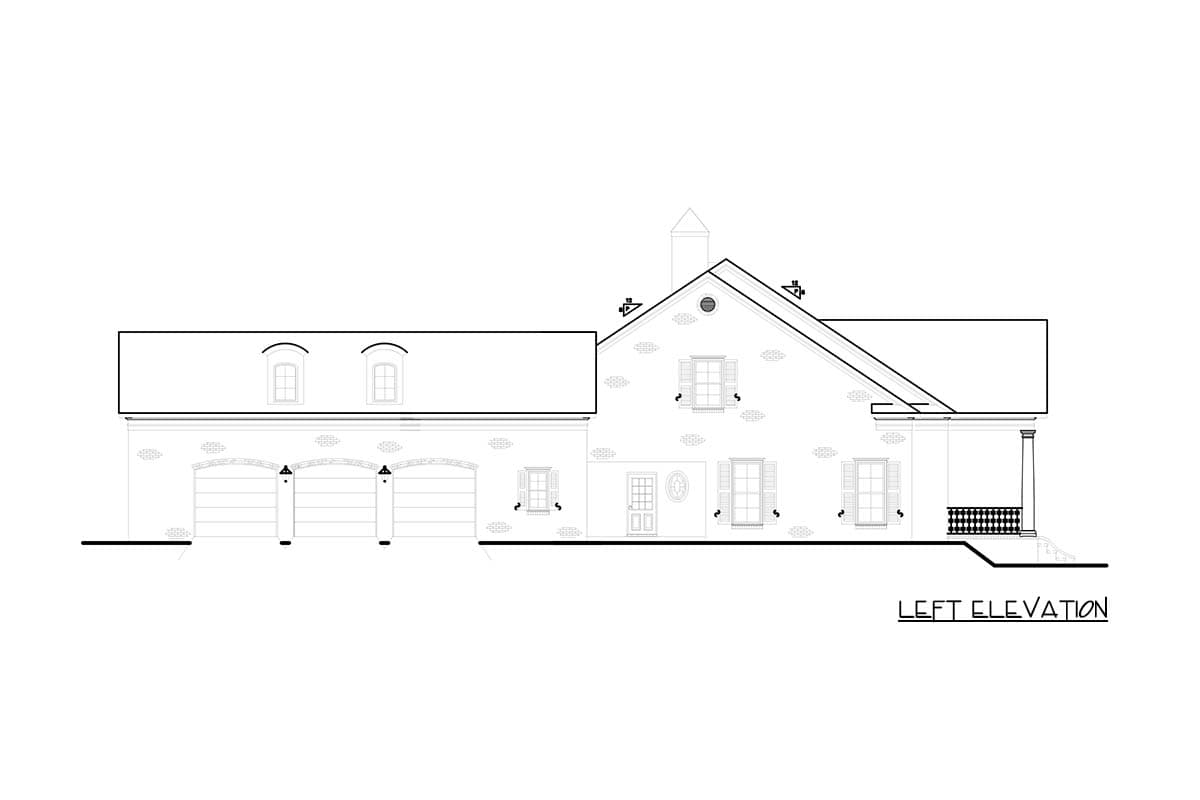

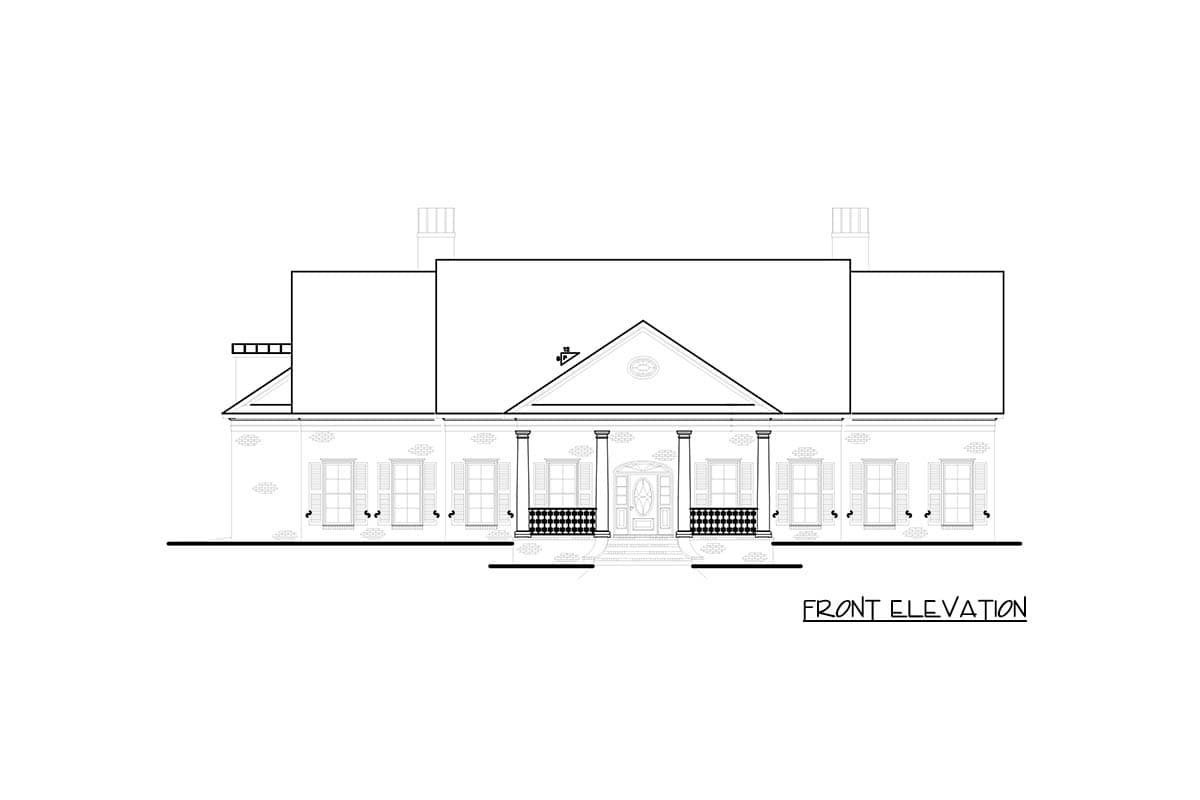

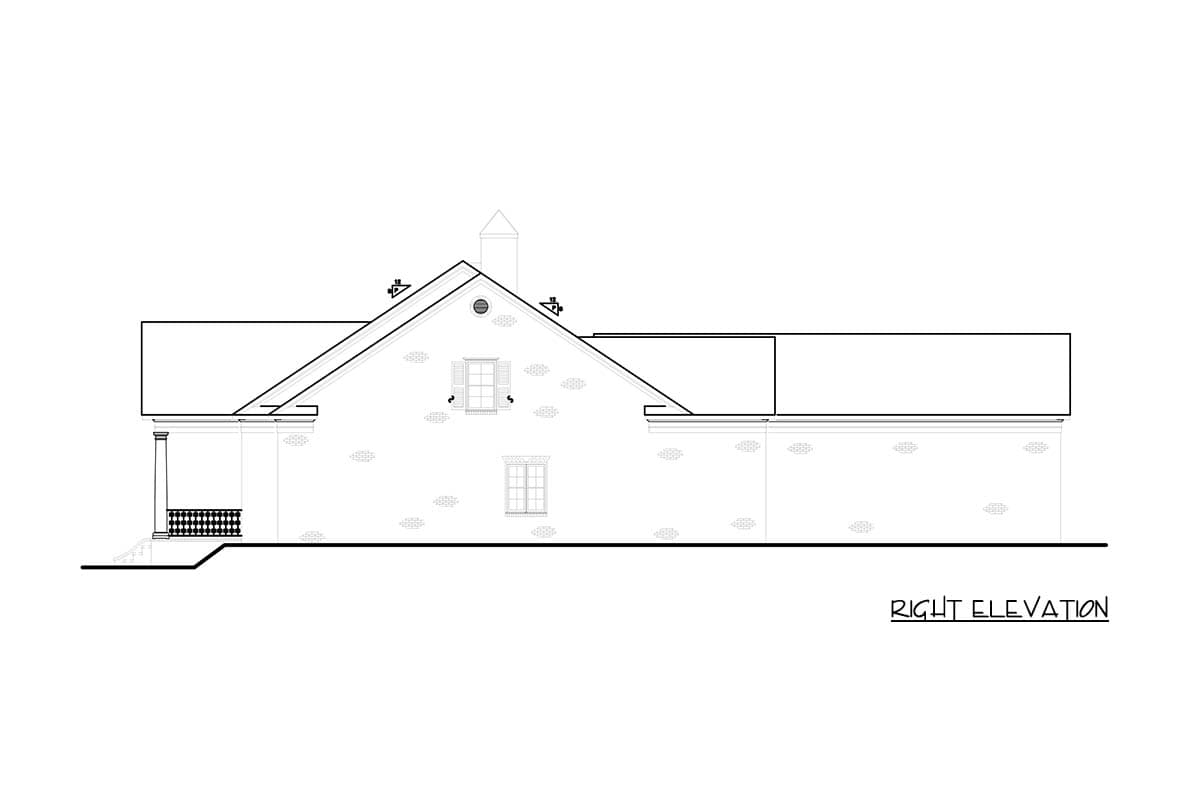

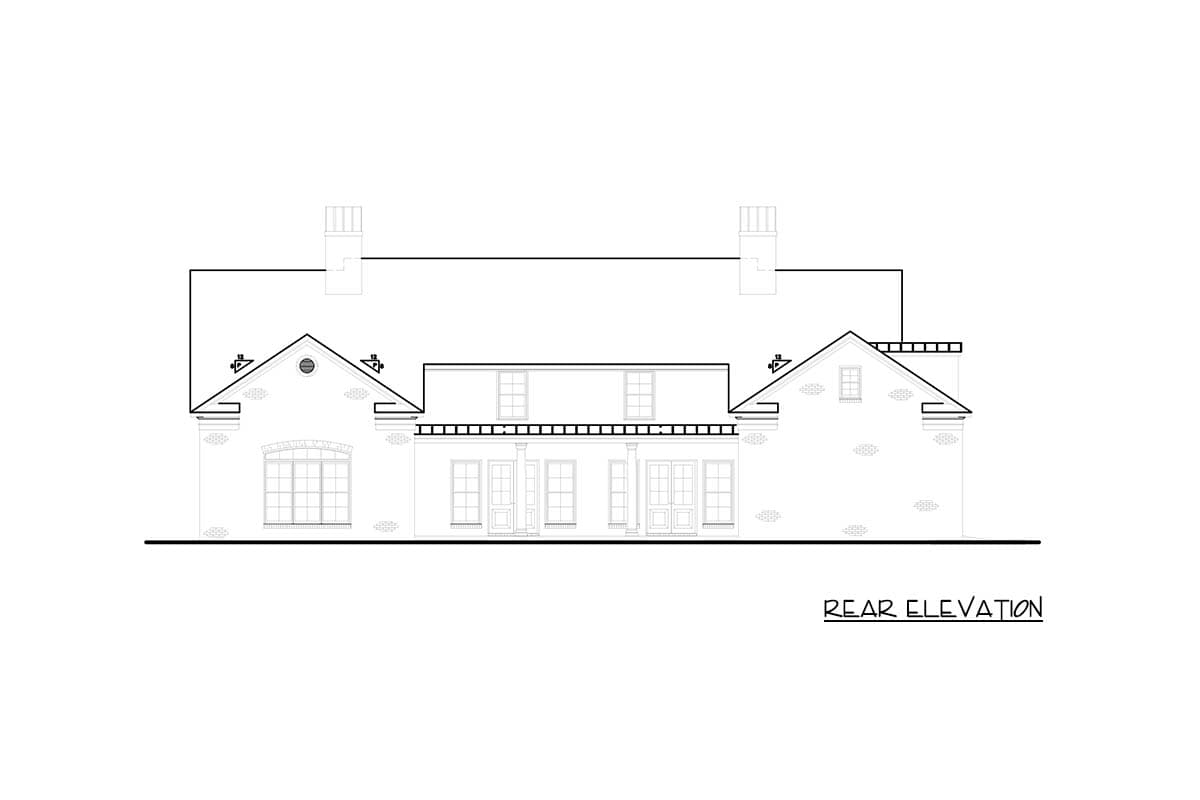

  • Elevations - Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan - Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc
  • Second Floor Plan (if any) - Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan - Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan - Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section - Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan - A schematic layout of all lighting, switches and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,378 sq. ft.

1st Floor

3,500 sq. ft.

2nd Floor

878 sq. ft.

Bonus

615 sq. ft.

Storage

68 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

83' 8"

Depth

100' 0"

Max Ridge Height

30' 6"

Garage

Type

Attached

Area

960 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Formal Dining

Keeping Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Optionally Finished Bonus Room

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

4,378 sq. ft.

1st Floor

3,500 sq. ft.

2nd Floor

878 sq. ft.

Bonus

615 sq. ft.

Storage

68 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

83' 8"

Depth

100' 0"

Max Ridge Height

30' 6"

Garage

Type

Attached

Area

960 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Formal Dining

Keeping Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Optionally Finished Bonus Room

Plan Collections

Photo Gallery
