Plan 5965ND

Southern Charm

Heated S.F.
2,231
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 5965ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 5965ND

M-F 9am-5pm EST |

1-203-761-8500

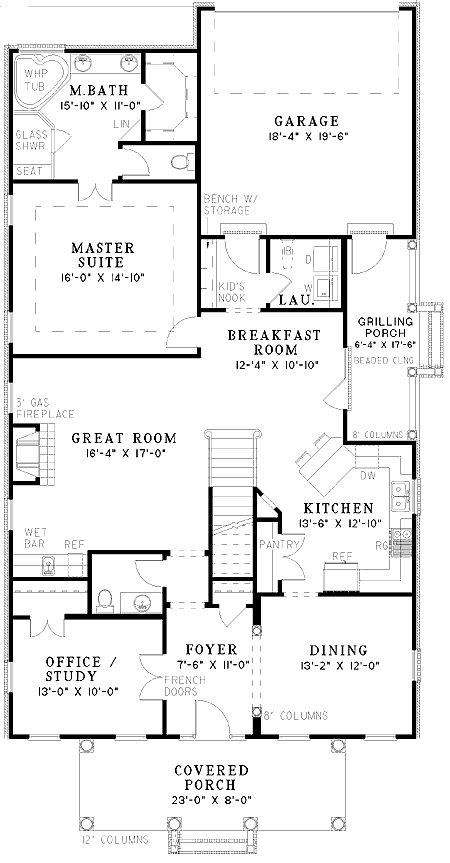

Main Level

Plan 5965ND: Southern Charm - Floor Plan - Main Level - Southern, Traditional

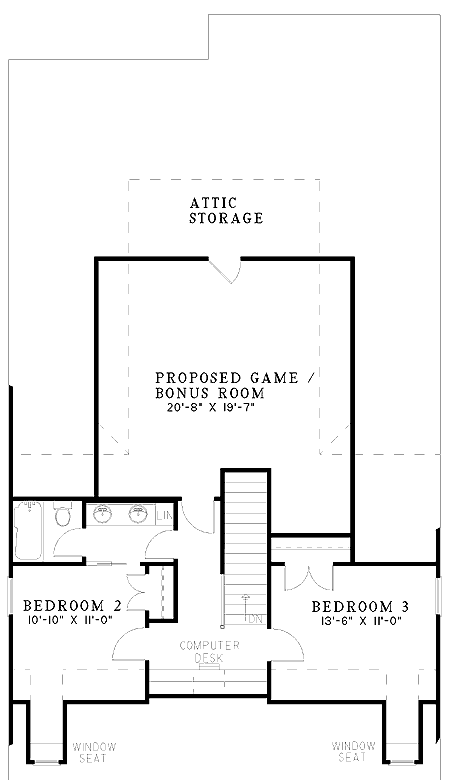

2nd Floor

Plan 5965ND: Southern Charm - Floor Plan - 2nd Floor - Southern, Traditional

Plan Details

  • Pamper yourself with Southern charm when you select this home. Become instantly immersed in tradition as you step into an elegant foyer designed with an open entrance to the formal dining room.
  • Brilliant French doors open to a private study for late night work or quiet time with your favorite book.
  • Enjoy nights in front of a roaring fire while you sip drinks from the built-in wet bar in the great room.
  • Plan a cookout and show off your barbecue skills while utilizing the side grilling porch.
  • A spacious upper level with a bonus room--perfect for a game or study area--allows plenty of space for the kids to be kids.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,231 sq. ft.

1st Floor

1,698 sq. ft.

2nd Floor

533 sq. ft.

Bonus

394 sq. ft.

Porch, Front

184 sq. ft.

Porch, Rear

105 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

35' 4"

Depth

71' 6"

Max Ridge Height

26' 7"

Garage

Type

Attached

Area

373 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Formal Dining

Library/Study

Master Suite - 1st Floor

Optionally Finished Bonus Room

Wet Bar

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

2,231 sq. ft.

1st Floor

1,698 sq. ft.

2nd Floor

533 sq. ft.

Bonus

394 sq. ft.

Porch, Front

184 sq. ft.

Porch, Rear

105 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

35' 4"

Depth

71' 6"

Max Ridge Height

26' 7"

Garage

Type

Attached

Area

373 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Formal Dining

Library/Study

Master Suite - 1st Floor

Optionally Finished Bonus Room

Wet Bar

Plan Collections

Sloping Lot
