Plan 83884JW
Southern Cottage Plan with Expansive Front Porch - 1176 Sq Ft
Heated S.F.
1,176
Beds
3
Baths
2
Stories
1
What's Included
Plan Details
  • This Southern Cottage home plan features an expansive front porch topped by a gabled roof. Inside, the house plan gives you 3 beds, 2 baths and 1,176 square feet of heated living.
  • The formal entry leads directly into the open living space that combines the family room, dining area, and kitchen with an island with an eating bar and a window over the sink overlooking the side yard.
  • The master bedroom includes a walk-in closet and full bathroom, while bedrooms 2 and 3 share the hall closet.
  • The laundry room is centrally located in the hallway, easily accessible by all.
  •  We can modify any house plan you see on our site. Learn more about modifications.
What's Included

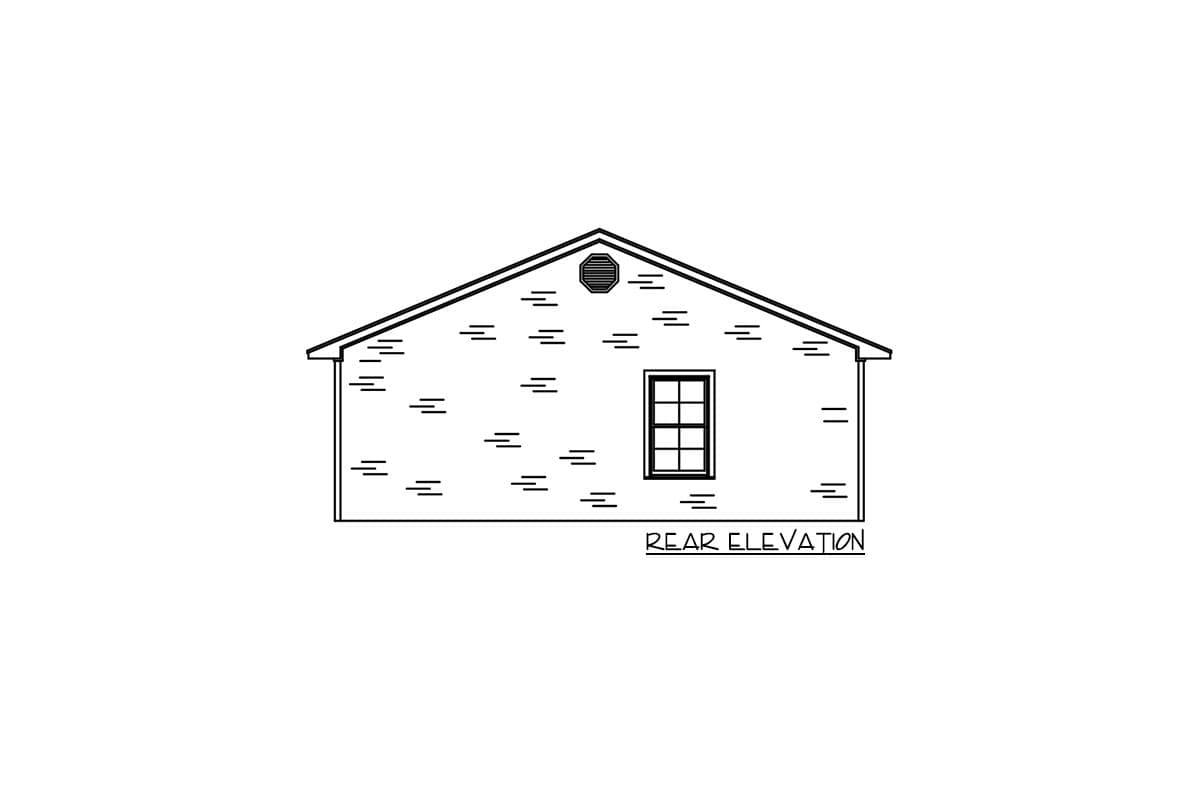

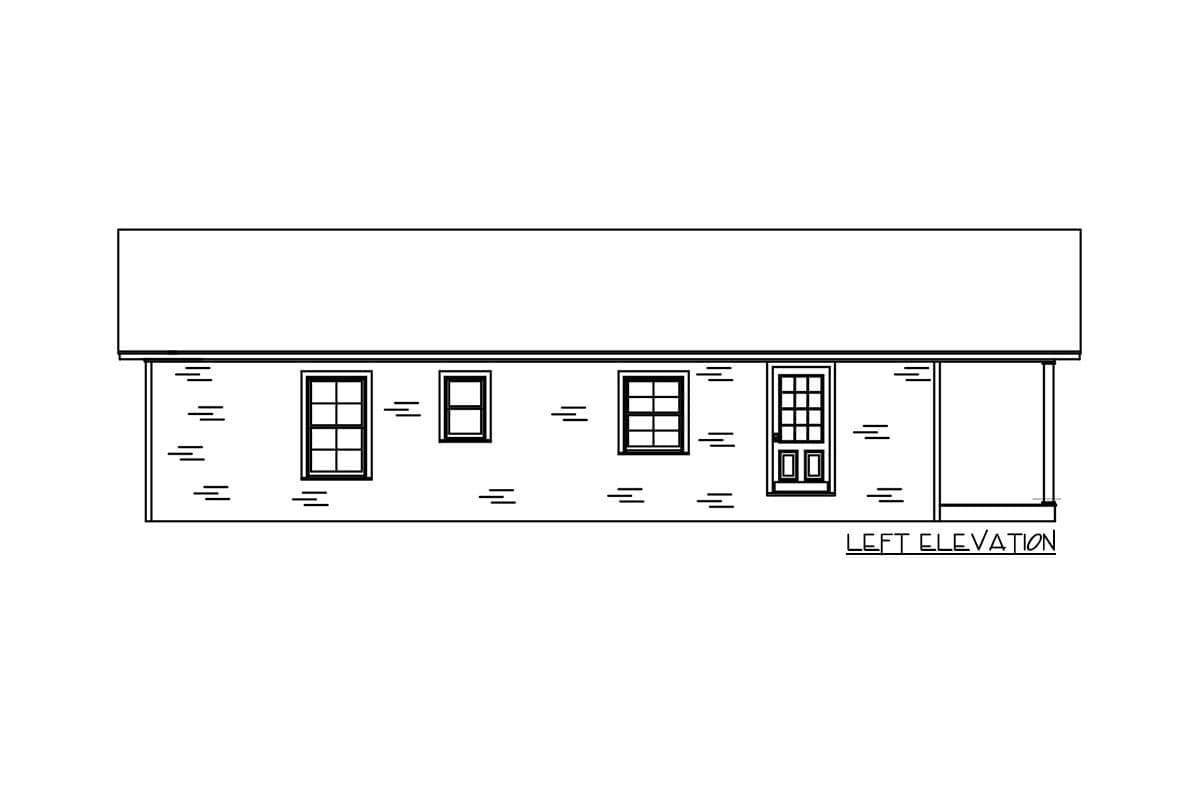

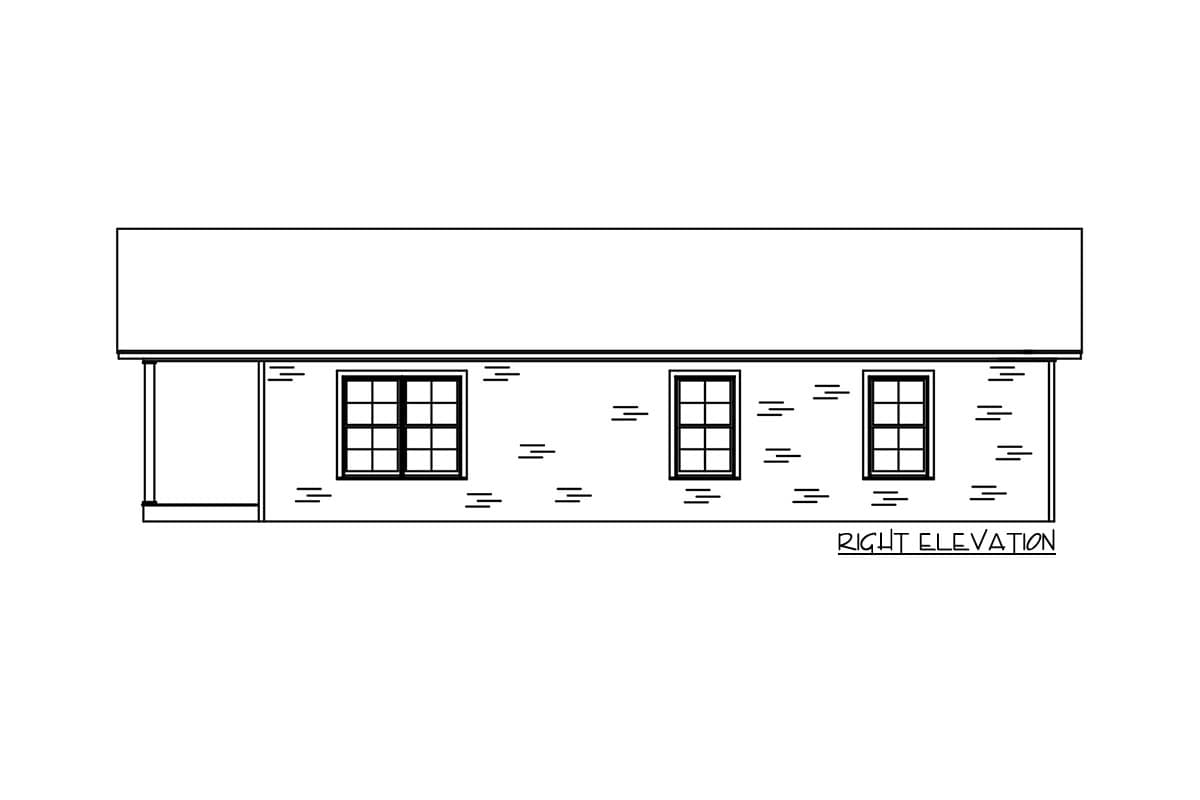

  • Elevations - Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

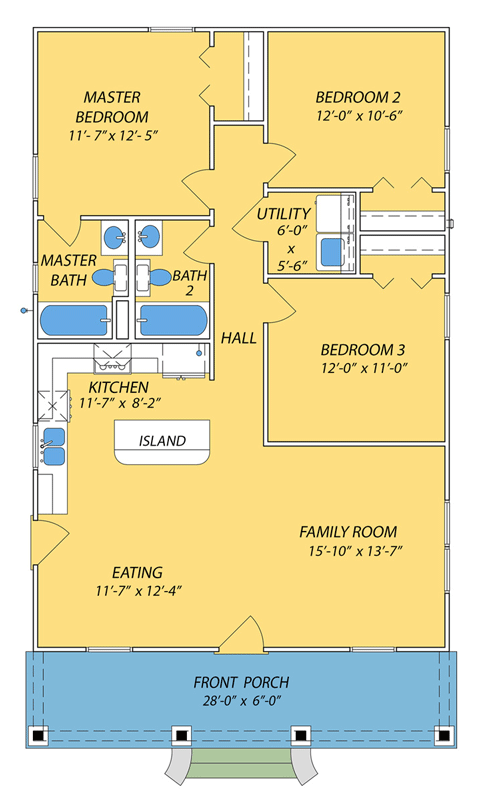

  • Main Floor Plan - Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc
  • Second Floor Plan (if any) - Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan - Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan - Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section - Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan - A schematic layout of all lighting, switches and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Southern Cottage Plan with Expansive Front Porch - 1176 Sq Ft

  • 1,176

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,176 sq. ft.
  • 1st Floor: 1,176 sq. ft.

Dimensions

  • Width: 28' 0"
  • Depth: 48' 6"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Monolithic Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
