Plan 62023V

Southern Elegance

Heated S.F.
2,046
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 62023V

Main Level
Main Level

Plan 62023V

M-F 9am-5pm EST |

1-203-761-8500

Main Level

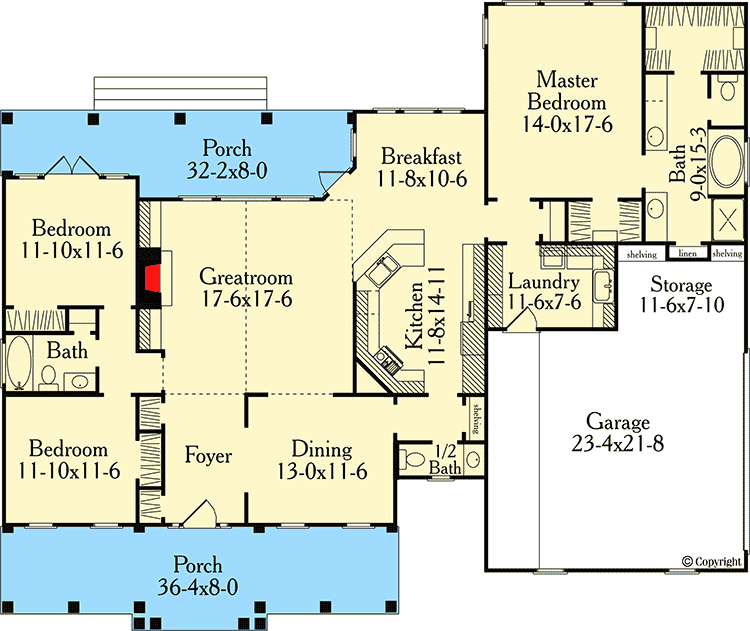

Plan 62023V: Southern Elegance - Floor Plan - Main Level - Country, Southern, Traditional

Plan Details

  • In this elegant Southern home, the central living area effectively separates the master suite from the secondary bedrooms. Windows across the rear bring light into the family living areas.
  • The front porch with elegant columns leads to the foyer, from which you can survey the formal dining room to one side and the vaulted great room with a fireplace ahead.
  • An angled eating bar sets off the kitchen from the great room and breakfast room.
  • The master suite includes two walk-in closets, a garden tub, a separate shower and his and her vanities.
  • On the other side of the house, the family bedrooms share the second full bath. Both the rear-facing family bedroom and the breakfast room open to the covered porch in back.
  • Ceilings: 9' standard.

What's Included

  • Covers sheet with construction notes
  • All elevations
  • Foundation
  • Fully dimensioned floor plan
  • Detail and section page
  • Cabinet elevations
  • Roof plan
  • Electrical plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,046 sq. ft.

1st Floor

2,046 sq. ft.

Basement Unfinished

2,046 sq. ft.

Porch, Front

290 sq. ft.

Porch, Rear

249 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

68' 2"

Depth

57' 4"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

611 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Southern

Traditional

Special Features

Bedrooms - Split

Formal Dining

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,046 sq. ft.

1st Floor

2,046 sq. ft.

Basement Unfinished

2,046 sq. ft.

Porch, Front

290 sq. ft.

Porch, Rear

249 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

68' 2"

Depth

57' 4"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

611 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Southern

Traditional

Special Features

Bedrooms - Split

Formal Dining

Master Suite - 1st Floor
