Plan 5913ND

Southern Home With Handicapped-Accessible Feature

Heated S.F.
3,706
Beds
3
Baths
2.5
Stories
2
Cars
3

Floor Plan

Plan 5913ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 5913ND

M-F 9am-5pm EST |

1-203-761-8500

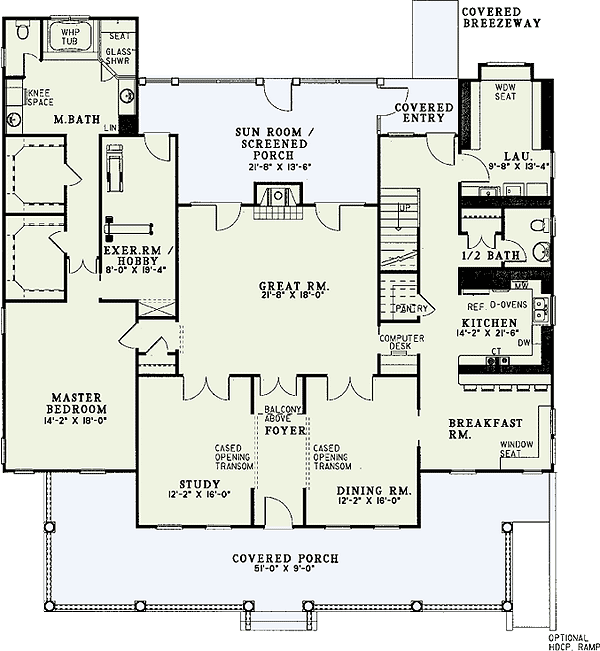

Main Level

Plan 5913ND: Southern Home With Handicapped-Accessible Feature - Floor Plan - Main Level - Southern, Traditional

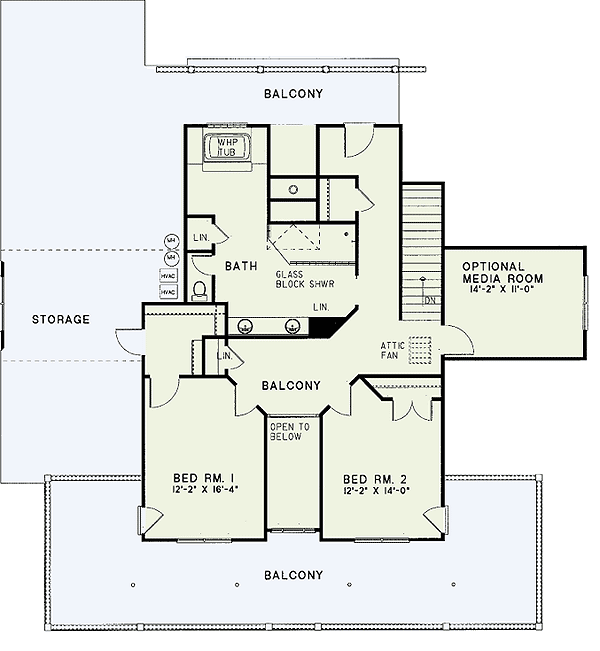

2nd Floor

Plan 5913ND: Southern Home With Handicapped-Accessible Feature - Floor Plan - 2nd Floor - Southern, Traditional

Plan Details

  • This Southern traditional home plan, with double porches in front and a large, rear sunroom/screened porch, offers handicapped-accessible features.
  • Inside, the feeling of grandeur is evident with French doors from the front rooms to the spacious great room, with computer center nearby.
  • The master suite boasts dual walk-in closets, a luxurious bath and its own exercise/hobby room, which also opens to the sunroom/screened porch.
  • Upstairs, the hallway overlooks the two-story foyer below. Two family bedrooms share a bath with a glass block shower.
  • Ceilings: 9' standard.
  • Foundation options: basement, daylight basement, slab or crawl space. Specify when ordering.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,706 sq. ft.

1st Floor

2,473 sq. ft.

2nd Floor

1,233 sq. ft.

Bonus

155 sq. ft.

Porch, Combined

978 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

60' 0"

Depth

64' 2"

Max Ridge Height

32' 2"

Garage

Type

Detached

Area

872 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Accessible Design

Butler Walk-in Pantry

Master Suite - 1st Floor

Master Suite - Sitting Area

Optionally Finished Bonus Room

Sunroom

Wrap Around Porch

Square Footage Breakdown

Total Heated Area

3,706 sq. ft.

1st Floor

2,473 sq. ft.

2nd Floor

1,233 sq. ft.

Bonus

155 sq. ft.

Porch, Combined

978 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

60' 0"

Depth

64' 2"

Max Ridge Height

32' 2"

Garage

Type

Detached

Area

872 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Accessible Design

Butler Walk-in Pantry

Master Suite - 1st Floor

Master Suite - Sitting Area

Optionally Finished Bonus Room

Sunroom

Wrap Around Porch
