Plan 86399HH
Southern House Plan Under 3600 Square Feet with and 3 Ensuite Bedrooms
Heated S.F.
3,582
Beds
4
Baths
4.5
Stories
2
Cars
2
What's Included
Plan Details

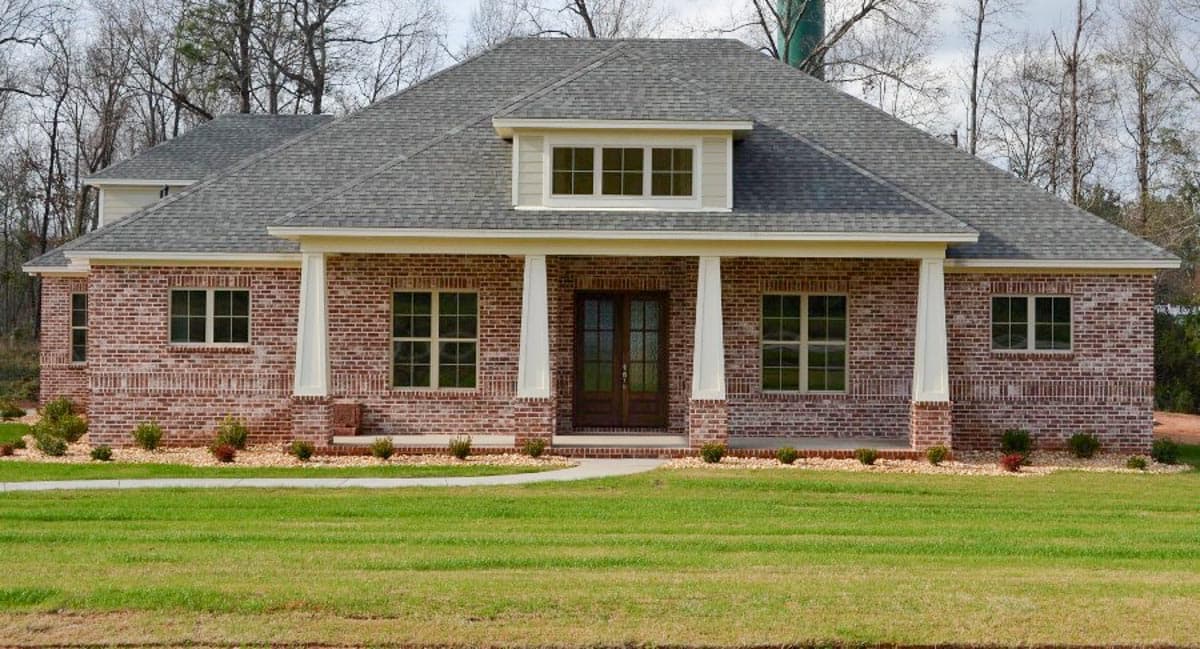

  • This 4-bed house plan has a hip roof and a brick exterior and gives you 3,582 square feet of heated living and a 2-car garage.

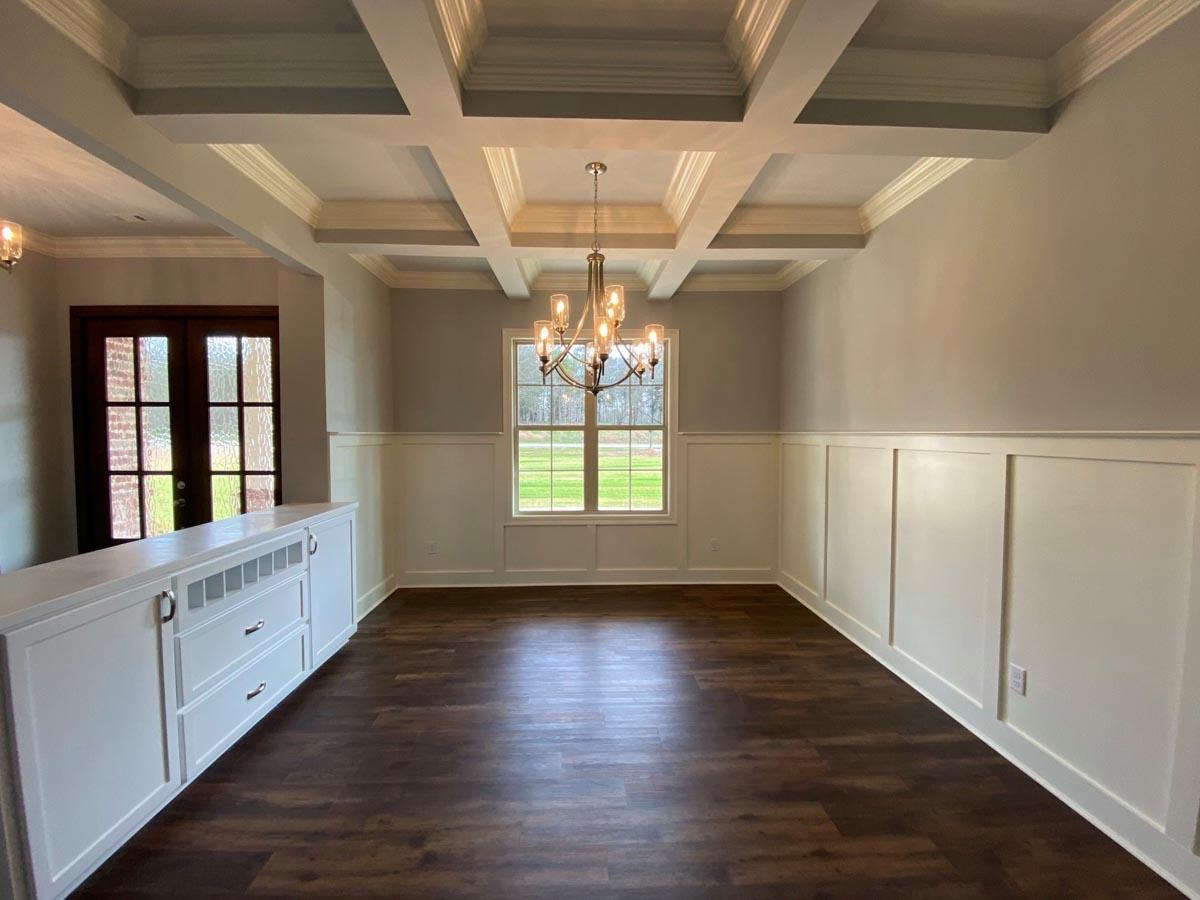

  • Inside, there are both formal and informal spaces to dine, with a dining room in front and a breakfast room in back. The kitchen is placed between these two dining spaces and offers a third eating option: four seats at the large island.
  • A study off the foyer makes a great work-from-home-space.

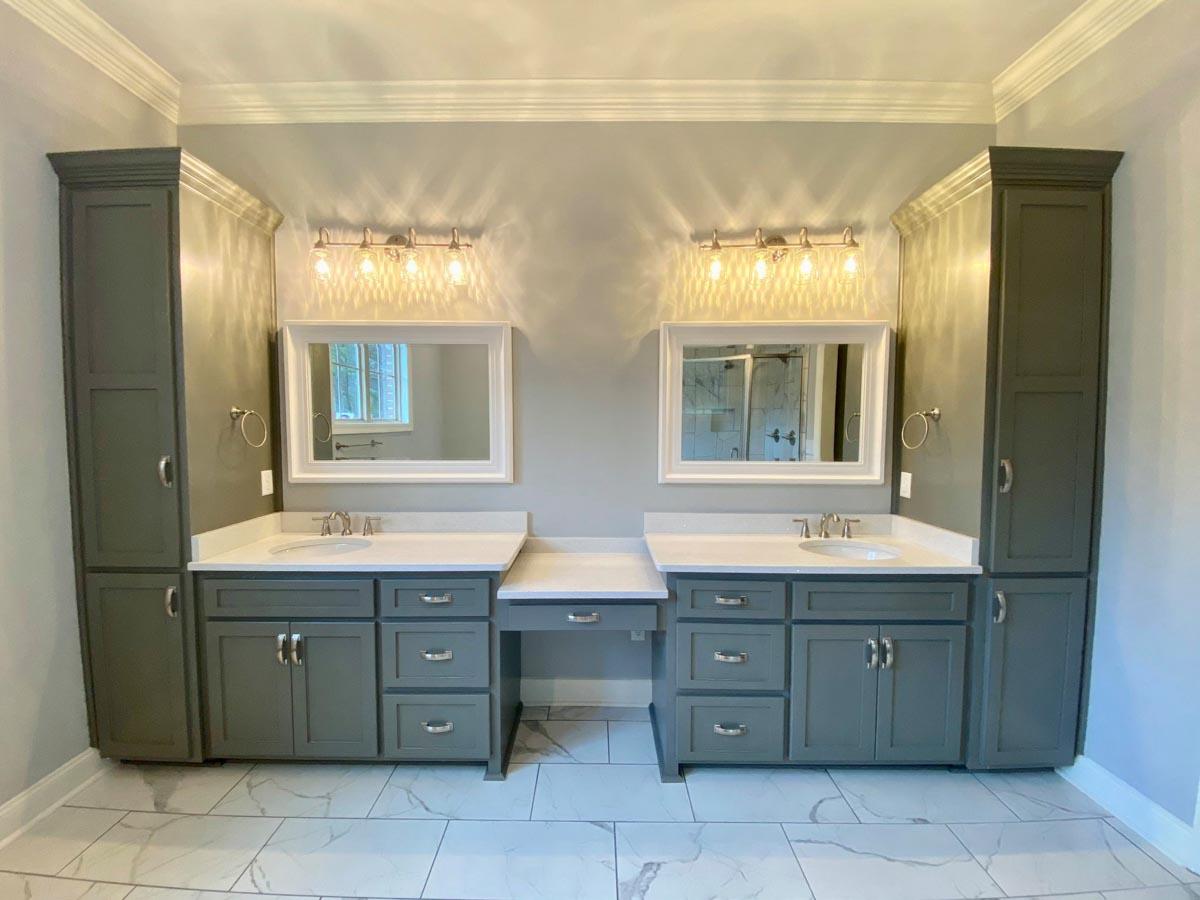

  • The master suite occupies the entire right side of the home and has two walk-in closets and a five-fixture bath. Across the home, two beds with walk-in closets each have their own bathroom.

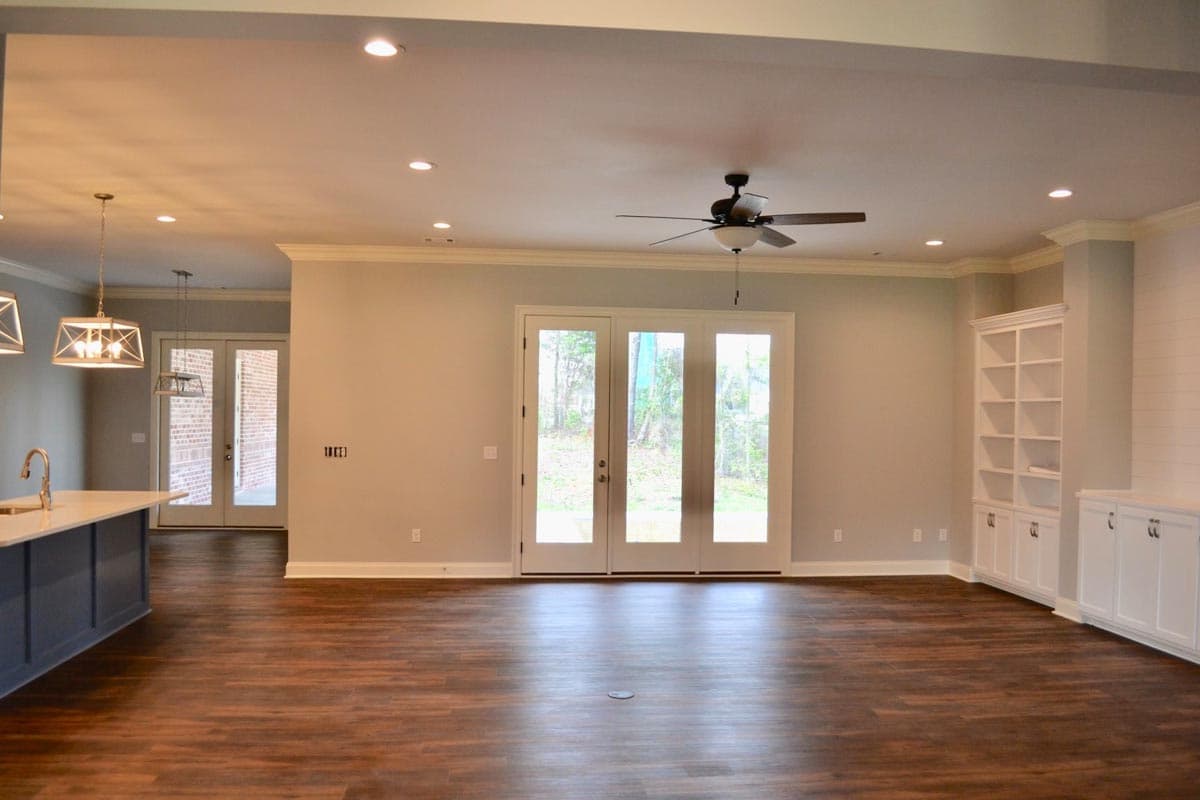

  • Two fresh air spaces are located in back of the home: one off the family room with fireplace and a second one behind the 2-car garage.
What's Included
  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Southern House Plan Under 3600 Square Feet with and 3 Ensuite Bedrooms

  • 3,582

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

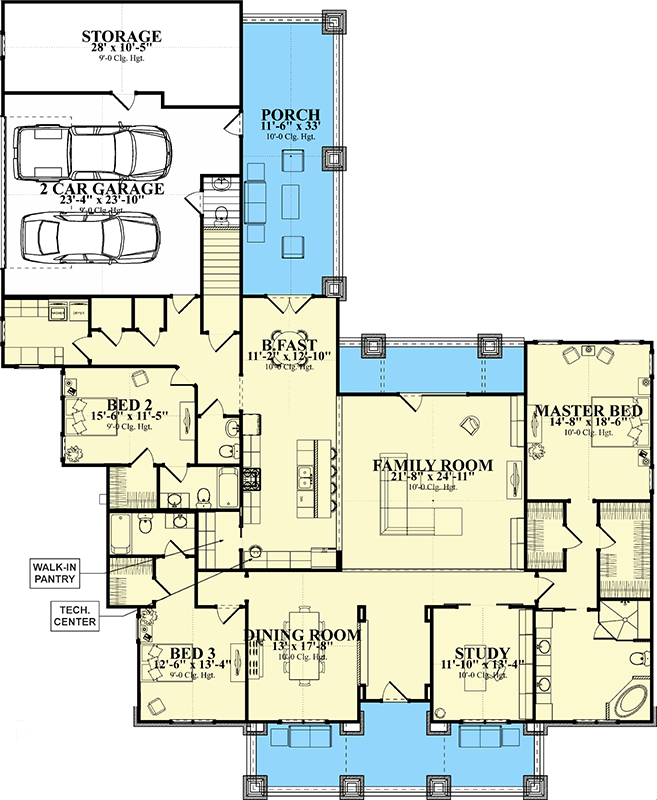

Floor Plan

  • Main Level

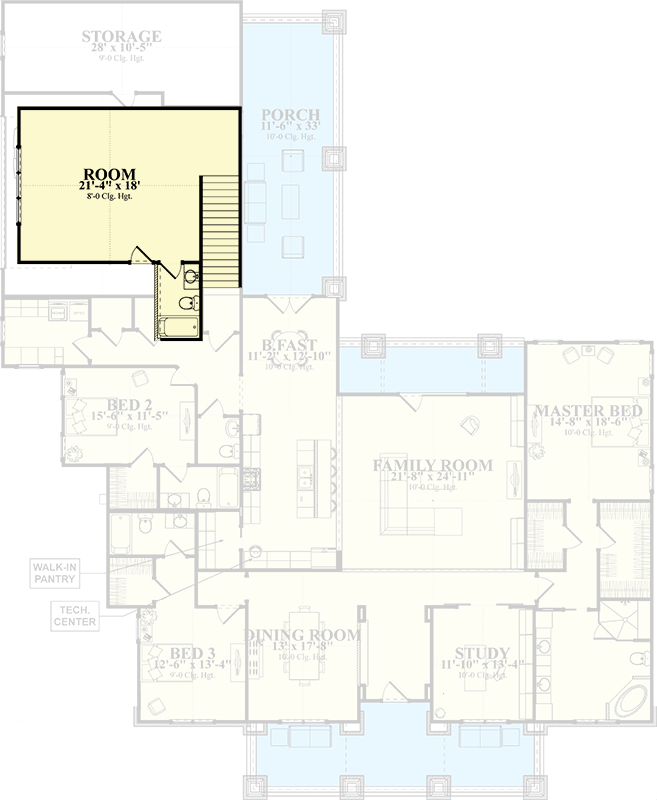

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,582 sq. ft.
  • 1st Floor: 3,082 sq. ft.
  • 2nd Floor: 500 sq. ft.

Dimensions

  • Width: 78' 4"
  • Depth: 95' 5"
  • Max ridge height: 26' 3"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1003 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
