Plan 510020WDY

Southern House Plan with First Floor Master

Heated S.F.
2,667
Beds
4
Baths
3
Stories
2
Cars
2

Floor Plan

Plan 510020WDY

Main Level
Main Level
2nd Floor
2nd Floor

Plan 510020WDY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

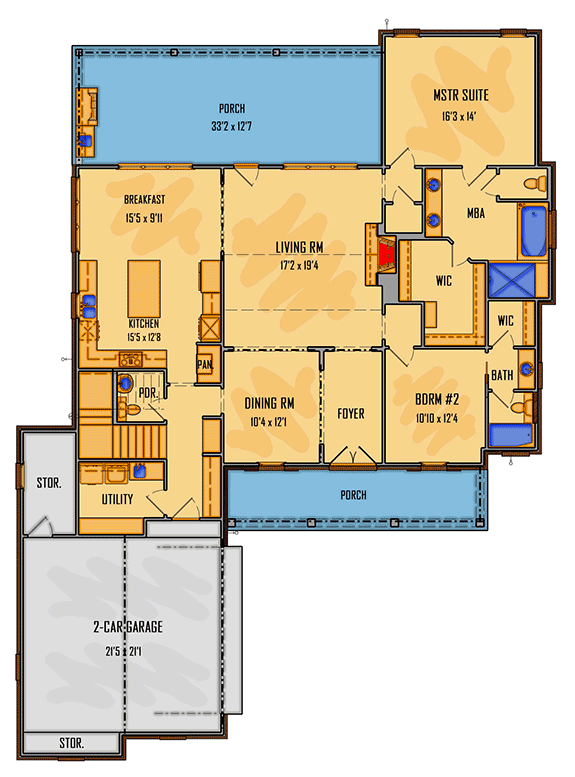

Plan 510020WDY: Southern House Plan with First Floor Master - Floor Plan - Main Level - Country, European, Southern, Traditional

2nd Floor

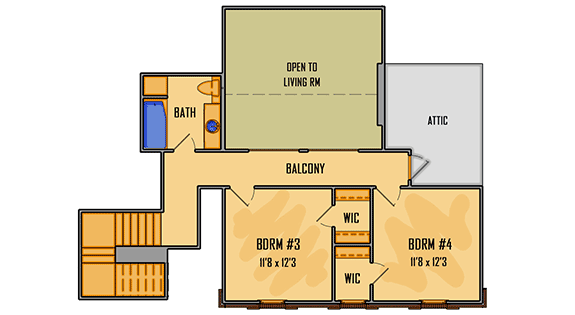

Plan 510020WDY: Southern House Plan with First Floor Master - Floor Plan - 2nd Floor - Country, European, Southern, Traditional

Plan Details

  • A graceful and elegant roof tops this Southern house plan that comes with a first floor master suite.
  • Views of the formal dining room start right at the foyer, with wide openings on two walls that enhance the open layout.
  • The kitchen and breakfast nook form one large space with a bank of triple windows at the back that overlook the rear covered porch.
  • Homeowners get a first floor master suite so no stairs to climb at night.
  • Bedroom 2 is also on the first floor and it makes a great guest suite.
  • On the upper floor, bedrooms 3 and 4 each have walk-in closets and the balcony hallway has open railing that overlooks the living room below.

What's Included

This plan has 9 pages as follows:
  1. Coversheet Color Rendering
  2. First Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing
  3. Second Floor with Notes and Dims

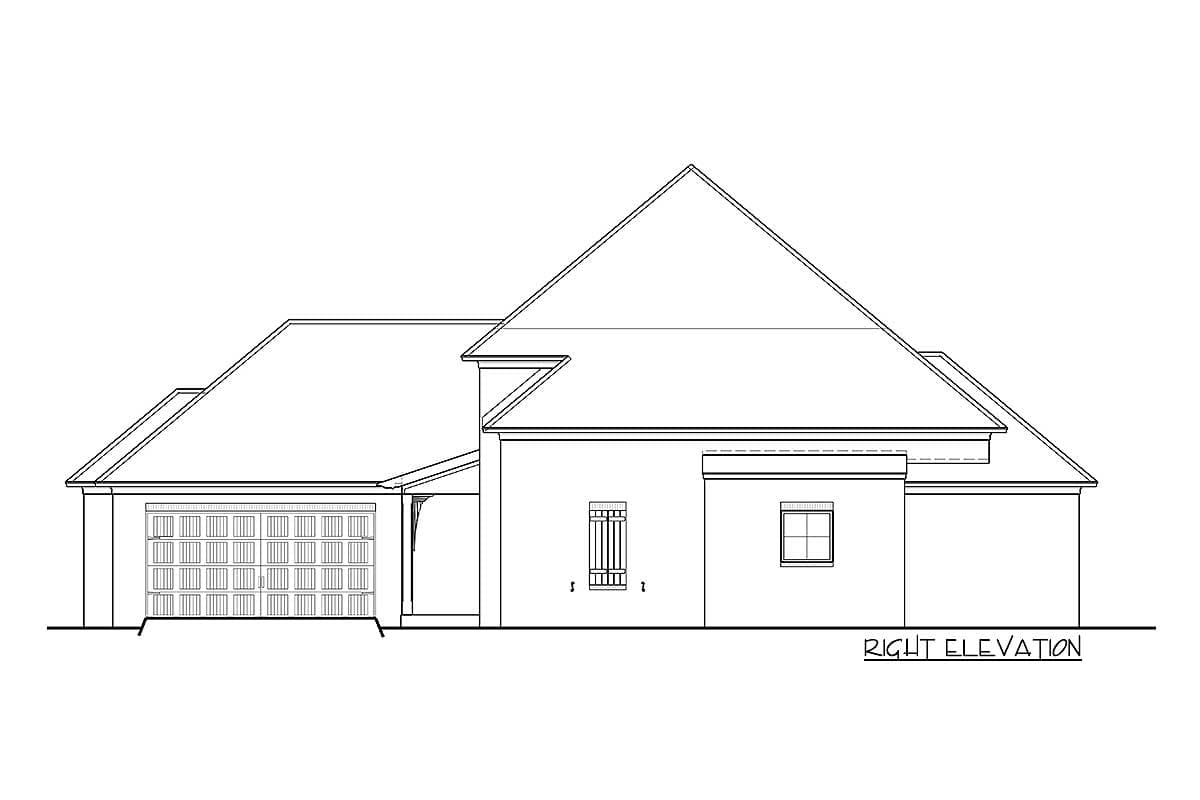

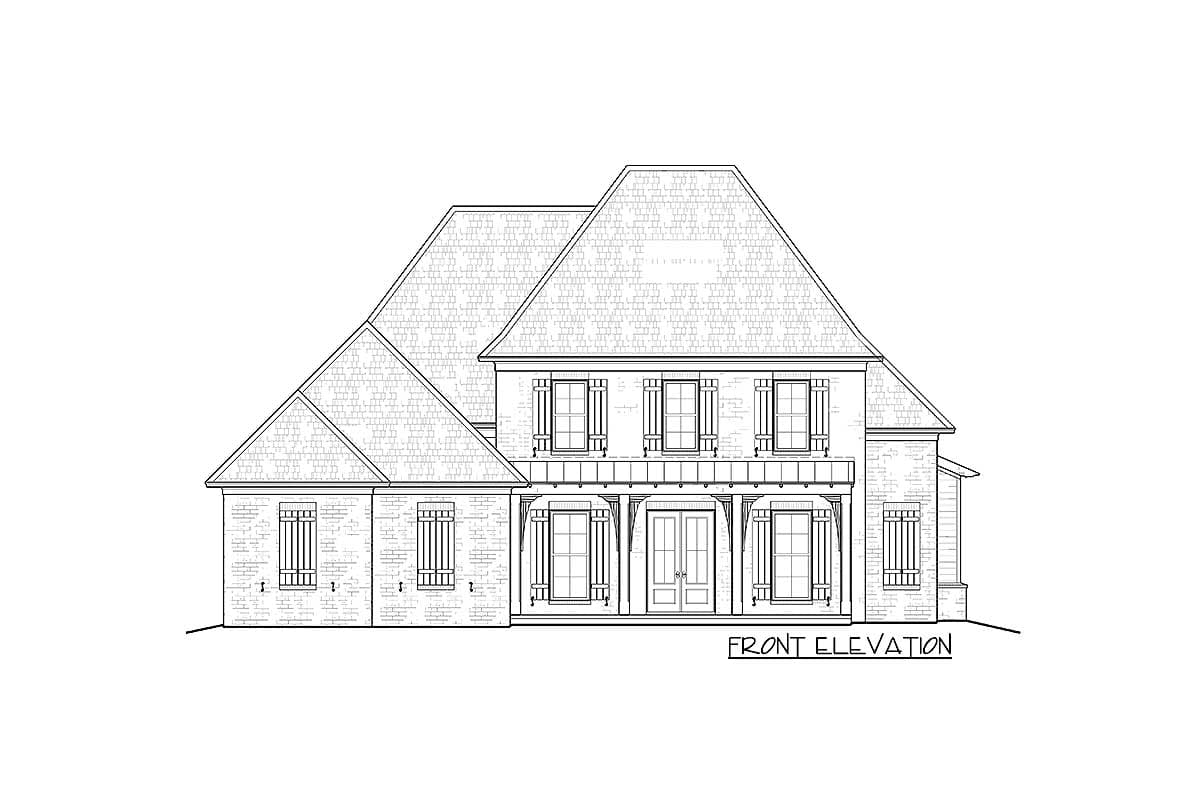

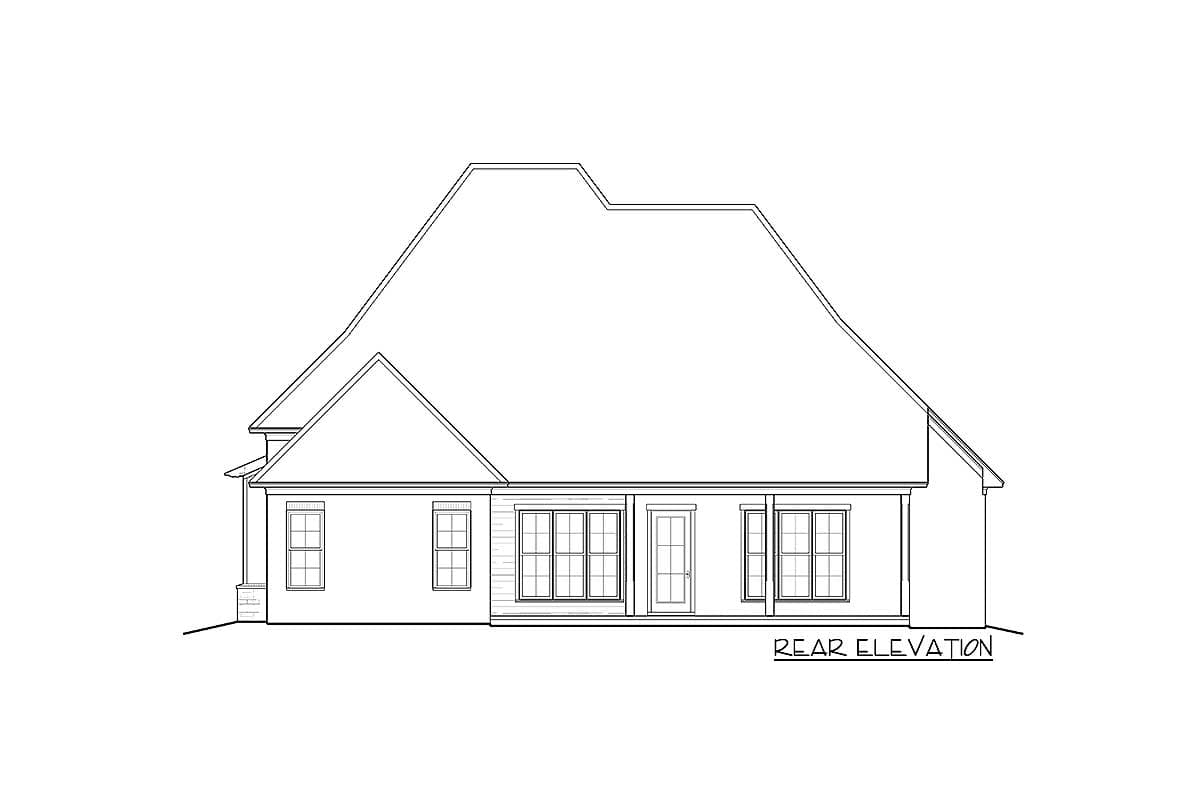

  4. Four Exterior Elevations, Roof Plan
  5. Cornice Details, Building Section, Misc Siding Details
  6. Misc. Detail, Flashing, Windows, Column Details
  7. Electrical Plan and Schedules
  8. Slab Foundation
  9. Slab Footing Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,667 sq. ft.

1st Floor

2,042 sq. ft.

2nd Floor

624 sq. ft.

Porch, Front

185 sq. ft.

Porch, Rear

437 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

58' 4"

Depth

79' 0"

Max Ridge Height

35' 6"

Garage

Type

Attached

Area

581 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

16 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

European

Southern

Traditional

Special Features

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Square Footage Breakdown

Total Heated Area

2,667 sq. ft.

1st Floor

2,042 sq. ft.

2nd Floor

624 sq. ft.

Porch, Front

185 sq. ft.

Porch, Rear

437 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

58' 4"

Depth

79' 0"

Max Ridge Height

35' 6"

Garage

Type

Attached

Area

581 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

16 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

European

Southern

Traditional

Special Features

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen
