Plan 83883JW
Southern House Plan with Huge Optional Bonus Room
Heated S.F.
2,887
Beds
4
Baths
3.5 - 4.5
Stories
1
Cars
3
What's Included
Plan Details

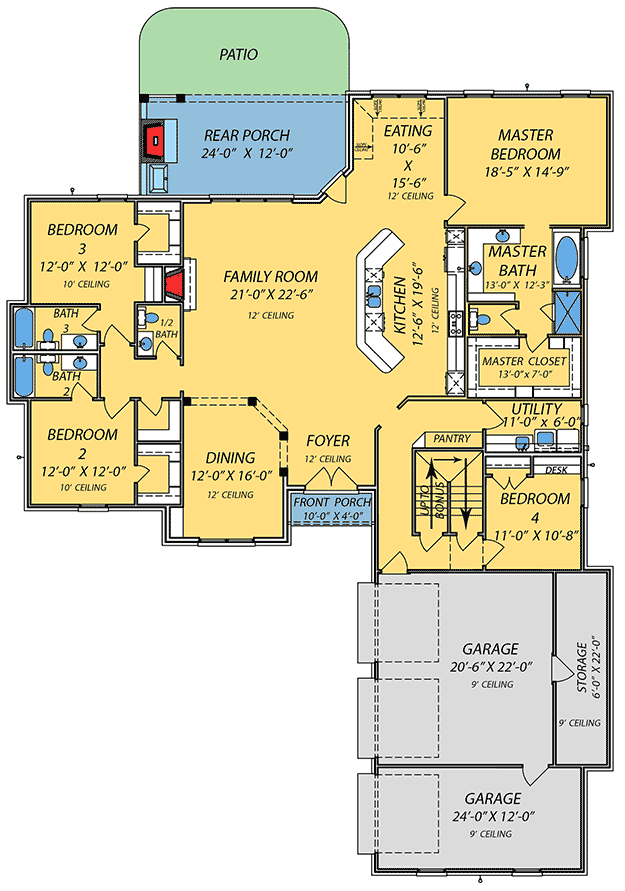

  • A big open floor plan is the hallmark of this delightful Southern house plan that has a courtyard style garage.
  • Interior columns are used instead of walls so you can see from the dining room right into the family room and kitchen.
  • The angled kitchen island flares out on two sides giving you lots of extra counter space.
  • The master suite gets a quiet location at the back of the house away from street noise.
  • Bedroom 4 has a built-in desk and could be used as a study if desired.
  • Each of the two bedrooms on the opposite side of the home has a walk-in closet and private bathroom.

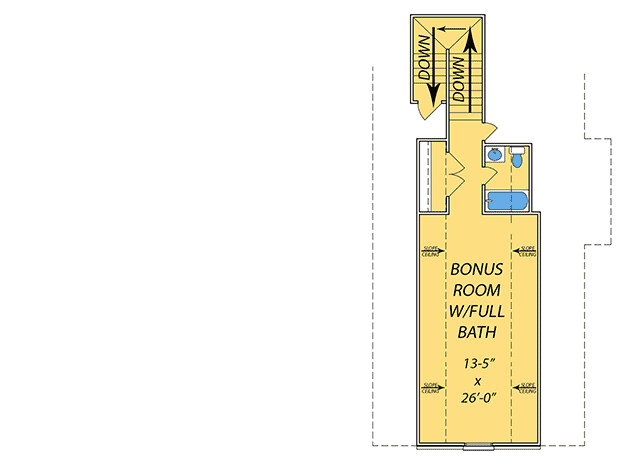

  • Finish the optional second floor bonus room that gives you an extra 571 square feet of living space.
What's Included
  • Elevations - Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan - Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc
  • Second Floor Plan (if any) - Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan - Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan - Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section - Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan - A schematic layout of all lighting, switches and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Southern House Plan with Huge Optional Bonus Room

  • 2,887

    Heated s.f.

  • 4

    Beds

  • 3.5 - 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,887 sq. ft.
  • 1st Floor: 2,887 sq. ft.

Dimensions

  • Width: 70' 0"
  • Depth: 90' 4"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 895 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Monolithic Slab
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
