Southern House Plan with Open Floor Plan

Plan 83864JW

  • 1,911

    Heated s.f.

  • 3

    Beds

  • 2 - 3

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • Decorative shutters and brick and stone embellish the exterior of this Southern house plan.
  • A key design feature is the beautiful open floor plan that keeps family and friends all in sight in one big space.
  • A corner fireplace warms the family room and can be seen from the kitchen sink while you work.
  • Separated from the family bedrooms, the master suite has a huge walk-in closet and big bathroom with double sinks.
  • The home comes with both a rear covered porch and an uncovered patio that can be as big as your lot allows.
  • Bedroom 3 gets a walk-in closet while bedroom 2 has views facing the front of your lot.
  • Bonus space on the second floor can be finished to suit your needs.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

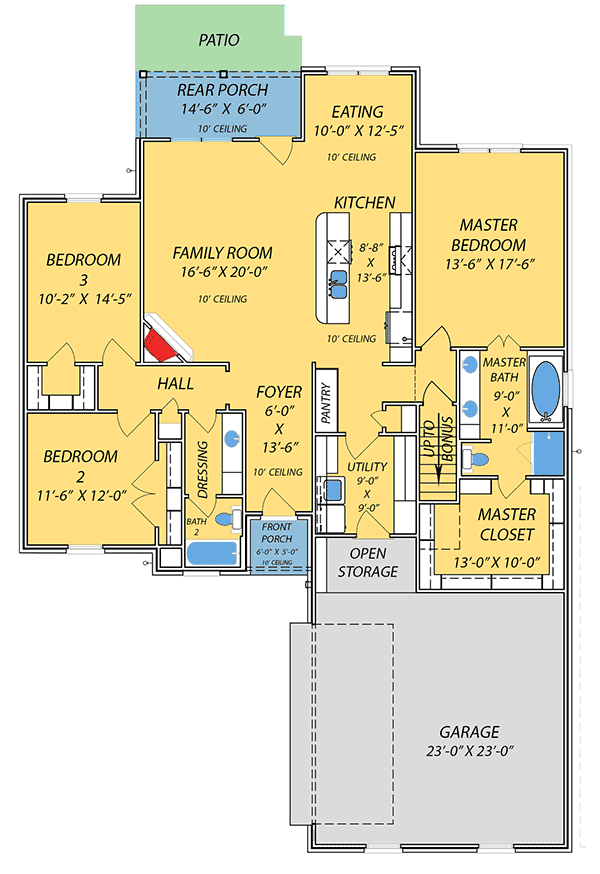

Southern House Plan with Open Floor Plan - 83864JW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Southern House Plan with Open Floor Plan - 83864JW floor plan - Bonus

Architectural Style

Plan Collections

Southern House Plan with Open Floor Plan

  • 1,911

    Heated s.f.

  • 3

    Beds

  • 2 - 3

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 1,911 sq. ft.
  • 1st Floor: 1,911 sq. ft.

Dimensions

  • Width: 49' 10"
  • Depth: 70' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2 or 3

Garage

  • Type: Attached
  • Area: 576 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Monolithic Slab
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
