Southern House Plan with Open Floor Plan
Heated S.F.
2,144
Beds
4
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Metal roofing across the front porch and decorative wood shutters accent this Southern house plan that comes with a lot of room for your family ro spread out.
  • Using three interior columns instead of walls that block views, this home has sight lines that flow from room to room.

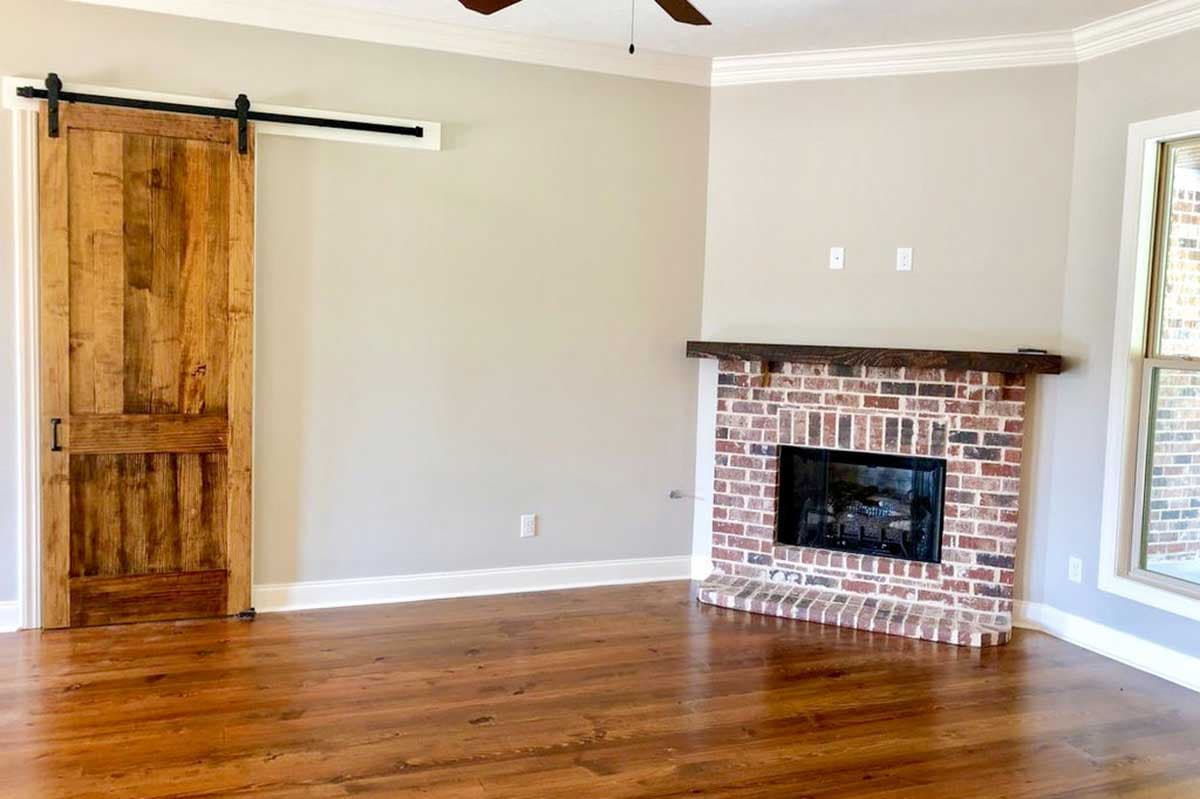

  • The glow of the corner fireplace can be seen from the cooking, eating and living areas.
  • Built-in lockers off the garage entry help to keep your family organized and there's a big walk-in pantry for food storage.
  • The split bedroom configuration separates the elegant master suite from the family bedrooms.

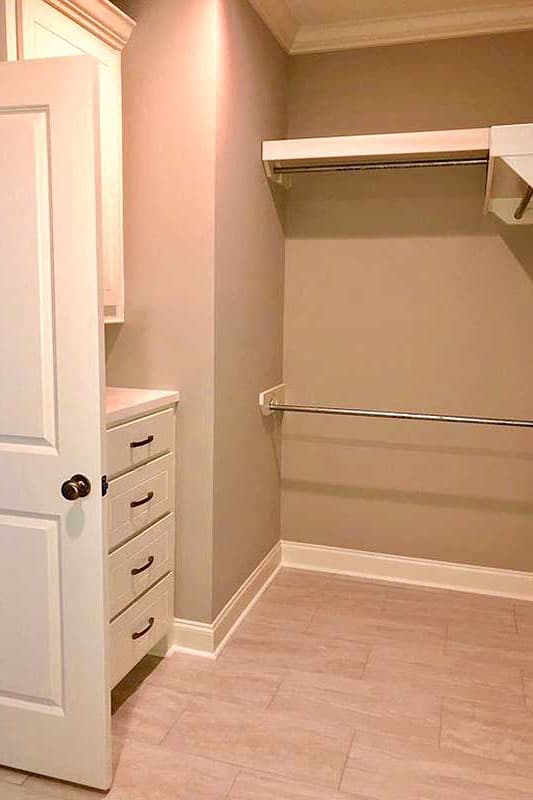

  • Notice the door in the master walk-in closet that opens right into the laundry room.
What's Included
  • Elevations - Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan - Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc
  • Second Floor Plan (if any) - Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan - Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan - Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section - Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan - A schematic layout of all lighting, switches and electrical outlets.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Southern House Plan with Open Floor Plan

  • 2,144

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

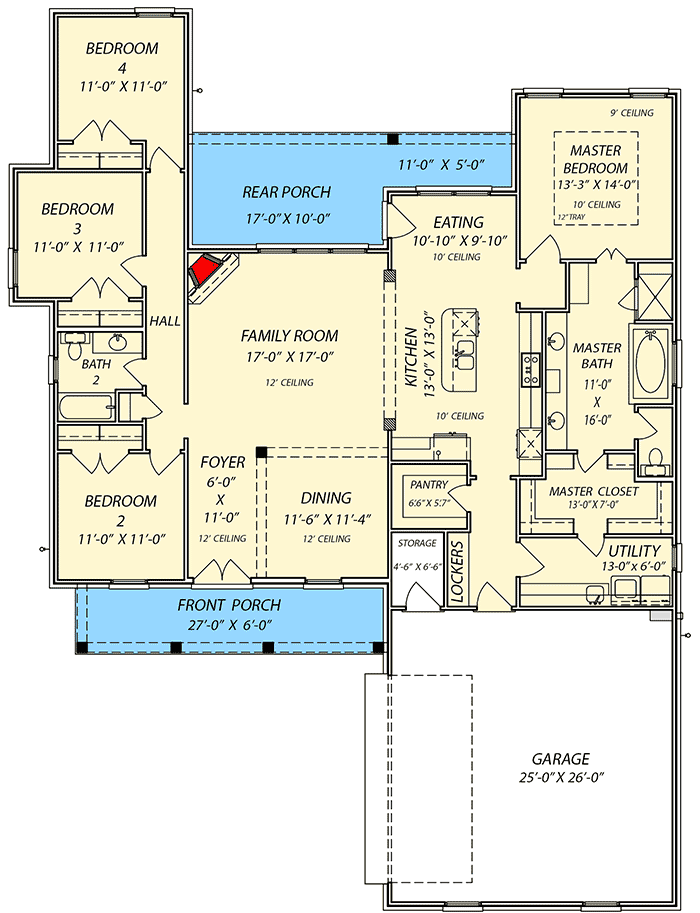

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,144 sq. ft.
  • 1st Floor: 2,144 sq. ft.

Dimensions

  • Width: 55' 0"
  • Depth: 78' 4"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 642 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Monolithic Slab
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
