Plan 82222KA

Southern House Plan with Private Front Courtyard and Exercise Room

Name: Plan 82222KA: Southern House Plan with Private Front Courtyard and Exercise Room
Brand: Architectural Designs
SKU: 82222KA
Price: 3106.75 USD
Availability: InStock

Heated S.F.

4,207

Beds

Baths

Stories

Cars

Floor Plan

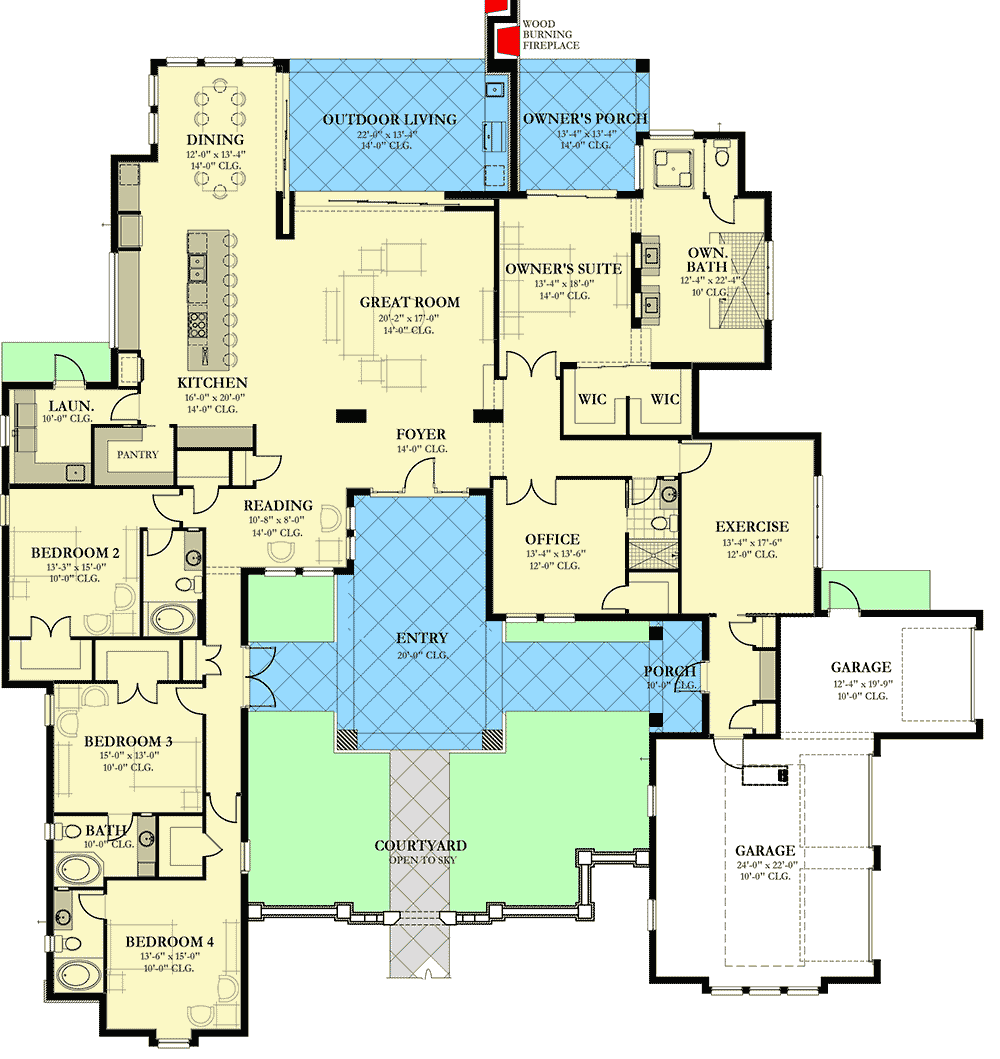

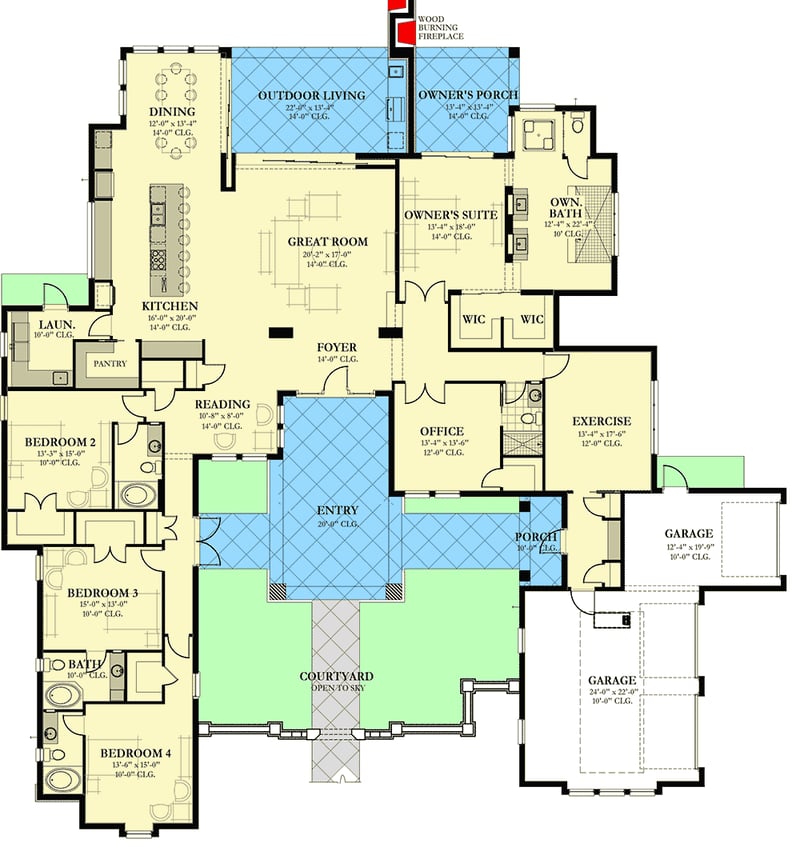

Main Level

Plan Details

This huge Southern house plan is centered around a walled front courtyard that gives you a grand entrance.
Bursting with appealing features, the home offers a reading nook, a home office with walk-in storage closet, an open layout and best of all your own exercise room.
The L-shaped main living area has no walls, making the home feel even bigger.
Sliding glass doors all along the back of the house open up to outdoor living spaces.
The kitchen island is massive with seating for seven people.
In the owner's suite, a private porch lets you relax with a glass of wine at the end of the day.
All three bedrooms on the opposite side of the home are a generous size.

What's Included

Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
