Plan 5560BR
Southern Splendor
Heated S.F.
2,605
Beds
4
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details

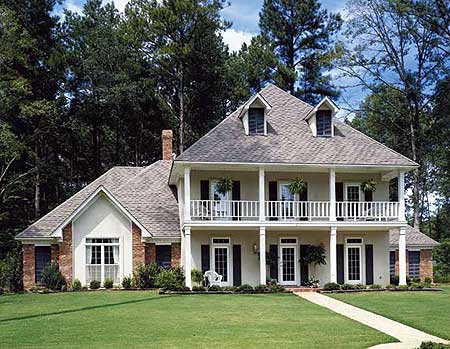

  • This Southern beauty featuers a classic two-story front covered porch and balcony.
  • A separate entry foyer leads to a spacious living area with built-in cabinets and fireplace.
  • The master suite features a sitting area, his/her closets, double vanity, separate shower and whirlpool tub.
  • Upstairs you'll find three bedrooms plus a balcony overlooking the foyer below.
What's Included
  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.

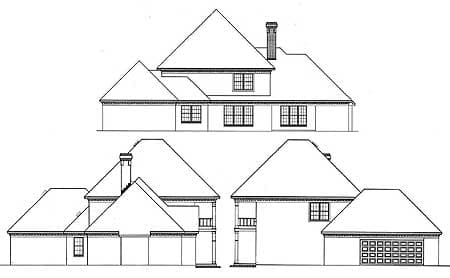

  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule
What's Not Included

  • Architectural or Engineering Stamp - handled locally if required

  • Site Plan - handled locally when required

  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Southern Splendor

  • 2,605

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

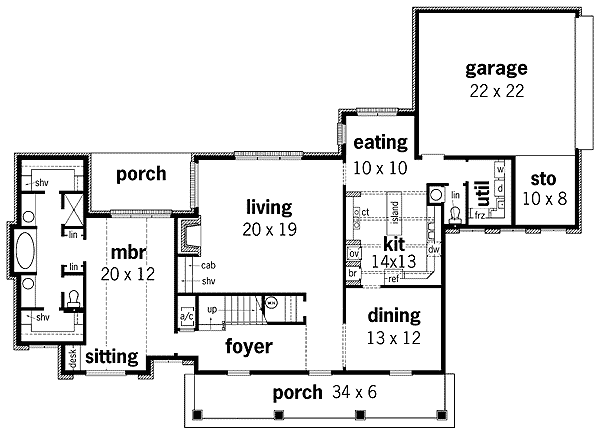

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,605 sq. ft.
  • 1st Floor: 1,750 sq. ft.
  • 2nd Floor: 855 sq. ft.

Dimensions

  • Width: 77' 0"
  • Depth: 56' 0"
  • Max ridge height: 38' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Southern Splendor

  • 2,605

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Southern Splendor

  • 2,605

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,605 sq. ft.
  • 1st Floor: 1,750 sq. ft.
  • 2nd Floor: 855 sq. ft.

Dimensions

  • Width: 77' 0"
  • Depth: 56' 0"
  • Max ridge height: 38' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Truss

    Main Level

    2nd Floor
