Southern Style 3-Bed House Plan with 2-Car Drive-Through Garage
Heated S.F.
2,689
Beds
3
Baths
2.5
Stories
1
Cars
2
Tour
What's Included
Plan Details
  • This house plan gives you 2,689 square feet of heated space with 3 beds, 2.5 baths and a 2-car garage (589 sq. ft.).
  • Past the 8'-deep front porch, you step into your foyer with the living room and first fireplace on your right.
  • Further forward, the great room is adorned by the second fireplace, and is open to the dining room and kitchen with two sets of French doors that lead directly to the 9'-deep rear-covered porch.
  • In the back of the kitchen, you'll find your mudroom and laundry, where you can access both the garage and a smaller covered porch.
  • The master bedroom, on the right side of the plan, is complete with a walk-in closet and private bath. The remaining two bedrooms sit on the opposite end of the home and share a Jack n' Jill bath.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Southern Style 3-Bed House Plan with 2-Car Drive-Through Garage

  • 2,689

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

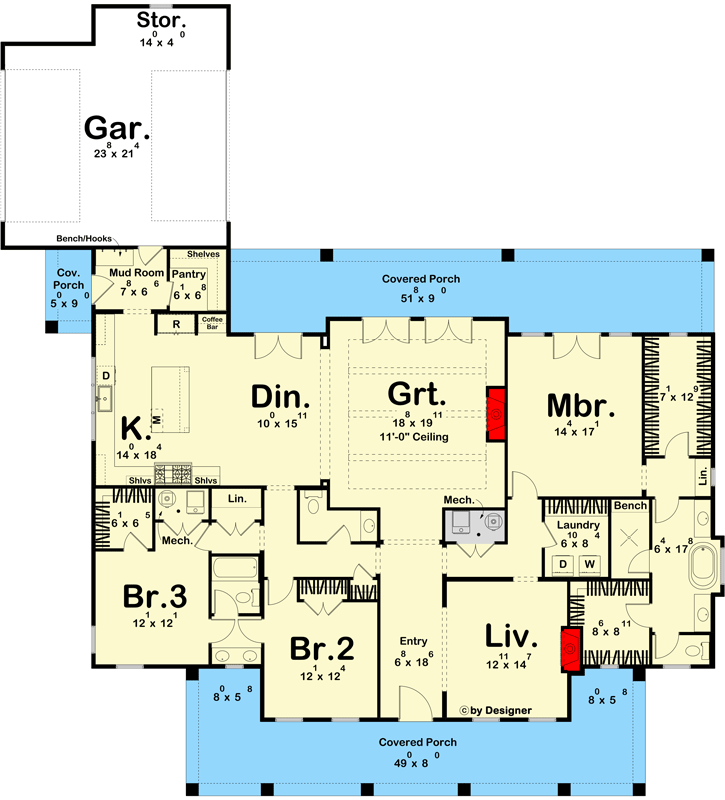

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,689 sq. ft.
  • 1st Floor: 2,689 sq. ft.

Dimensions

  • Width: 77' 0"
  • Depth: 84' 4"
  • Max ridge height: 24' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 589 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear, Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Southern Style 3-Bed House Plan with 2-Car Drive-Through Garage

  • 2,689

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Southern Style 3-Bed House Plan with 2-Car Drive-Through Garage

  • 2,689

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,689 sq. ft.
  • 1st Floor: 2,689 sq. ft.

Dimensions

  • Width: 77' 0"
  • Depth: 84' 4"
  • Max ridge height: 24' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 589 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear, Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

    Main Level
