Plan 59619ND
Southern Traditional
Heated S.F.
3,820
Beds
4
Baths
3.5
Stories
2
Cars
3
What's Included
Plan Details
  • This is a southern traditional style home plan with handicap accessible features. Imagine welcoming friends and family on the full length front porch with beautiful columns.
  • Inside, the feeling of grandeur is evident with the spacious great room, with convenient computer center nearby.
  • A charming wrap around window seat in the breakfast room provides conversation over coffee.
  • Your master suite features a personal exercise or hobby room. Upstairs, you'll discover the children's bedrooms, an office and home theater.
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

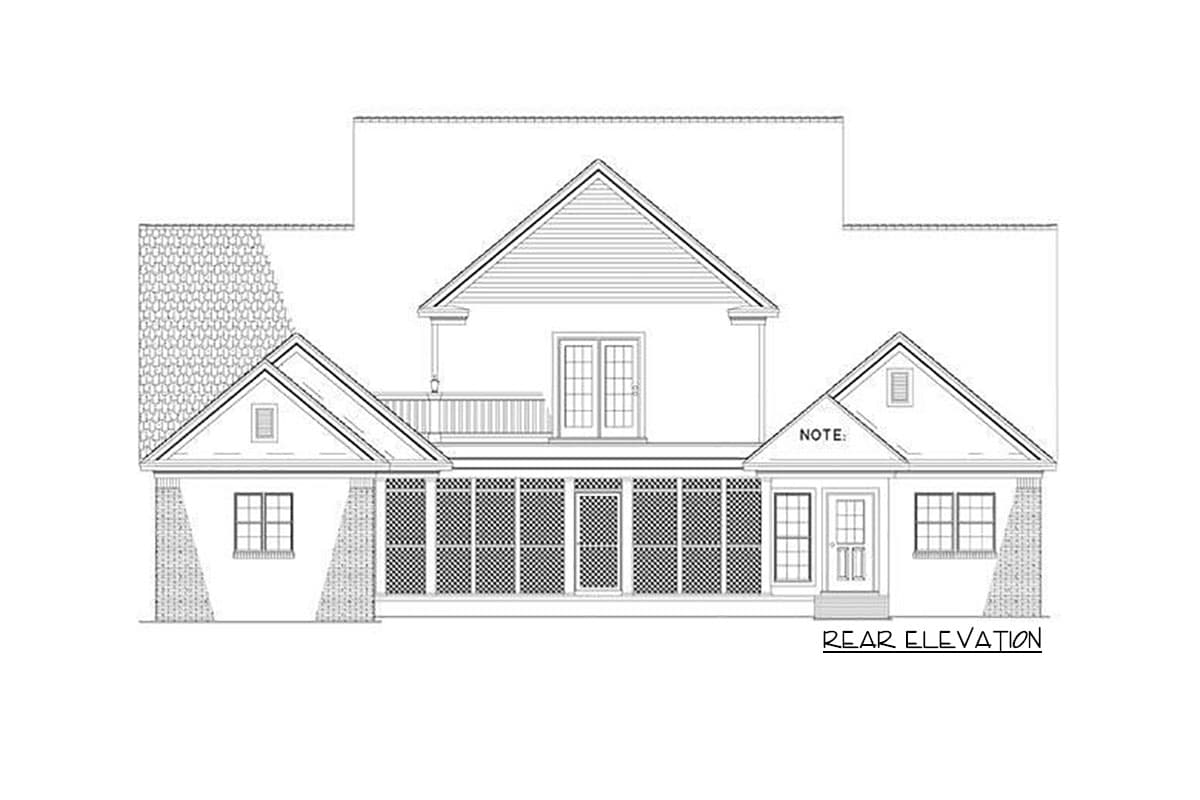

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Southern Traditional

  • 3,820

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

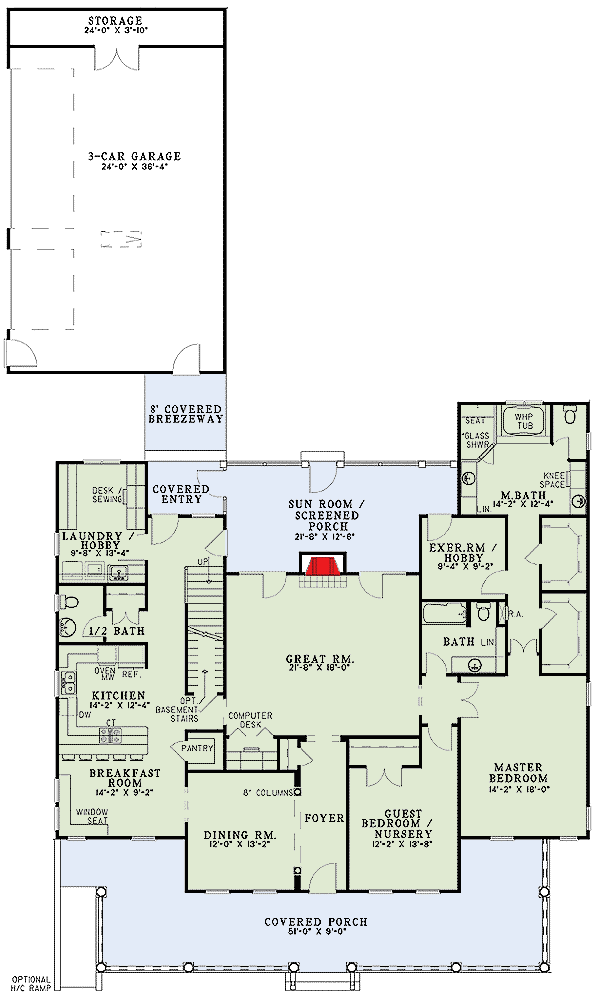

  • Main Level

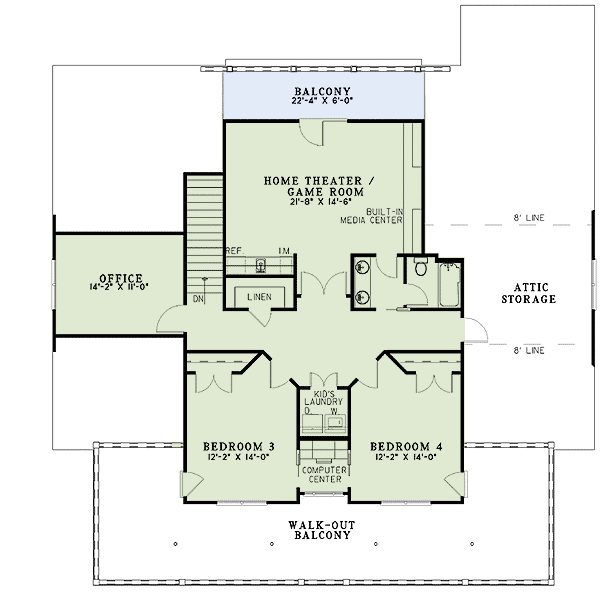

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,820 sq. ft.
  • 1st Floor: 2,484 sq. ft.
  • 2nd Floor: 1,336 sq. ft.

Dimensions

  • Width: 65' 6"
  • Depth: 108' 6"
  • Max ridge height: 32' 2"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1015 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Southern Traditional

  • 3,820

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Southern Traditional

  • 3,820

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 3,820 sq. ft.
  • 1st Floor: 2,484 sq. ft.
  • 2nd Floor: 1,336 sq. ft.

Dimensions

  • Width: 65' 6"
  • Depth: 108' 6"
  • Max ridge height: 32' 2"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1015 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
