Plan 59320ND
Southern Traditional Duplex Home Plan
Heated S.F.
2,344
Units
2
Width
78' 8"
Depth
53'
Cars
2
What's Included
Plan Details
  • Picture yourself coming home to this southern traditional duplex home plan.
  • Sit back and watch the sun set from the lovely covered porch of this traditional design.
  • Traveling inside you'll feel the openness and elegance created by the ten foot ceilings and intricate boxed columns which lead into the formal dining room.
  • Entertaining will be a success with the convenient kitchen with eat-at bar open to the dining room.
  • End your busy day by retiring to the Master suite with whirlpool tub and shower.
  • The second bedroom or optional study completes this design.
Unit A
1,172 Sq. Ft.
1172 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
1 Vehicle
Attached
161 Sq. Ft.
39' 4" w 53' d 20' h
Unit B
1,172 Sq. Ft.
1172 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
1 Vehicle
Attached
161 Sq. Ft.
39' 4" w 53' d 20' h
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Southern Traditional Duplex Home Plan

  • 2,344

    Heated s.f.

  • 2

    Units

  • 78' 8"

    Width

  • 53'

    Depth

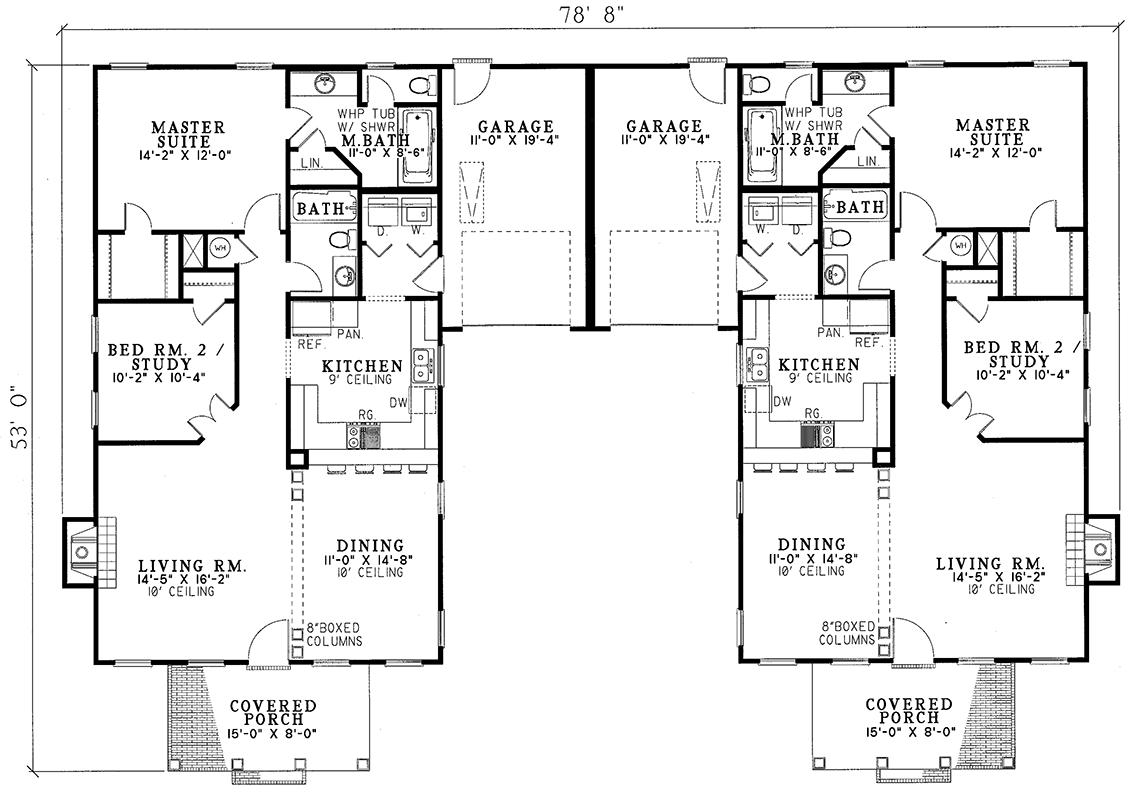

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,344 sq. ft.
  • 1st Floor: 2,344 sq. ft.

Dimensions

  • Width: 78' 8"
  • Depth: 53' 0"
  • Max ridge height: 20' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 322 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
