Plan 55232BR

Southern Traditional Duplex House Plan - 1083 Sq Ft Units

Heated S.F.
2,166
Units
2
Width
Depth

Floor Plan

Plan 55232BR

Main Level
Main Level

Plan 55232BR

M-F 9am-5pm EST |

1-203-761-8500

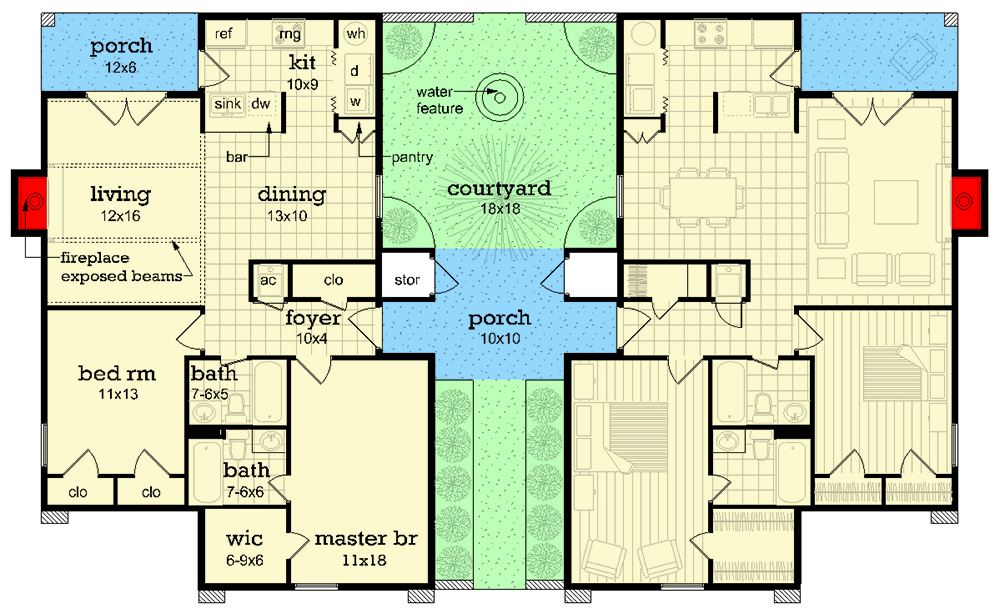

Main Level

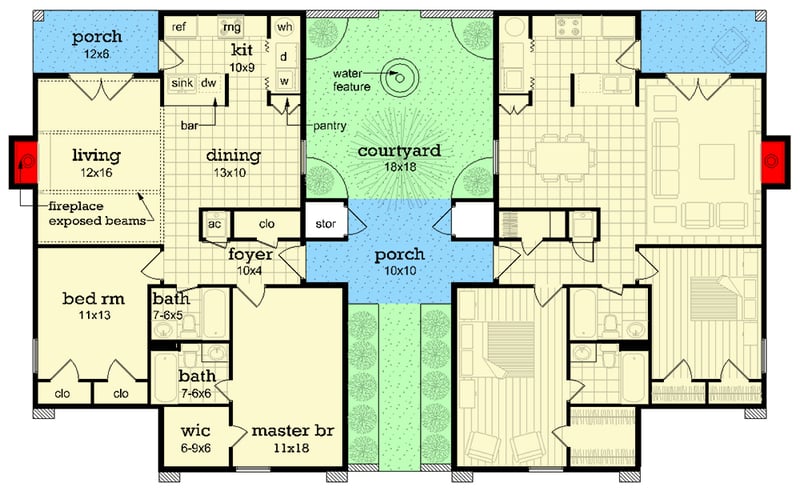

Plan 55232BR: Southern Traditional Duplex House Plan - 1083 Sq Ft Units - Floor Plan - Main Level - Southern, Southern Traditional

Plan Details

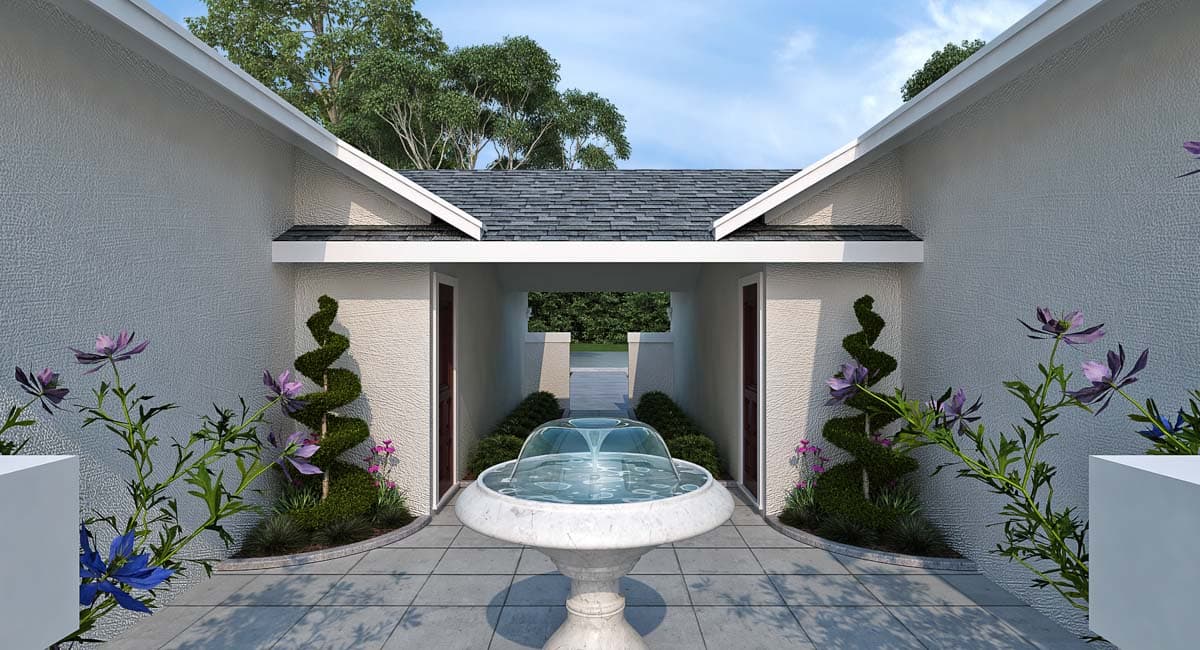

  • This duplex house plan gives you matching 2 bed, 2 bath units each with 1083 square feet of heated living space. Separating the two units is a central porch and a shared courtyard.

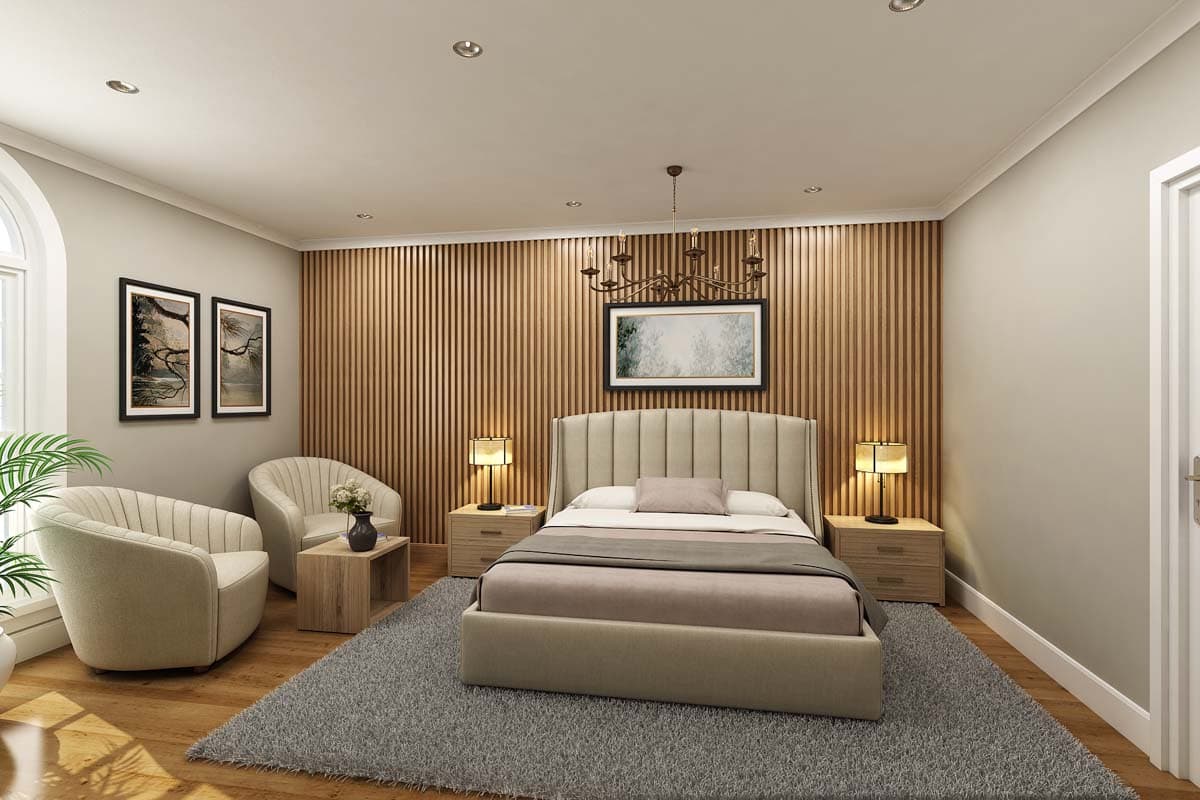

  • The bedrooms are located in the front and each one has its own bathroom.

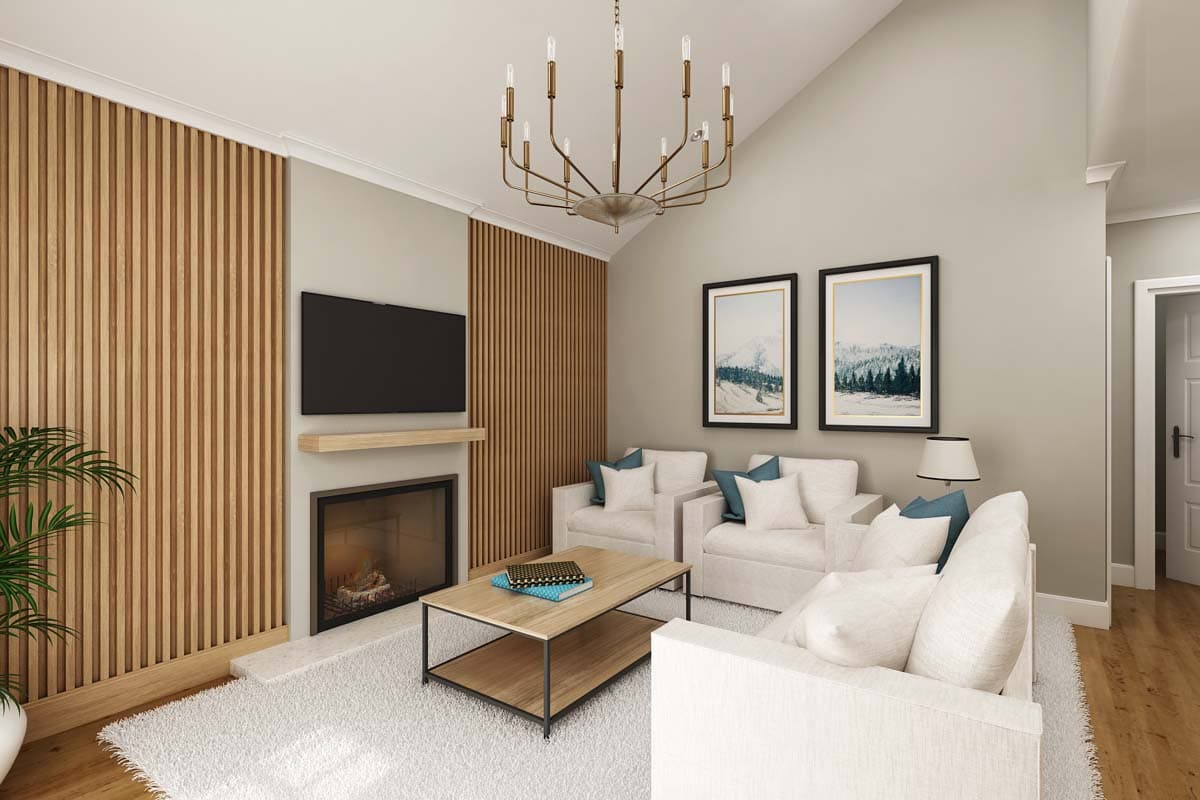

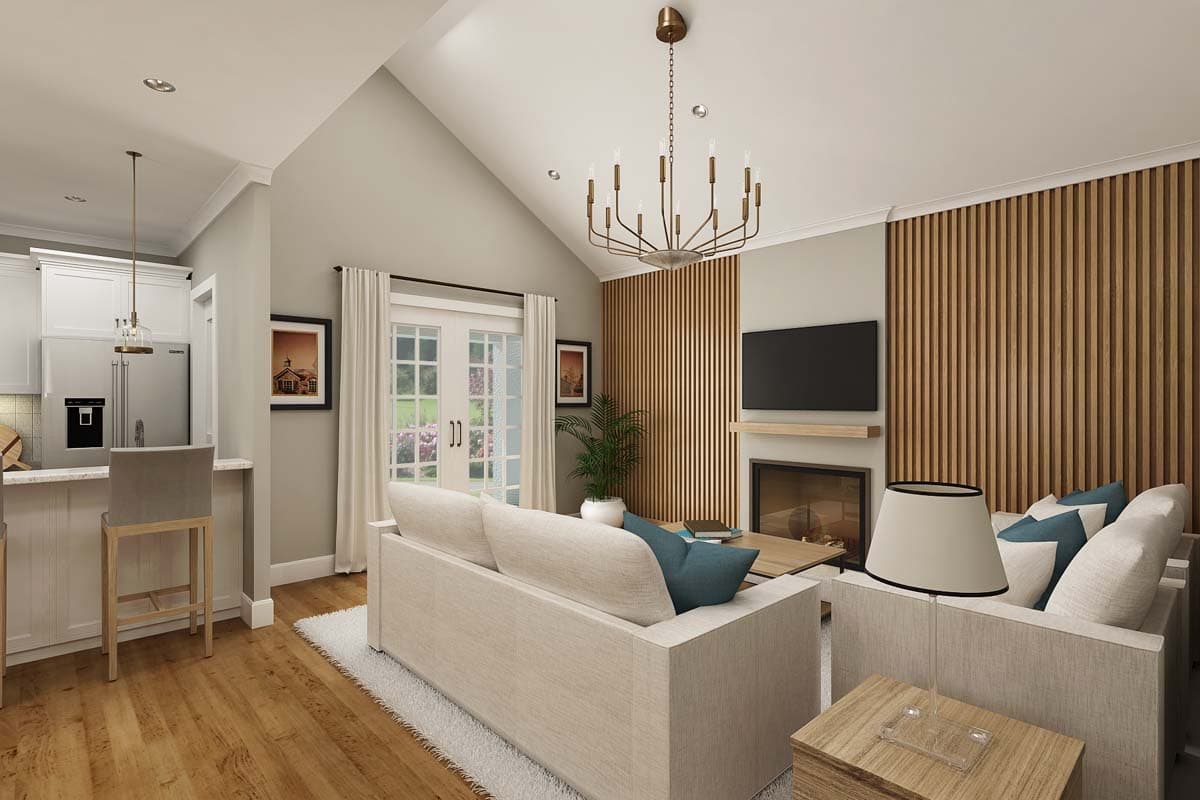

  • The living room has a fireplace and exposed beams in the ceiling. French doors open to a private 12' by 6' porch.

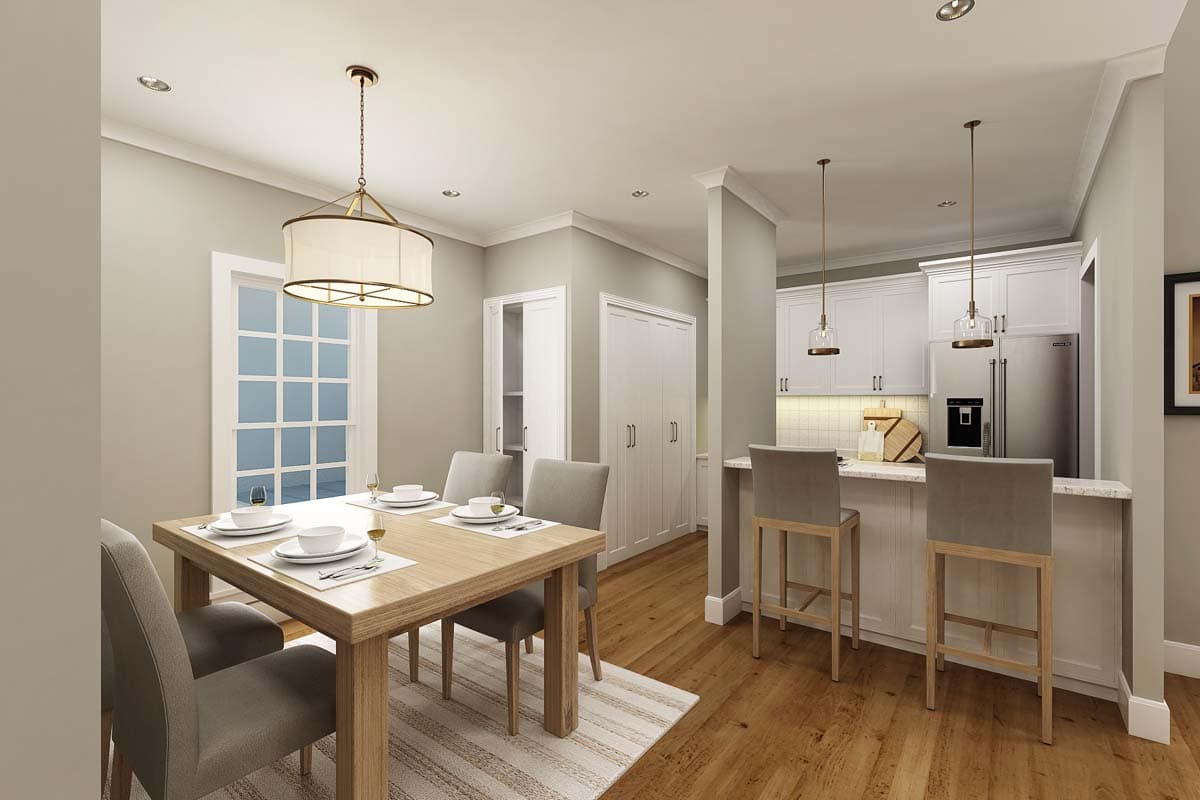

  • The kitchen has a bar separating it from the dining area and a wall pantry for storage.
Unit A
Heated Area
1,083Sq. Ft.
1083 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Dimensions
37'width
45'depth
19'height
Unit B
Heated Area
1,083Sq. Ft.
1083 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Dimensions
37'width
45'depth
19'height

What's Included

  • Cover Sheet  - with general information
  • Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation Footing - details
  • Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Elevations - which call out exterior finish materials
  • Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction Details - schedules for the interior finish, exterior finish, electrical schedule
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,166 sq. ft.

1st Floor

2,166 sq. ft.

Porch, Rear

176 sq. ft.

Courtyard

100 sq. ft.

Storage

32 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

74' 6"

Depth

45' 0"

Max Ridge Height

19' 0"

Roof Details

Primary Pitch

7 on 12

Architectural Style

Southern

Southern Traditional

Special Features

Bedrooms - Clustered

Courtyard

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,166 sq. ft.

1st Floor

2,166 sq. ft.

Porch, Rear

176 sq. ft.

Courtyard

100 sq. ft.

Storage

32 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

74' 6"

Depth

45' 0"

Max Ridge Height

19' 0"

Roof Details

Primary Pitch

7 on 12

Architectural Style

Southern

Southern Traditional

Special Features

Bedrooms - Clustered

Courtyard

Laundry - Main Level

Master Suite - 1st Floor
