Plan 59334ND

Southern Traditional Duplex House Plan with 3 Bed Units Under 190 Sq Ft

Heated S.F.
3,794
Units
2
Width
Depth

Floor Plan

Plan 59334ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59334ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

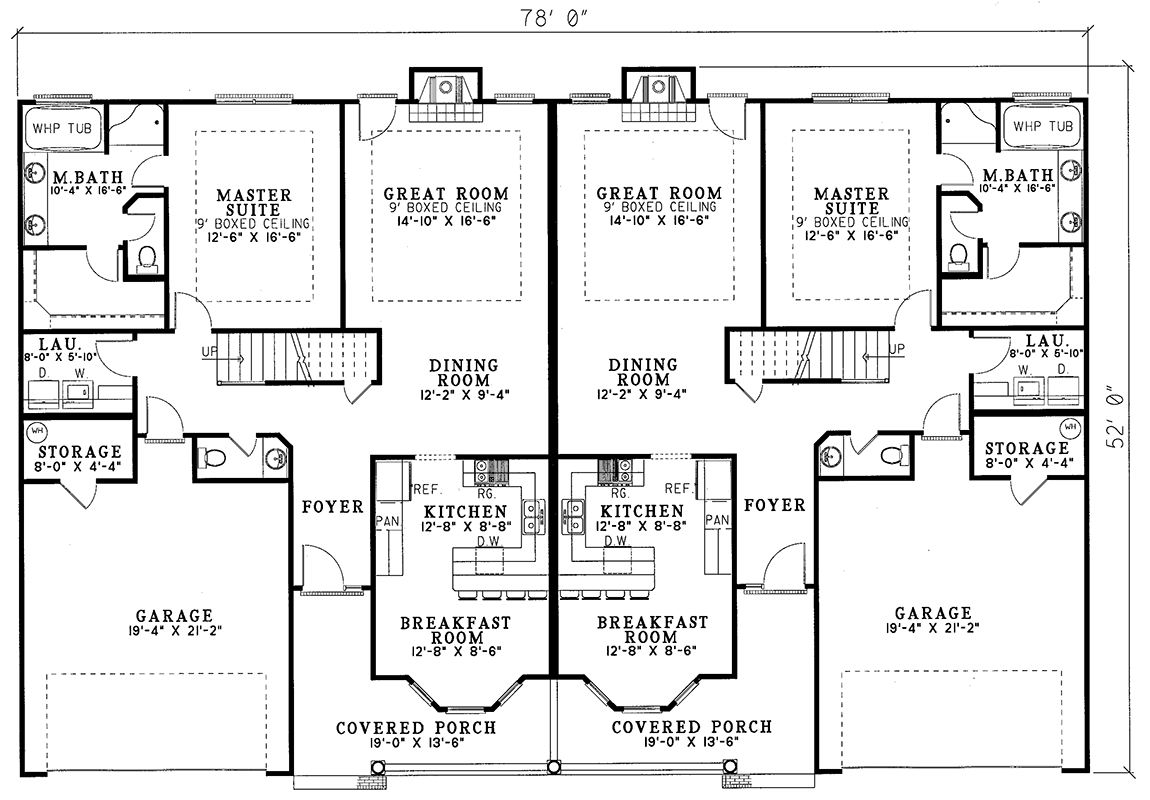

Plan 59334ND: Southern Traditional Duplex House Plan with 3 Bed Units Under 190 Sq Ft - Floor Plan - Main Level - Southern, Southern Traditional, Traditional

2nd Floor

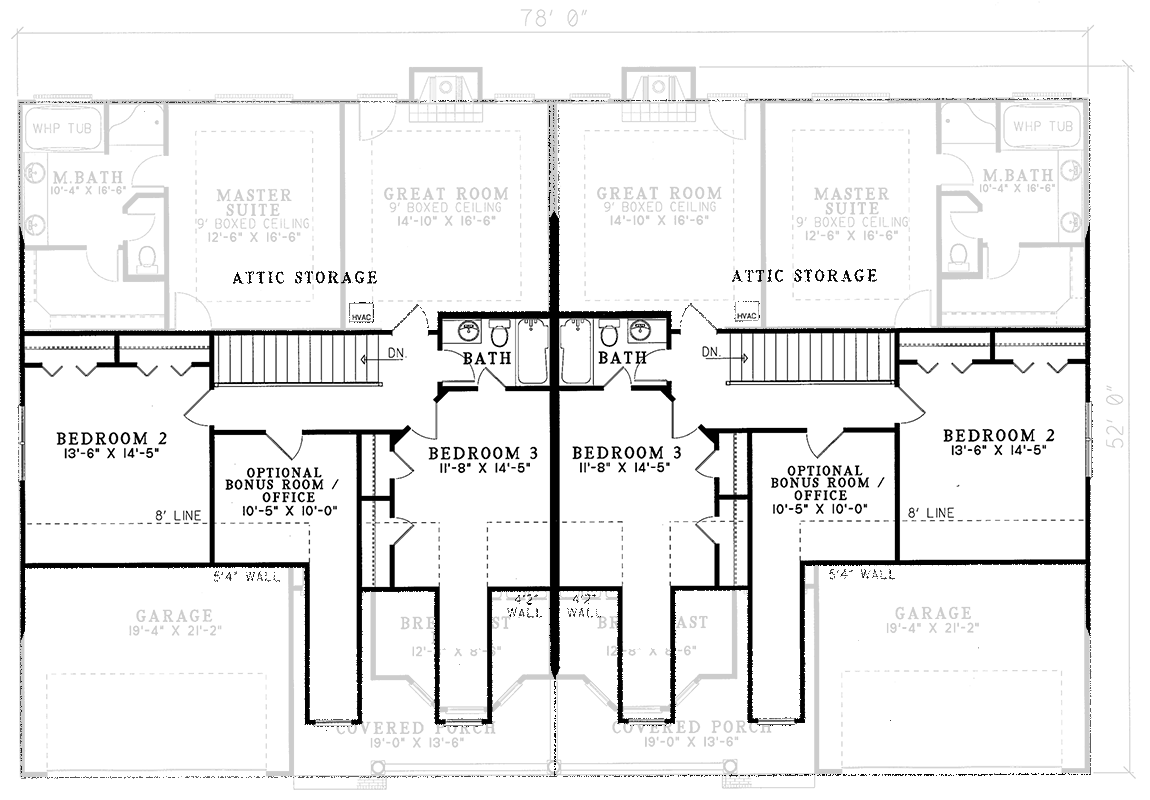

Plan 59334ND: Southern Traditional Duplex House Plan with 3 Bed Units Under 190 Sq Ft - Floor Plan - 2nd Floor - Southern, Southern Traditional, Traditional

Plan Details

  • This southern traditional duplex house plan is designed with a split bedroom plan. Each unit gives you 1,897 square feet of heated living (1,299 sq. ft. on the main floor and 598 sq. ft. on the second floor) and a 409 square foot garage.
  • Visit with family and friends of the front porch as the children play in the front yard.
  • Walking through the foyer, you'll notice the dining room, opening to the expansive great room.
  • Preparing the family's dinner is simple with fluid access to the dining room and a handy breakfast room.
  • Evenings can be spent in your master suite cuddled up reading a book or in the master bath soaking in the whirlpool bath.
  • Upstairs provides children with privacy while the optional bonus room can function as an office.
Unit A
Heated Area
1,897Sq. Ft.
1299 Sq. Ft. 1st
598 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
409 Sq. Ft.
Dimensions
39'width
52'depth
26'height
Unfinished Areas
409 Sq. Ft. Garage
Unit B
Heated Area
1,897Sq. Ft.
1299 Sq. Ft. 1st
598 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
409 Sq. Ft.
Dimensions
39'width
52'depth
26'height
Unfinished Areas
409 Sq. Ft. Garage

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,794 sq. ft.

1st Floor

2,598 sq. ft.

2nd Floor

1,196 sq. ft.

Bonus

290 sq. ft.

Porch, Front

462 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

78' 0"

Depth

52' 0"

Max Ridge Height

26' 4"

Garage

Type

Attached

Area

818 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Southern

Southern Traditional

Traditional

Special Features

Breakfast Nook

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

3,794 sq. ft.

1st Floor

2,598 sq. ft.

2nd Floor

1,196 sq. ft.

Bonus

290 sq. ft.

Porch, Front

462 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

78' 0"

Depth

52' 0"

Max Ridge Height

26' 4"

Garage

Type

Attached

Area

818 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Southern

Southern Traditional

Traditional

Special Features

Breakfast Nook

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Plan Collections

Home Office
