Plan 59326ND

Southern Traditional Duplex with Matching 3 Bed 1400 Square Foot Units

Heated S.F.
2,808
Units
2
Width
Depth

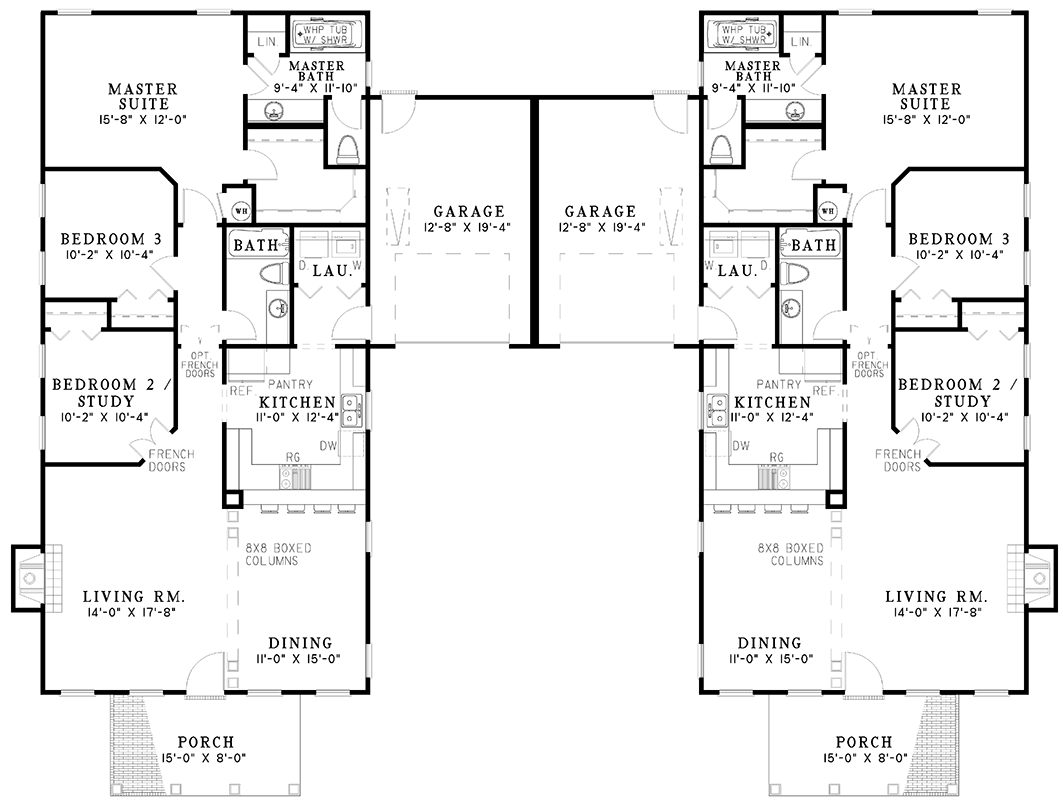

Floor Plan

Plan 59326ND

Main Level
Main Level

Plan 59326ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 59326ND: Southern Traditional Duplex with Matching 3 Bed 1400 Square Foot Units - Floor Plan - Main Level - Southern, Southern Traditional, Traditional

Plan Details

  • Four columns support the front porch on this 1,404 square foot Southern Traditional duplex house plan.
  • Bedrooms are clustered on the outside walls with the master occupying the entire back of each unit.
  • The front of the units is open concept.
  • The units are attached by one-car garages.
Unit A
Heated Area
1,404Sq. Ft.
2808 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
245 Sq. Ft.
Dimensions
41' 4"width
62'depth
19'height
Unfinished Areas
245 Sq. Ft. Garage
490 Sq. Ft. Attached
550 Sq. Ft. Porch, Combined
Unit B
Heated Area
1,404Sq. Ft.
1404 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
245 Sq. Ft.
Dimensions
41' 4"width
62'depth
19'height
Unfinished Areas
245 Sq. Ft. Garage
275 Sq. Ft. Porch, Combined

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,808 sq. ft.

1st Floor

2,808 sq. ft.

Porch, Combined

550 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

82' 8"

Depth

62' 0"

Max Ridge Height

19' 10"

Garage

Type

Attached

Area

490 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Southern Traditional

Traditional

Special Features

Bedrooms - Clustered

Flex Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,808 sq. ft.

1st Floor

2,808 sq. ft.

Porch, Combined

550 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

82' 8"

Depth

62' 0"

Max Ridge Height

19' 10"

Garage

Type

Attached

Area

490 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Southern Traditional

Traditional

Special Features

Bedrooms - Clustered

Flex Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor
