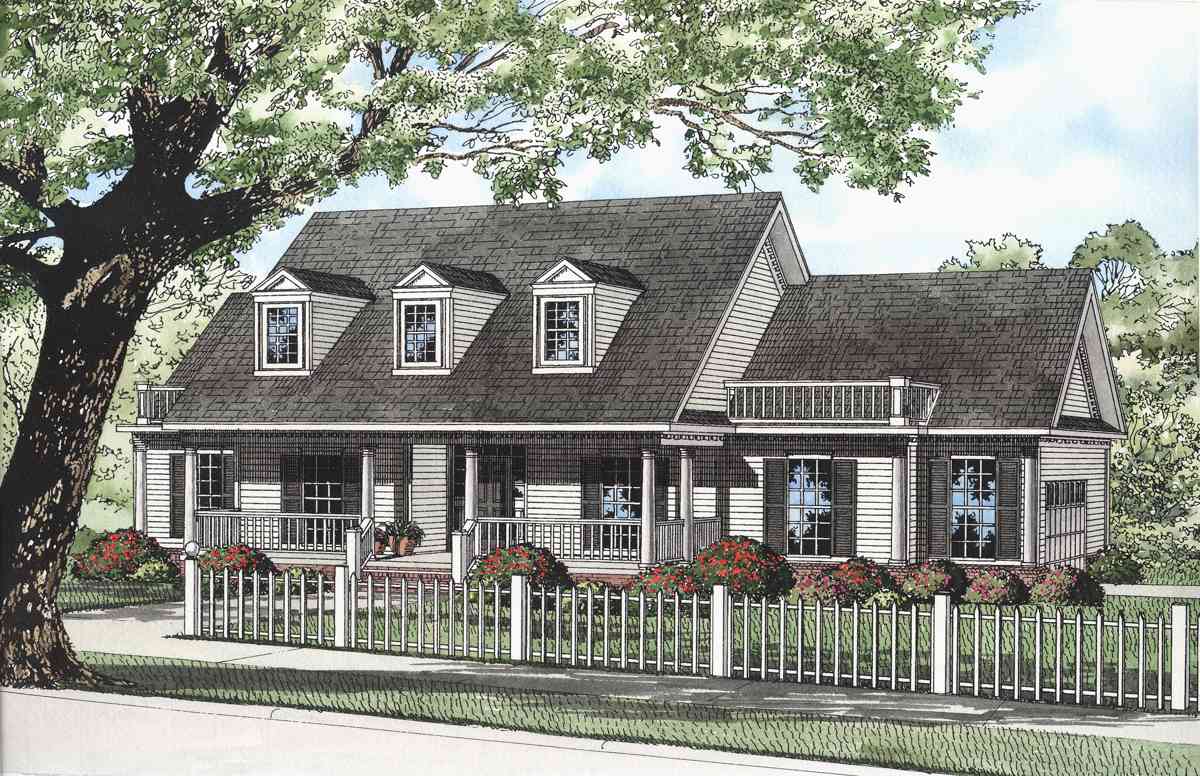

Plan 59147ND Southern Traditional Home Plan

Southern Traditional Home Plan

Plan 59147ND

  • 1,989

    Heated s.f.

  • 2-3

    Beds

  • 2 - 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • This functional home maintains the charm of a Historical Southern Traditional plan.
  • Entertaining family during the holidays will be easy with the spacious dining room and expansive great room with a 10' boxed ceiling. The front and rear covered porches offer more space for relaxing.
  • The accommodating kitchen offers a snack bar for serving meals buffet-style. Optional French doors are available for the front bedroom, making the perfect study for both quiet time and office work.
  • Family will feel like royalty in the upstairs home theater and game room with a convenient bathroom and plenty of attic storage.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

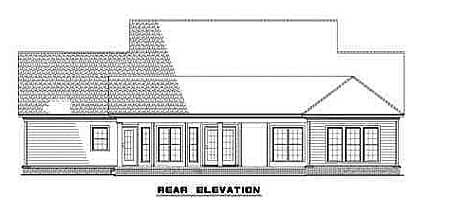

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

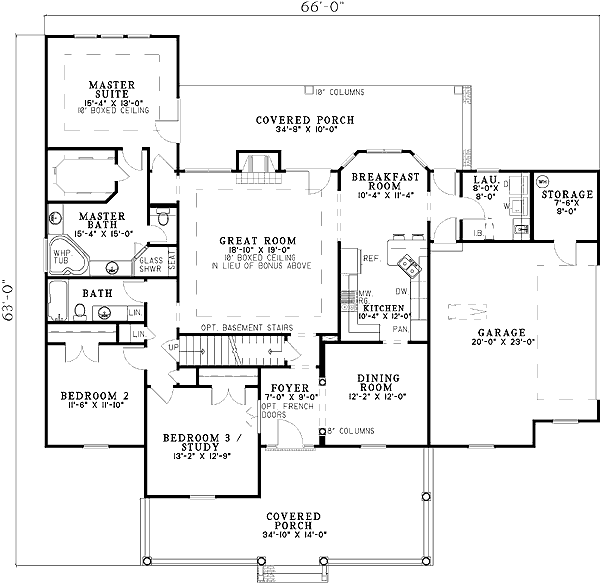

Southern Traditional Home Plan - 59147ND floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Southern Traditional Home Plan - 59147ND floor plan - 2nd Floor

Plan details

Southern Traditional Home Plan

  • 1,989

    Heated s.f.

  • 2-3

    Beds

  • 2 - 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $800
  • 5 Sets $900
  • 5 Sets + PDF $1,150
  • CAD + PDF - Single Build $1,600
  • View all purchase option online

About This Plan

  • This functional home maintains the charm of a Historical Southern Traditional plan.
  • Entertaining family during the holidays will be easy with the spacious dining room and expansive great room with a 10' boxed ceiling. The front and rear covered porches offer more space for relaxing.
  • The accommodating kitchen offers a snack bar for serving meals buffet-style. Optional French doors are available for the front bedroom, making the perfect study for both quiet time and office work.
  • Family will feel like royalty in the upstairs home theater and game room with a convenient bathroom and plenty of attic storage.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,989 sq. ft.
  • 1st Floor: 1,989 sq. ft.
  • Bonus: 471 sq. ft.
  • Porch, Combined: 704 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 66' 0"
  • Depth: 63' 0"
  • Max ridge height: 25' 8"

Garage

  • Type: Attached
  • Area: 537 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
