Plan 36641TX Southern Traditional Home Plan with Wrap-around Porch

3,309 4 4.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Southern Traditional Home Plan with Wrap-around Porch

Plan 36641TX

  • 3,309

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • The stacked front porch on this Southern traditional home plan makes a great first impression, while an abundance of windows throughout the design ensure a light and airy interior.
  • French doors guide you indoors where the staircase serves as a focal point. To the right, a quiet office includes a fireplace and connects to the master suite. To the left, discover a generous family room with a fireplace, bay window, and wet bar.
  • The kitchen opens to a breakfast nook, where a rear patio offers a space to grill. The adjacent laundry room helps you when multi-tasking, and leads to the rear-facing 3-car garage.
  • Enjoy the convenience of a main-level master suite, accompanied by a 5-fixture bath with two walk-in closets.
  • Three bedroom suites are located upstairs, along with a game room.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

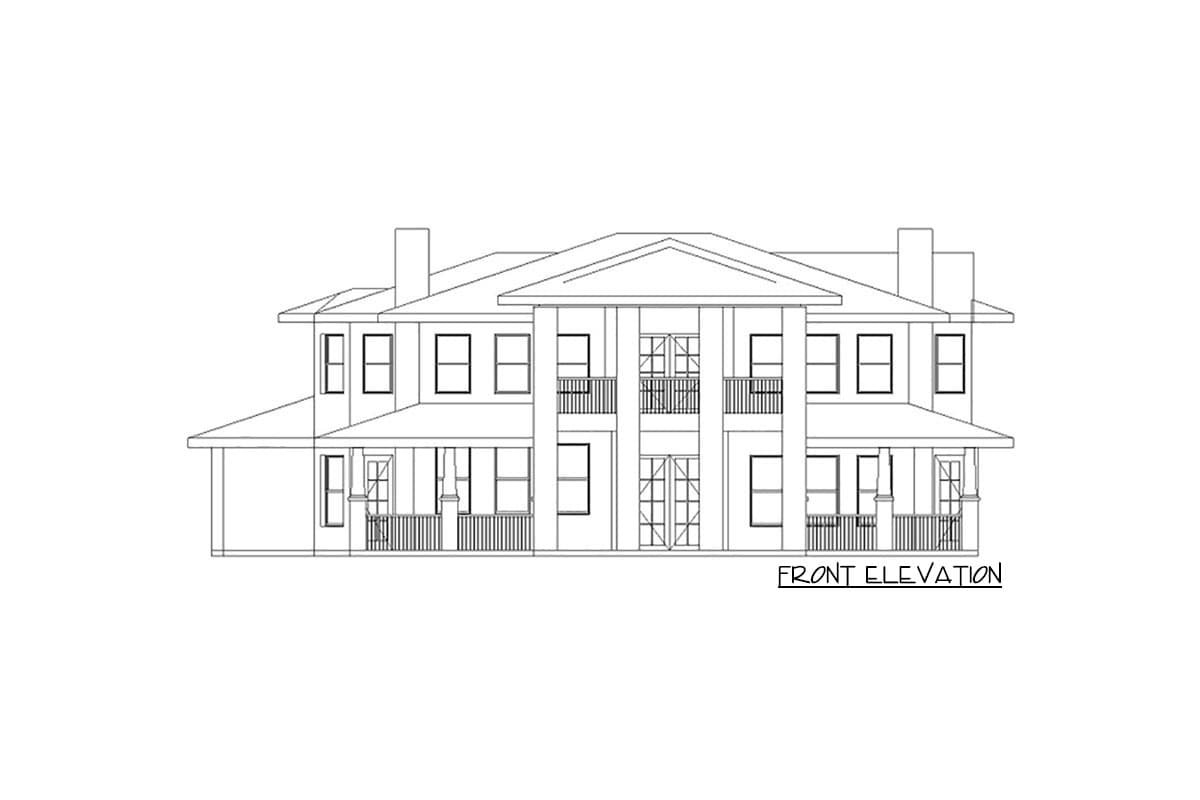

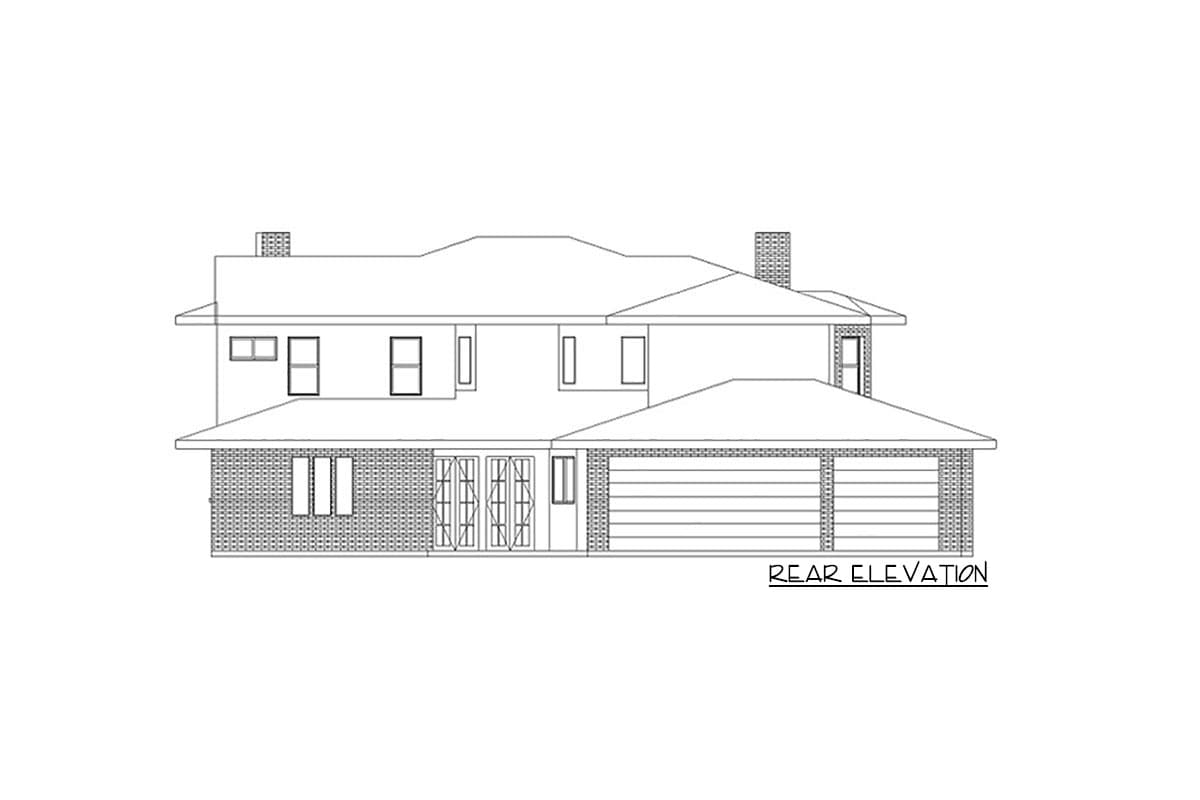

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

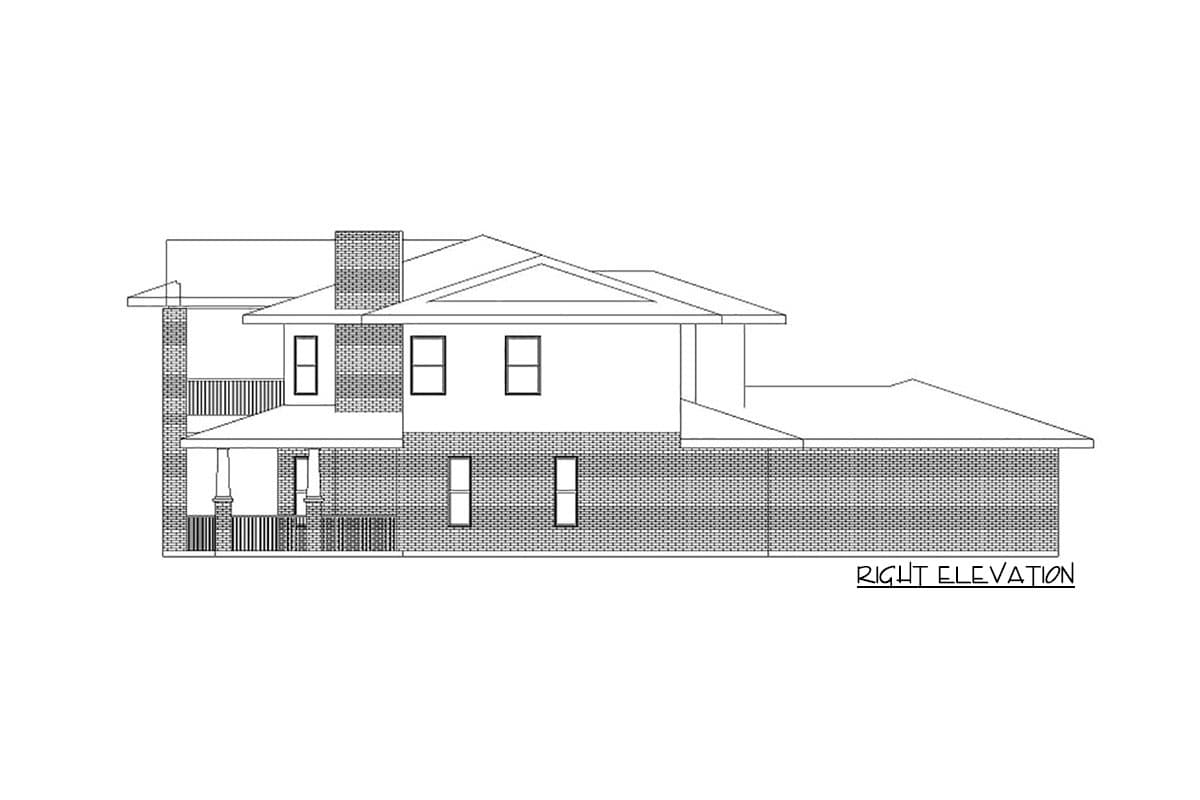

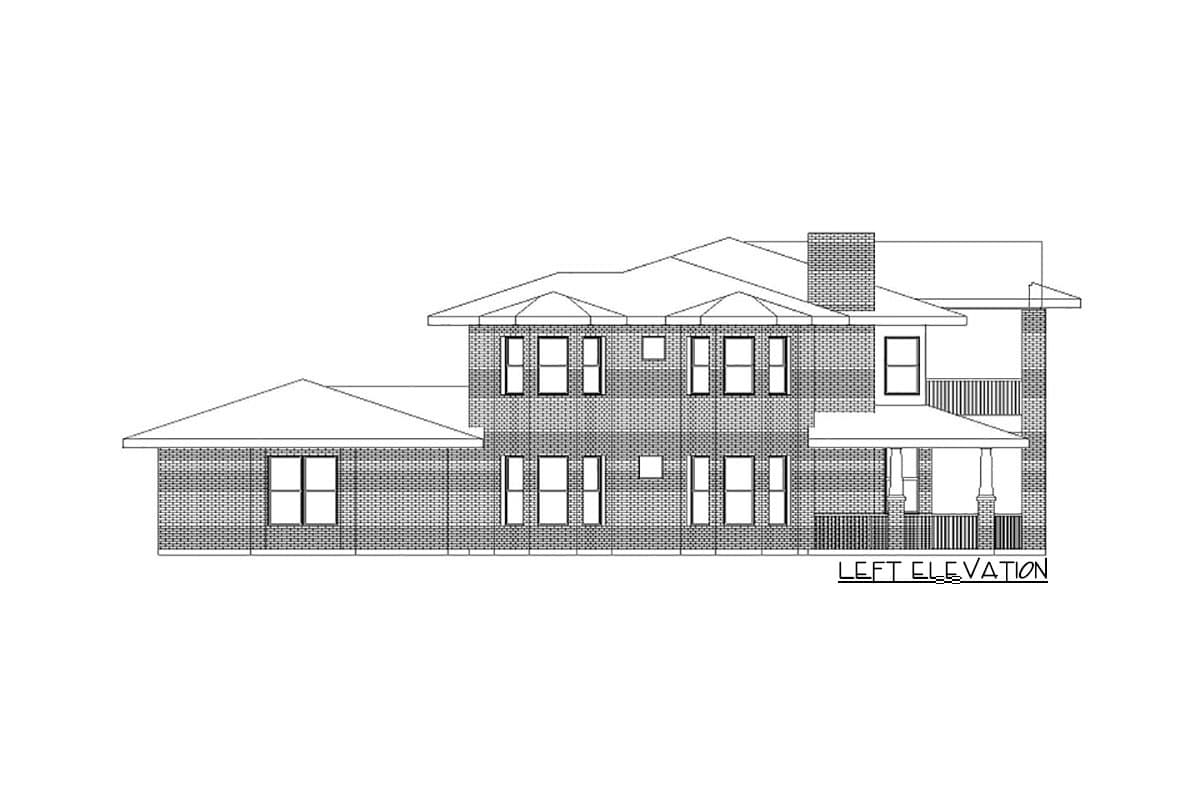

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

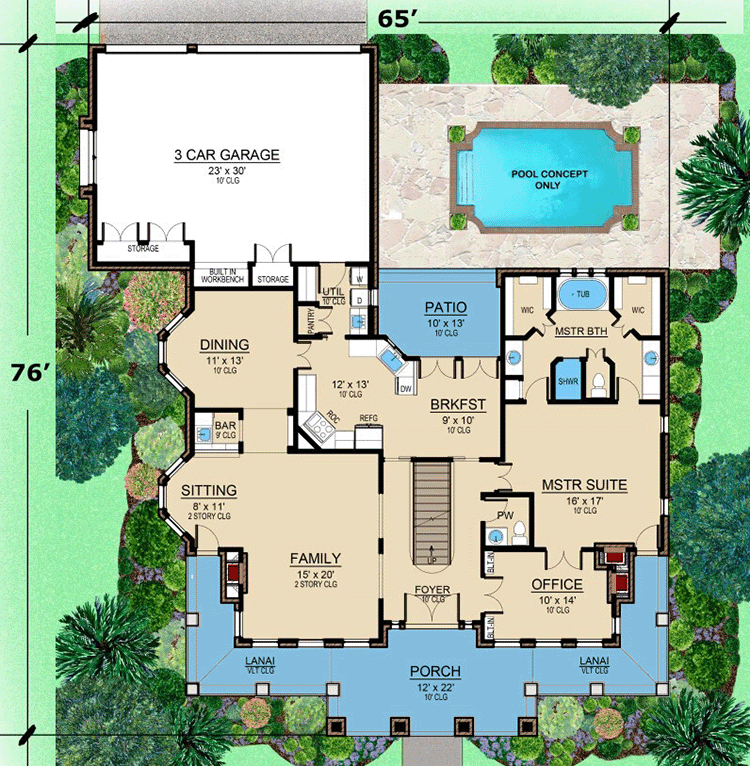

Southern Traditional Home Plan with Wrap-around Porch - 36641TX floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

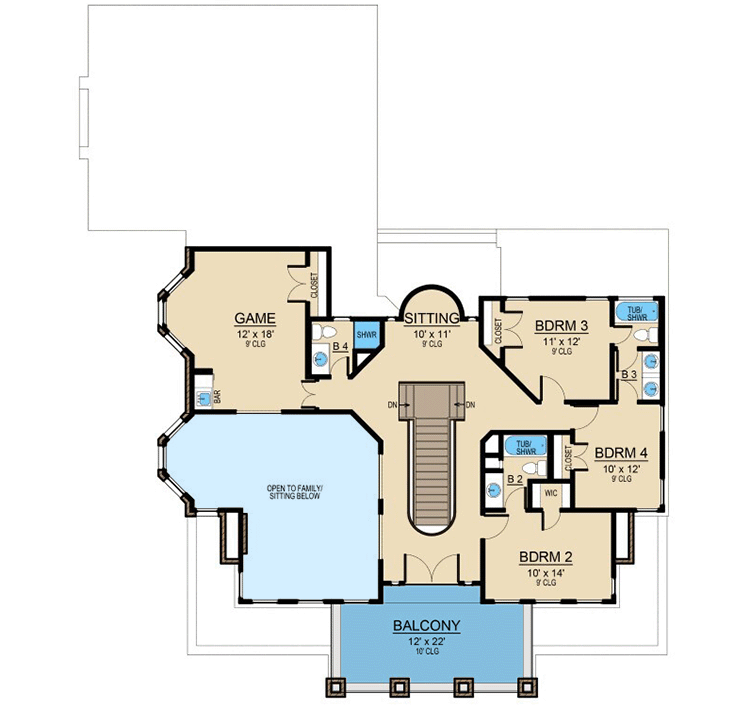

Southern Traditional Home Plan with Wrap-around Porch - 36641TX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,309 sq. ft.
  • 1st Floor: 1,927 sq. ft.
  • 2nd Floor: 1,382 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 65' 0"
  • Depth: 76' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 803 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 4 on 12

Architectural Style

Special features

Plan Collections

Southern Traditional Home Plan with Wrap-around Porch

  • 3,309

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,515
  • 5 Sets $1,715
  • CAD - Single-Build $2,275
  • View all purchase option online

About This Plan

  • The stacked front porch on this Southern traditional home plan makes a great first impression, while an abundance of windows throughout the design ensure a light and airy interior.
  • French doors guide you indoors where the staircase serves as a focal point. To the right, a quiet office includes a fireplace and connects to the master suite. To the left, discover a generous family room with a fireplace, bay window, and wet bar.
  • The kitchen opens to a breakfast nook, where a rear patio offers a space to grill. The adjacent laundry room helps you when multi-tasking, and leads to the rear-facing 3-car garage.
  • Enjoy the convenience of a main-level master suite, accompanied by a 5-fixture bath with two walk-in closets.
  • Three bedroom suites are located upstairs, along with a game room.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,309 sq. ft.
  • 1st Floor: 1,927 sq. ft.
  • 2nd Floor: 1,382 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 65' 0"
  • Depth: 76' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 803 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
