Plan 55139BR

Southern Traditional With Energy Savings

Heated S.F.
2,240
Beds
4
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 55139BR

Main Level
Main Level

Plan 55139BR

M-F 9am-5pm EST |

1-203-761-8500

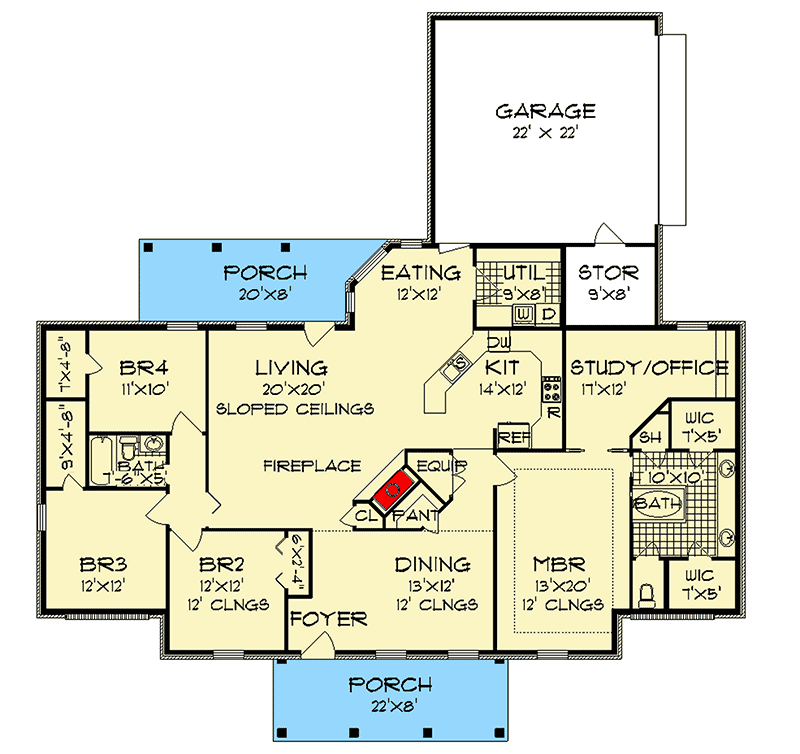

Main Level

Plan 55139BR: Southern Traditional With Energy Savings - Floor Plan - Main Level - Southern, Traditional

Plan Details

  • This southern traditional house plan is packed with luxurious features including 12' ceilings in the master suite, dining room, foyer and front secondary bedroom.
  • The living room and kitchen have sloped ceilings that enhance the open feel. All other rooms have 9' ceilings. The master bath offers a spa tub, his and her walk-in closets, separate shower and a private toilet compartment. The master suite is huge and it has an adjoining
  • office/study with a built in desk.
  • The home was designed with energy savings in mind, and includes a number of progresive features including 2x6 exterior walls with R19 insulation, a modified roof design to accommodate 12" thick R38 ceiling insulation, centrally located plumbing and heating/AC for added efficiency
  • Properly oriented, this home plan is designed to provide natural solar gain and using new and improved framing techniques, you'll be able to insulate areas that previously were unable to receive insulation.

What's Included

  • Cover Sheet  - with general information
  • Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation Footing - details
  • Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Elevations - which call out exterior finish materials
  • Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction Details - schedules for the interior finish, exterior finish, electrical schedule
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,240 sq. ft.

1st Floor

2,240 sq. ft.

Porch, Front

176 sq. ft.

Porch, Rear

168 sq. ft.

Storage

72 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

68' 0"

Depth

70' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

484 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Walk-in Pantry

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

2,240 sq. ft.

1st Floor

2,240 sq. ft.

Porch, Front

176 sq. ft.

Porch, Rear

168 sq. ft.

Storage

72 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

68' 0"

Depth

70' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

484 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Split

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Walk-in Pantry

Plan Collections

Home Office
