Southern Transitional House Plan with Pool Concept

Plan 65636BS

This plan plants 3 trees

3,182
Heated s.f.
3-4
Beds
3.5
Baths
1
Stories
3
Cars

Each of the rear-facing rooms in this Southern, transitional house plan offers access to the back porch through oversized sliding doors for a true indoor outdoor living experience.
The spacious kitchen encourages families to cook together and includes an island, large range, and adjoining dining room.
The master bedroom occupies the left side of the home and boasts two walk-in closets bordering the hallway to the deluxe ensuite with two sinks and a custom tile shower.
Three bedrooms can be found behind the 3-car garage; two include a full bath, and one can be utilized as a study or guest bedroom.
Enter from the family entrance to find a laundry room behind a pocket door to the right.
BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.

Plans include the following:

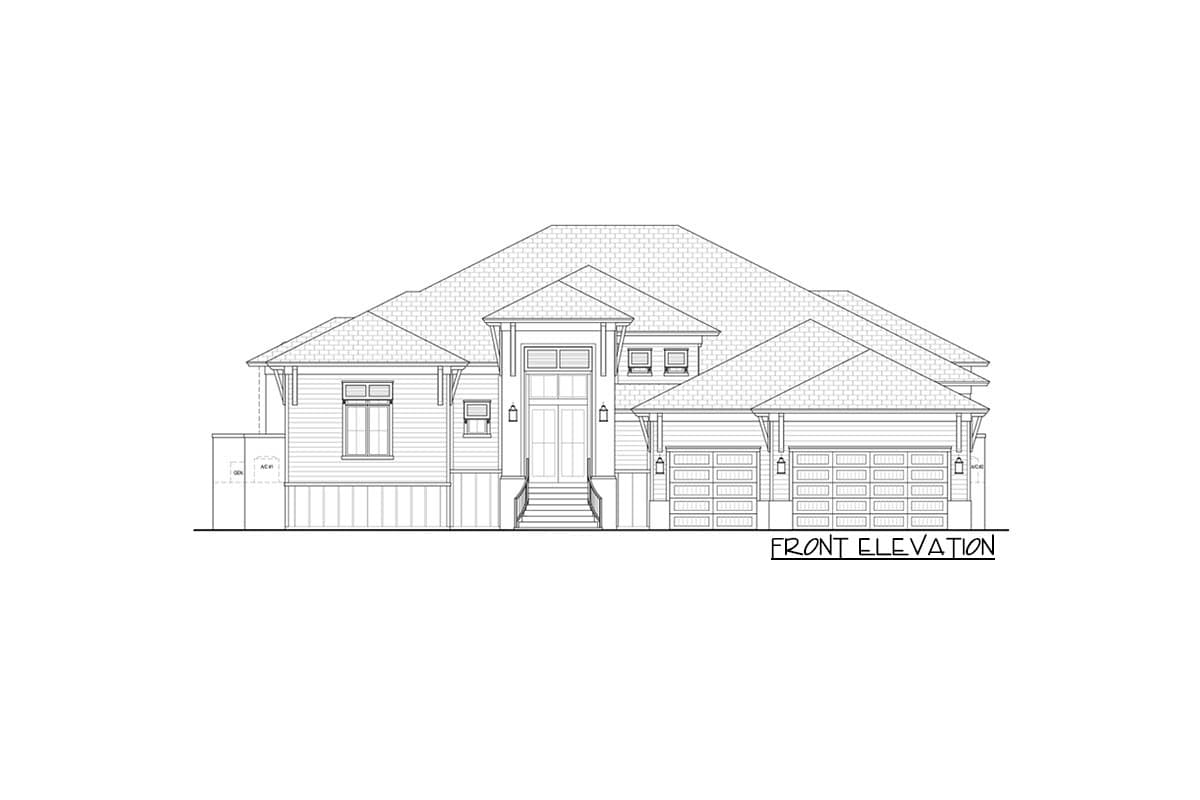

Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Material Labels
Floor-To-Floor Heights
Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts:

Building Section Markers
All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges and Valley
Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

Floor-To-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness
Insulation Type and Thickness

Miscellaneous Notes and Details:

Miscellaneous General Notes
Stairway Details (if applicable)

IMPORTANT NOTE: Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc. Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

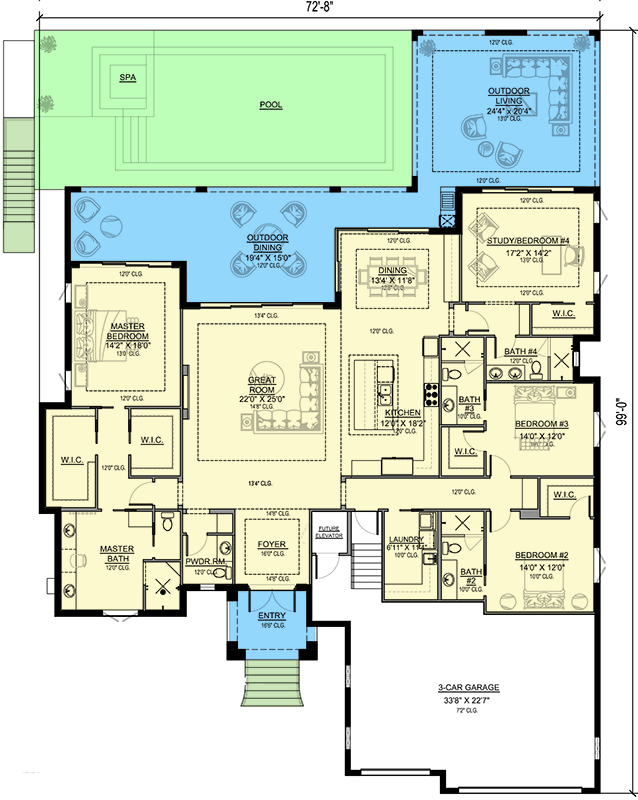

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Southern Transitional House Plan with Pool Concept - 65636BS floor plan - Main Level

Plan details

Square Footage Breakdown

Total Heated Area: 3,182 sq. ft.
1st Floor: 3,182 sq. ft.

Lanai: 1,020 sq. ft.
Entry: 99 sq. ft.

Beds/Baths

Bedrooms: 3 or 4

Full bathrooms: 3
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): Block / CMU (main floor)

Optional Type(s): 2x6

Dimensions

Width: 72' 8"
Depth: 99' 0"
Max ridge height: 33' 3"

Garage

Type: Attached
Area: 890 sq. ft.
Count: 3 Cars
Entry Location: Front

Roof Details

Primary Pitch: 6 on 12

Framing Type: Truss

Architectural Style

Special features
