Spacious 4-Bed Home Plan with Angled Keeping Room

Pageloader

Spacious 4-Bed Home Plan with Angled Keeping Room

Plan 710133BTZ

  • 3,231

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • This spacious 4-bed cottage house plan has a beautiful exterior with stacked stone and brick, cedar shake, Tudor windows and even decorative timbering.
  • An open floorplan includes the family room, keeping room with fireplace, kitchen with Workhorse Island and attached breakfast area.
  • A large vaulted porch and second deck are just through a door off of the kitchen.
  • The master suite encompasses the left wing of this floor, and includes a spacious master bath and walk-in closet. A guest suite is across the home and comes with plenty of closet space and a full bath.
  • Upstairs, two more bedrooms with roomy full baths can be found. An optional bonus room is just down the hall; ideal for an entertainment space or fourth bedroom.
  • Related Plans: Get alternate exteriors with house plans 710131BTZ and 710132BTZ.

The plans include the following:

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.


Floor Plan

Plan details



Spacious 4-Bed Home Plan with Angled Keeping Room

  • 3,231

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,490
  • 8 Sets $1,580
  • PDF - multi-use $1,730
  • Reproducible Set $1,815
  • CAD - multi-use $3,300
  • View all purchase option online

About This Plan

  • This spacious 4-bed cottage house plan has a beautiful exterior with stacked stone and brick, cedar shake, Tudor windows and even decorative timbering.
  • An open floorplan includes the family room, keeping room with fireplace, kitchen with Workhorse Island and attached breakfast area.
  • A large vaulted porch and second deck are just through a door off of the kitchen.
  • The master suite encompasses the left wing of this floor, and includes a spacious master bath and walk-in closet. A guest suite is across the home and comes with plenty of closet space and a full bath.
  • Upstairs, two more bedrooms with roomy full baths can be found. An optional bonus room is just down the hall; ideal for an entertainment space or fourth bedroom.
  • Related Plans: Get alternate exteriors with house plans 710131BTZ and 710132BTZ.

Floor Plans

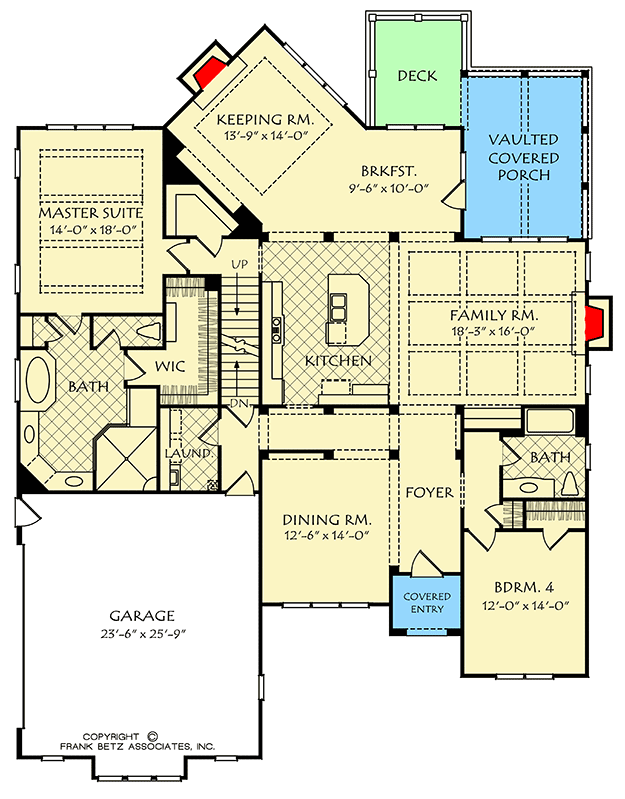

  • Main Level

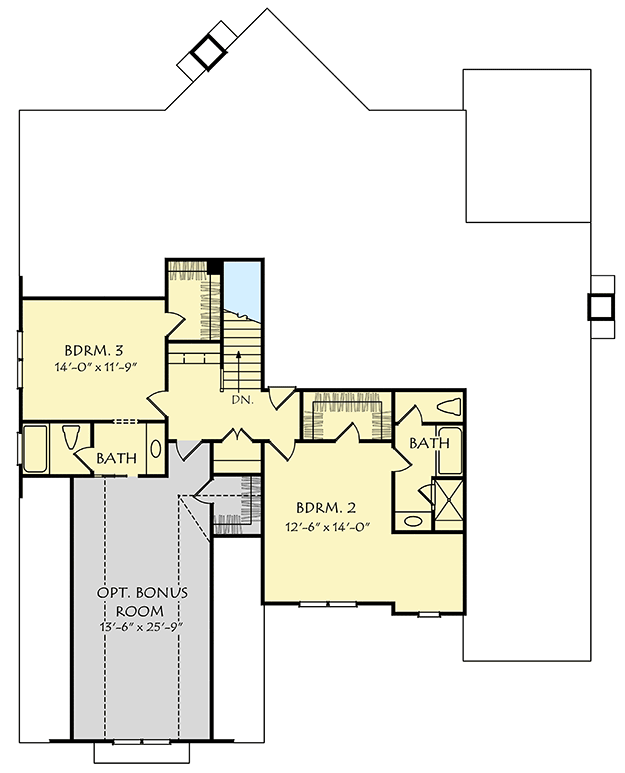

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,231 sq. ft.
  • 1st Floor: 2,404 sq. ft.
  • 2nd Floor: 827 sq. ft.
  • Bonus: 406 sq. ft.
  • Basement Unfinished: 2,404 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 56' 0"
  • Depth: 74' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 639 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
