Spacious Colonial with Game Room and Child's Study

Plan 9389EL

  • 4,320

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Fireplaces warm the vaulted study and vaulted dining room of this gracious Colonial house plan.
  • Interior columns are used instead of walls to give you a clear view from the large foyer into the great room.
  • A wide opening on one side reveals the large kitchen that swings around to the vaulted family dining area.
  • A half wall in the family dining area makes the room feel larger.
  • The huge master suite gets place of honor at the back of the house away from street noise.
  • With its spacious master bathroom and giant walk-in closet, homeowners will feel truly pampered.
  • Three large bedroom suite on the second floor are located near the quiet child's study.
  • When homework's done, the big game room awaits.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan

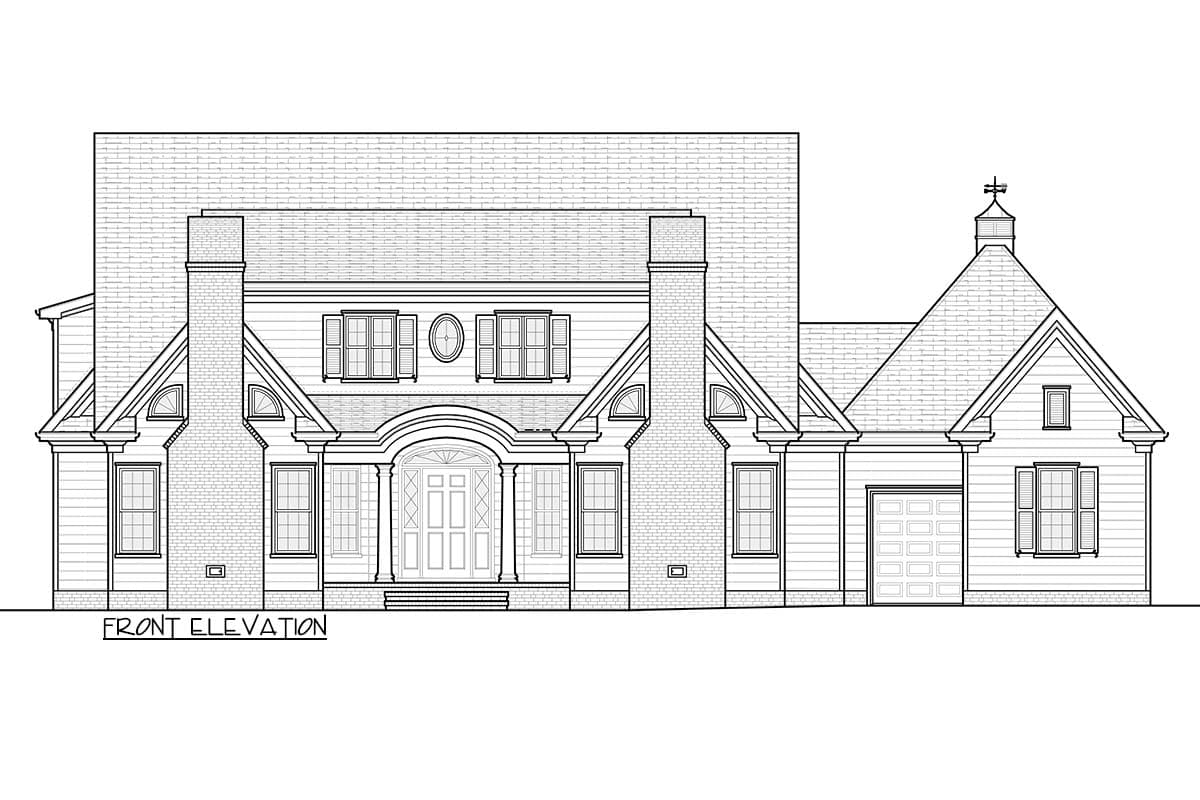

  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

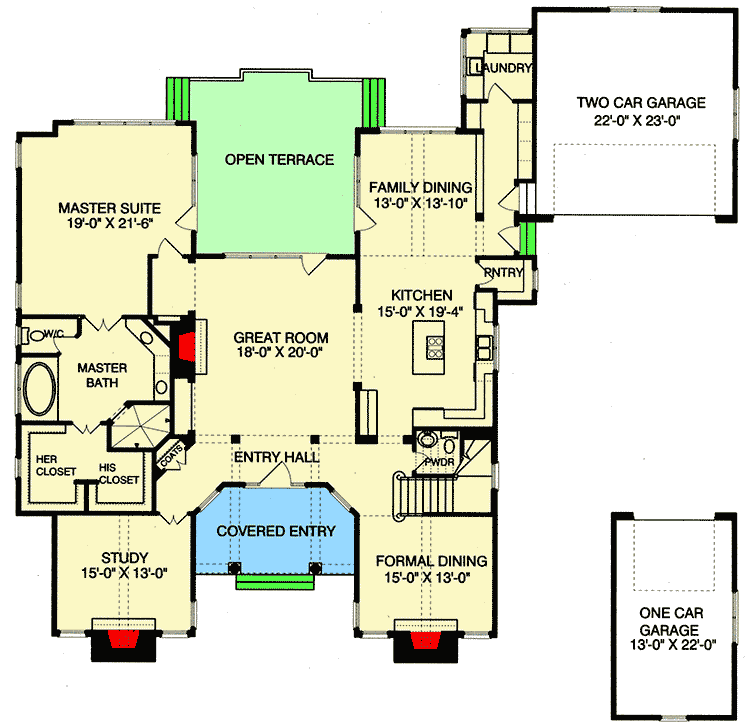

Spacious Colonial with Game Room and Child's Study - 9389EL floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Spacious Colonial with Game Room and Child's Study - 9389EL floor plan - 2nd Floor

Spacious Colonial with Game Room and Child's Study

  • 4,320

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,320 sq. ft.
  • 1st Floor: 2,630 sq. ft.
  • 2nd Floor: 1,690 sq. ft.

Dimensions

  • Width: 80' 0"
  • Depth: 80' 0"
  • Max ridge height: 32' 9"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 872 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Rear

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 14 on 12
