Spacious Craftsman Home Plan

Plan 9527RW

6,837
Heated s.f.
6
Beds
4.5+
Baths
2
Stories
3
Cars

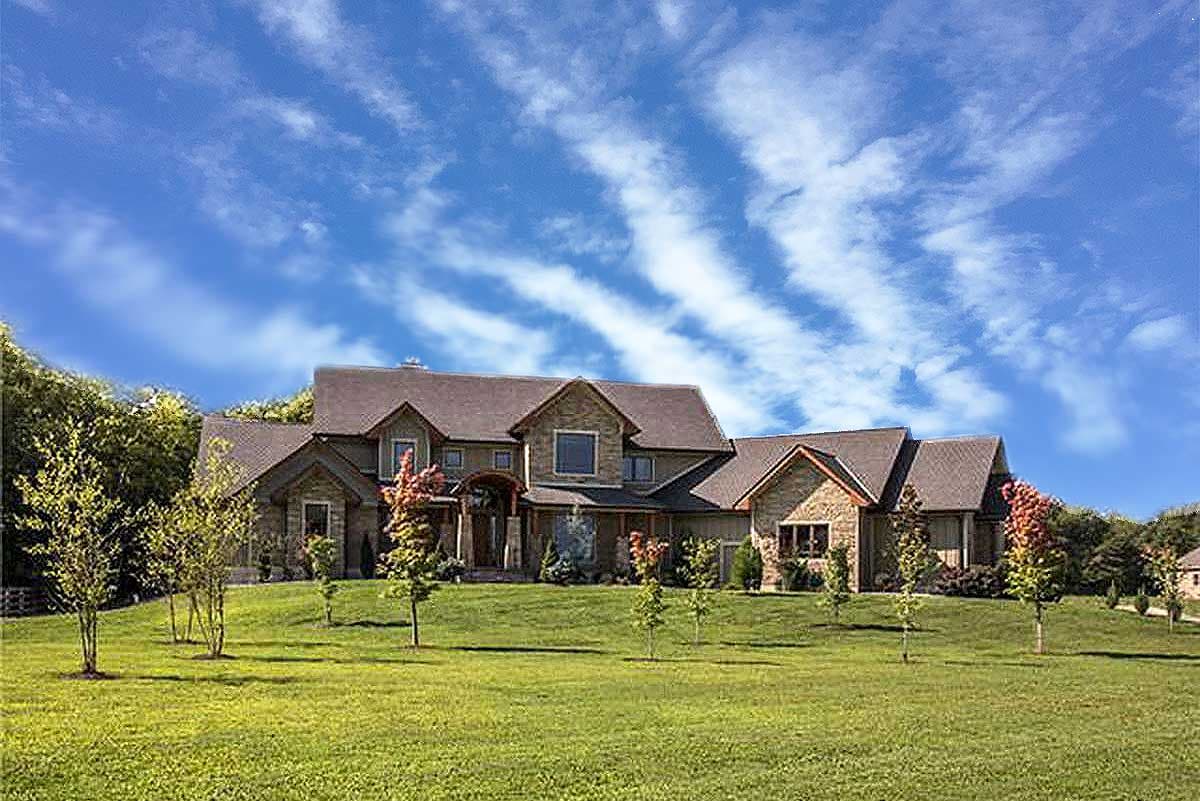

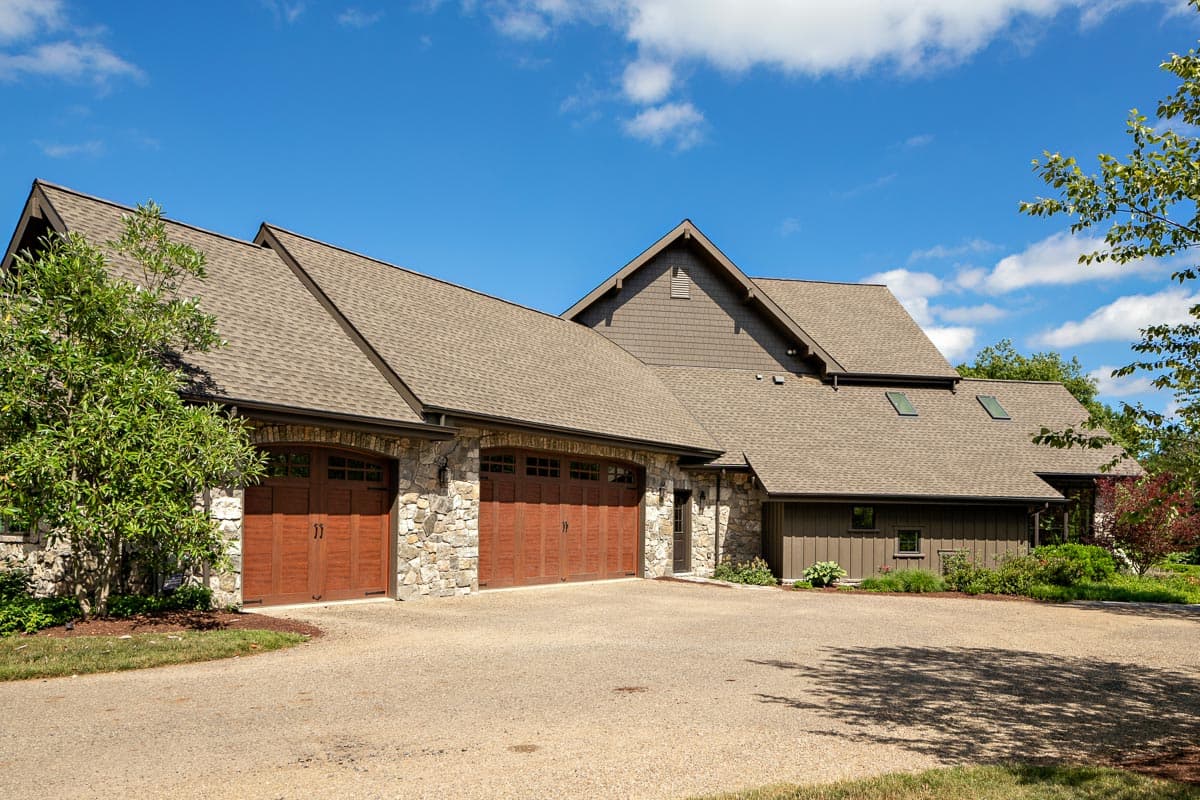

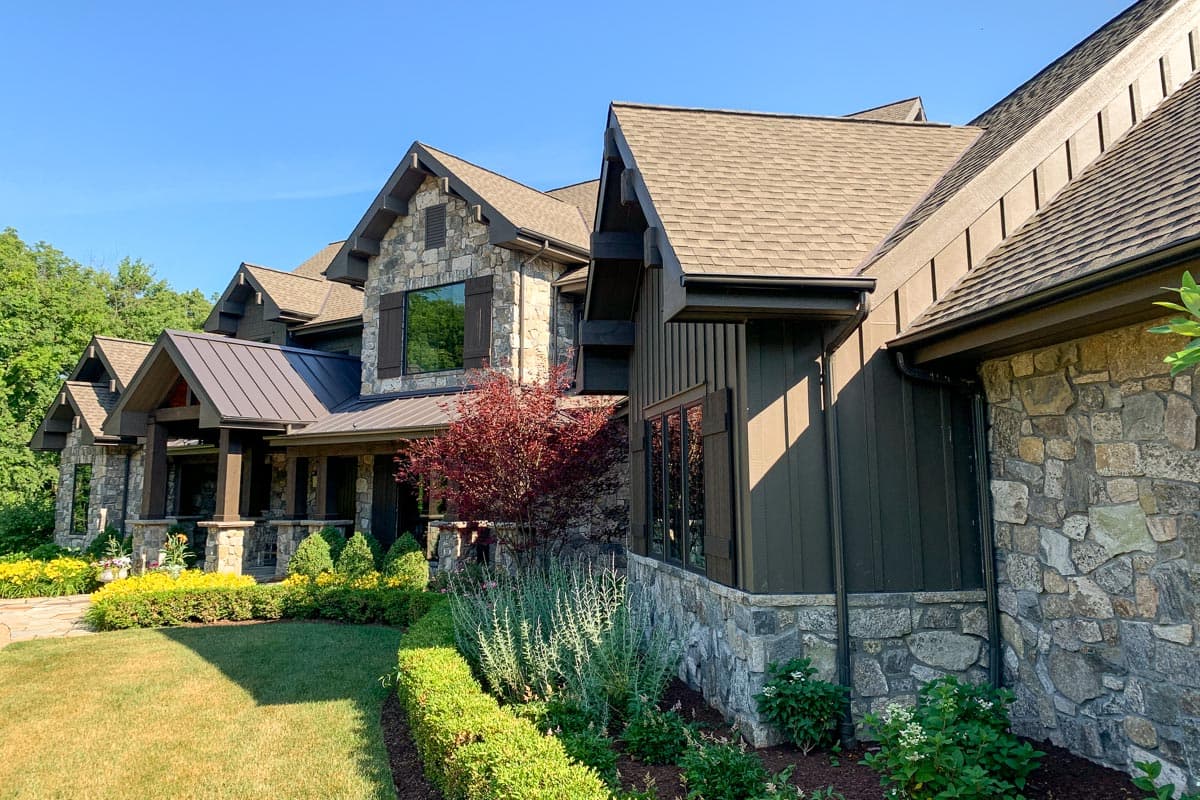

Stone and siding combine with rustic wooden shutters to give this spacious Craftsman home plan its curb appeal.
Three levels provide room to spread out in comfort.

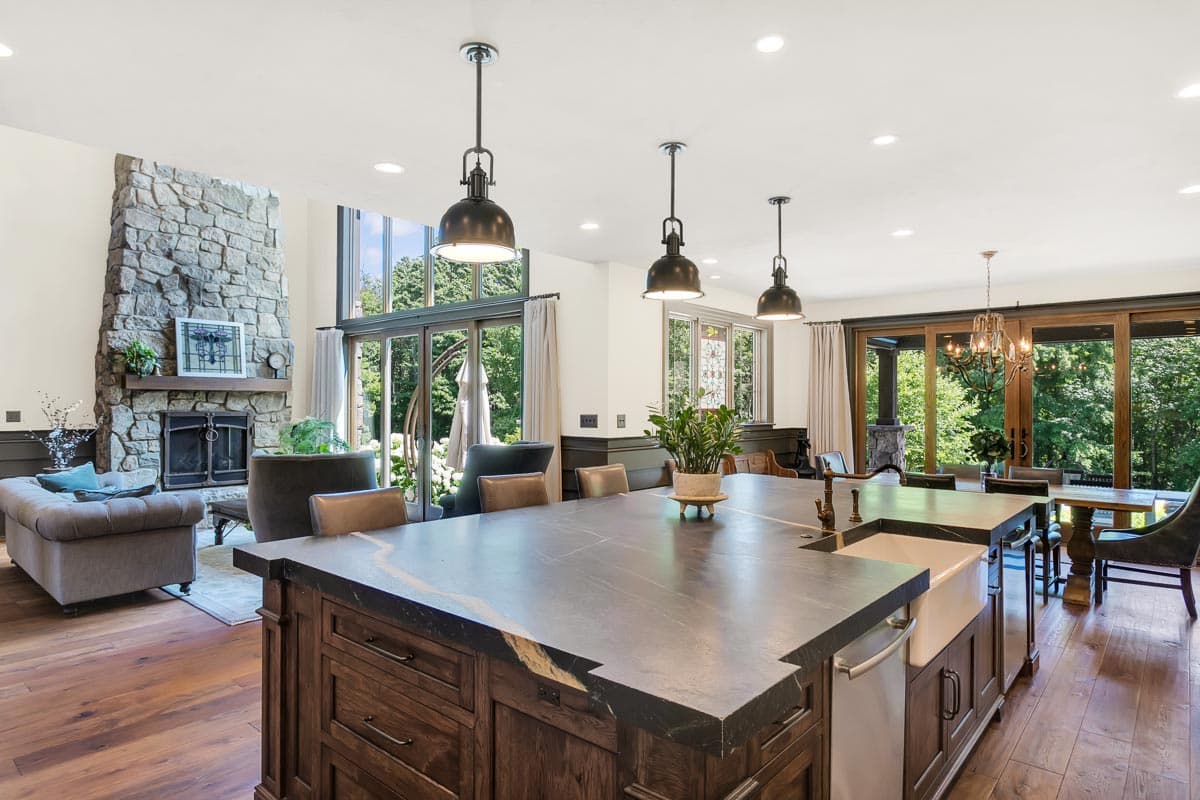

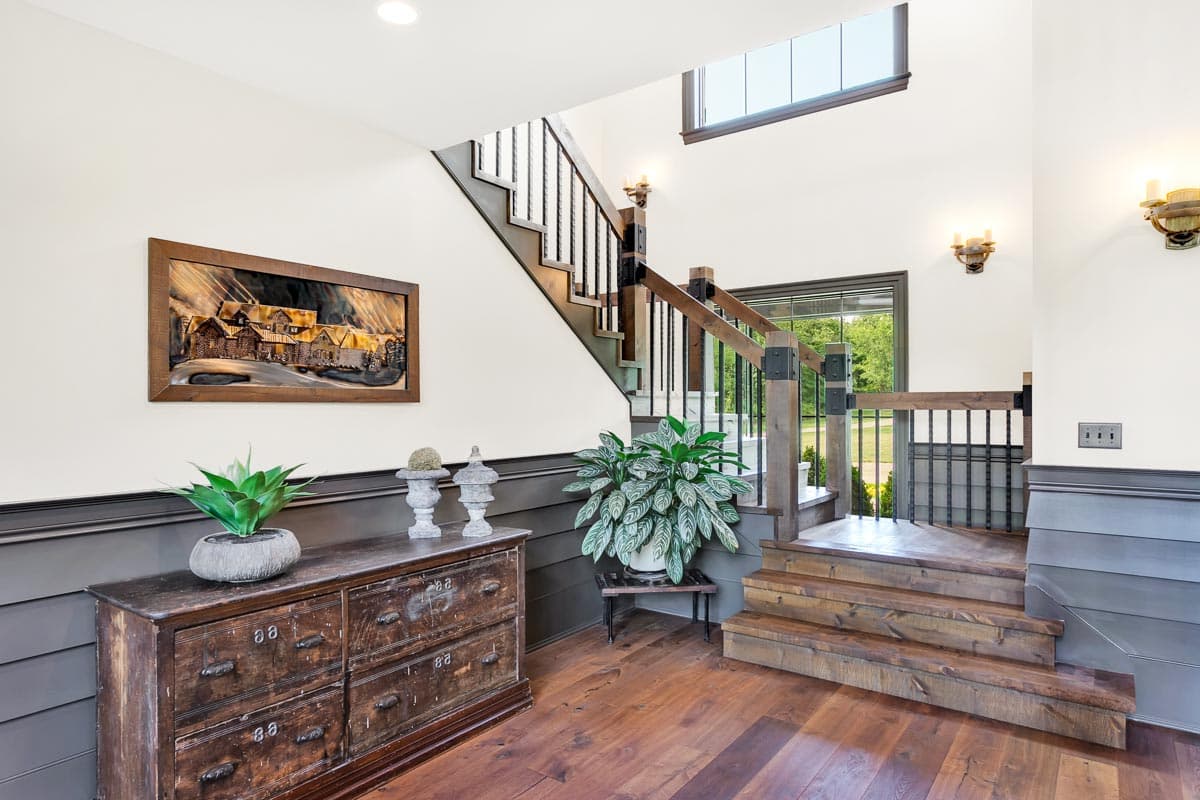

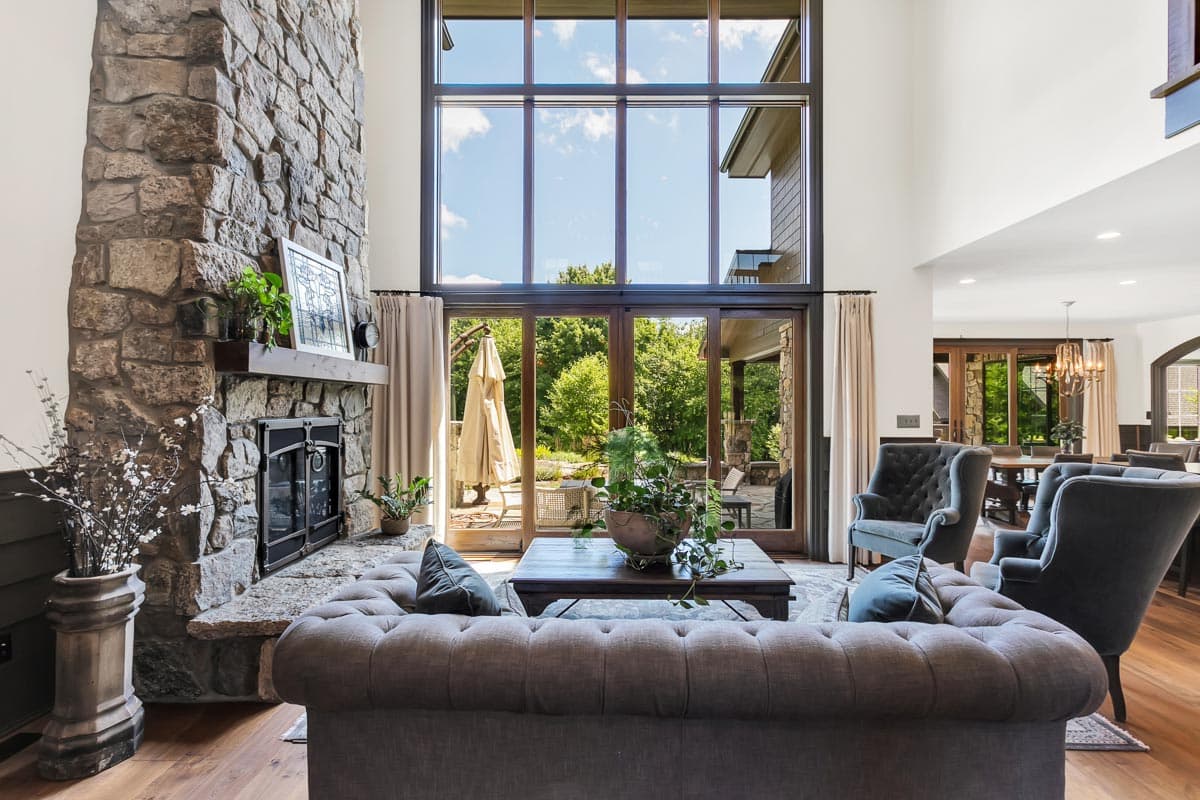

An open 2-story foyer allows views of the large family room that also has a 2-story ceiling.

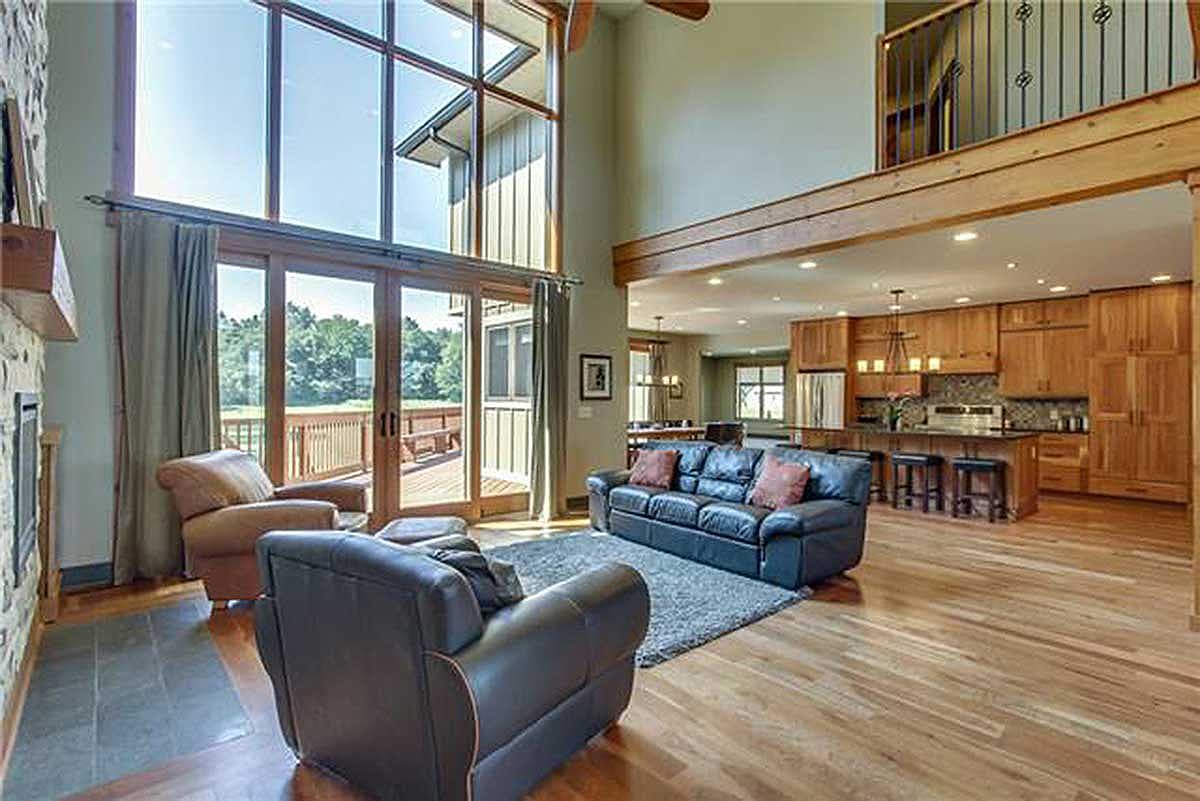

The informal floor plan has the kitchen open to both the casual dining room and the family room.

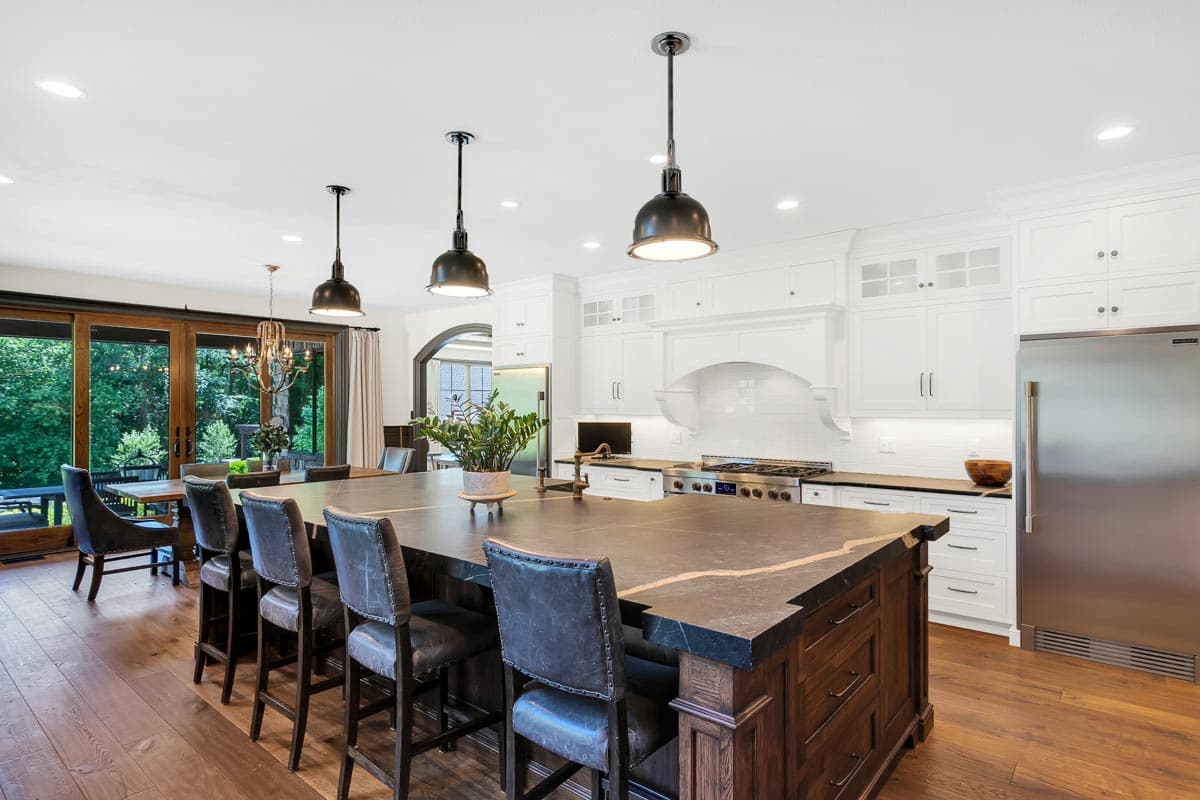

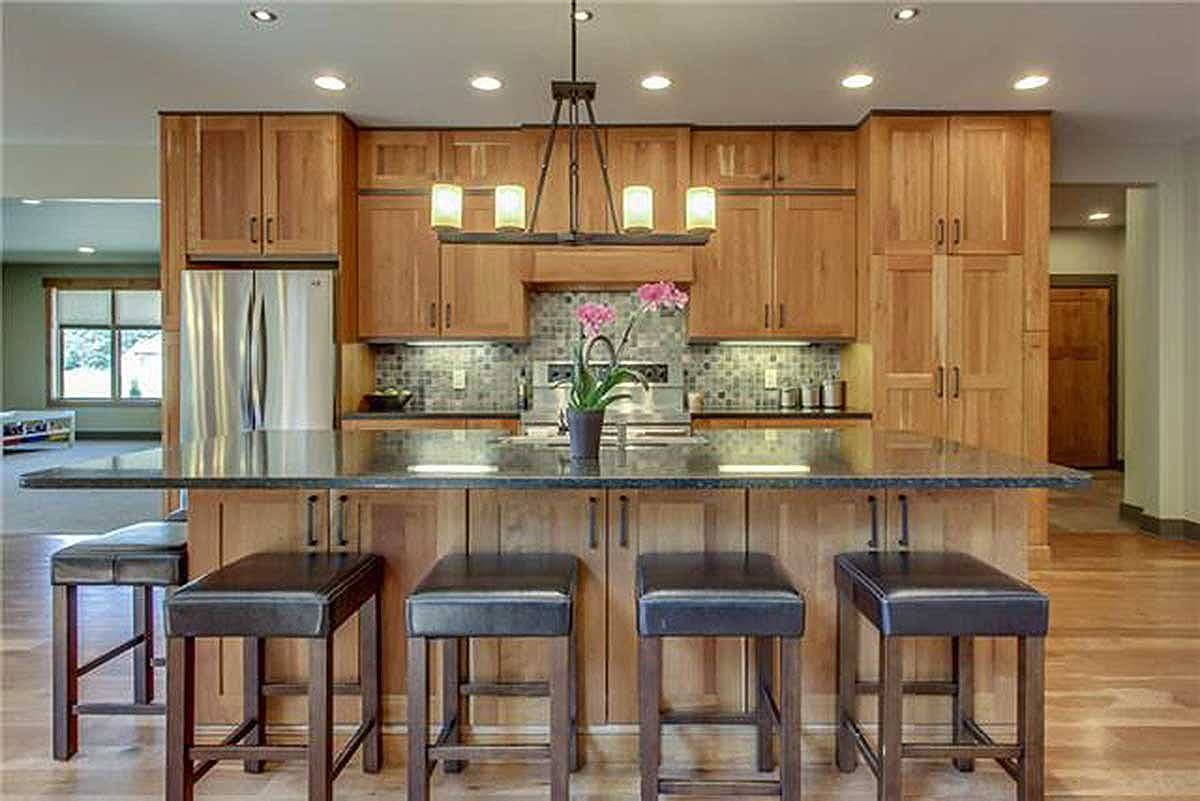

Have a seat at the huge kitchen island while the family chef prepares meals.

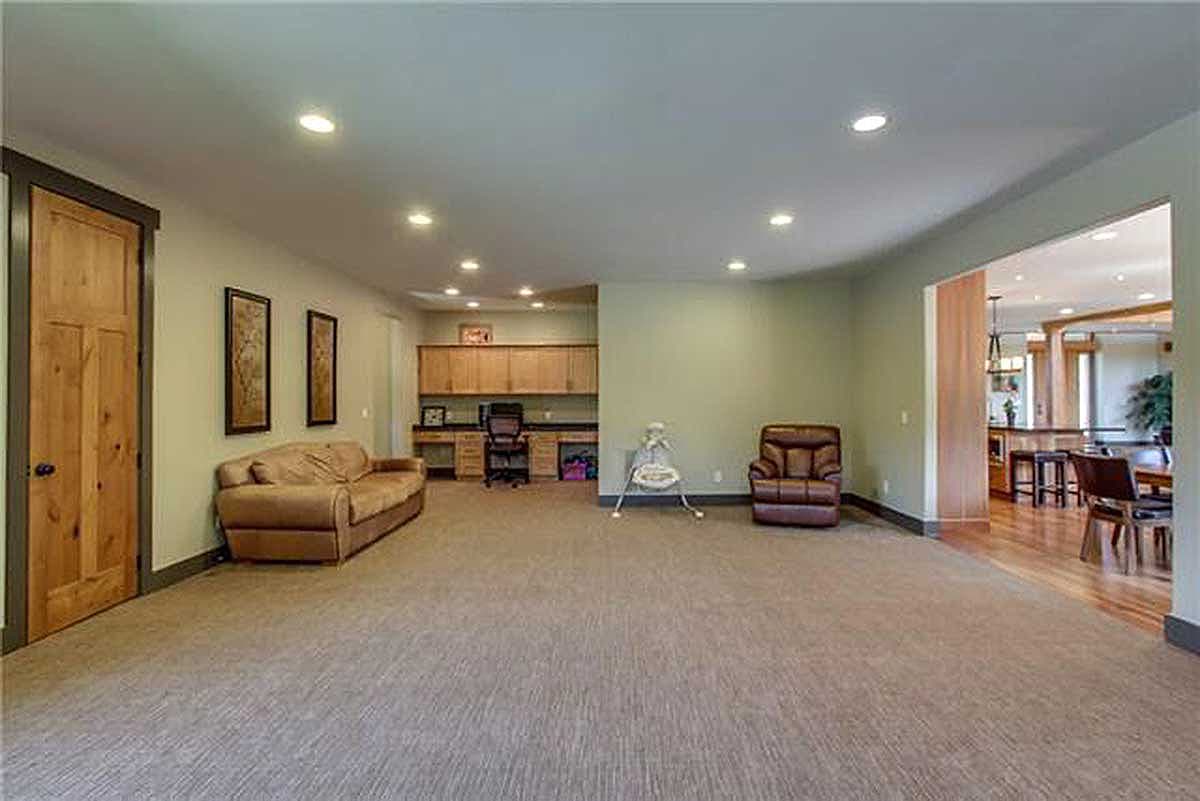

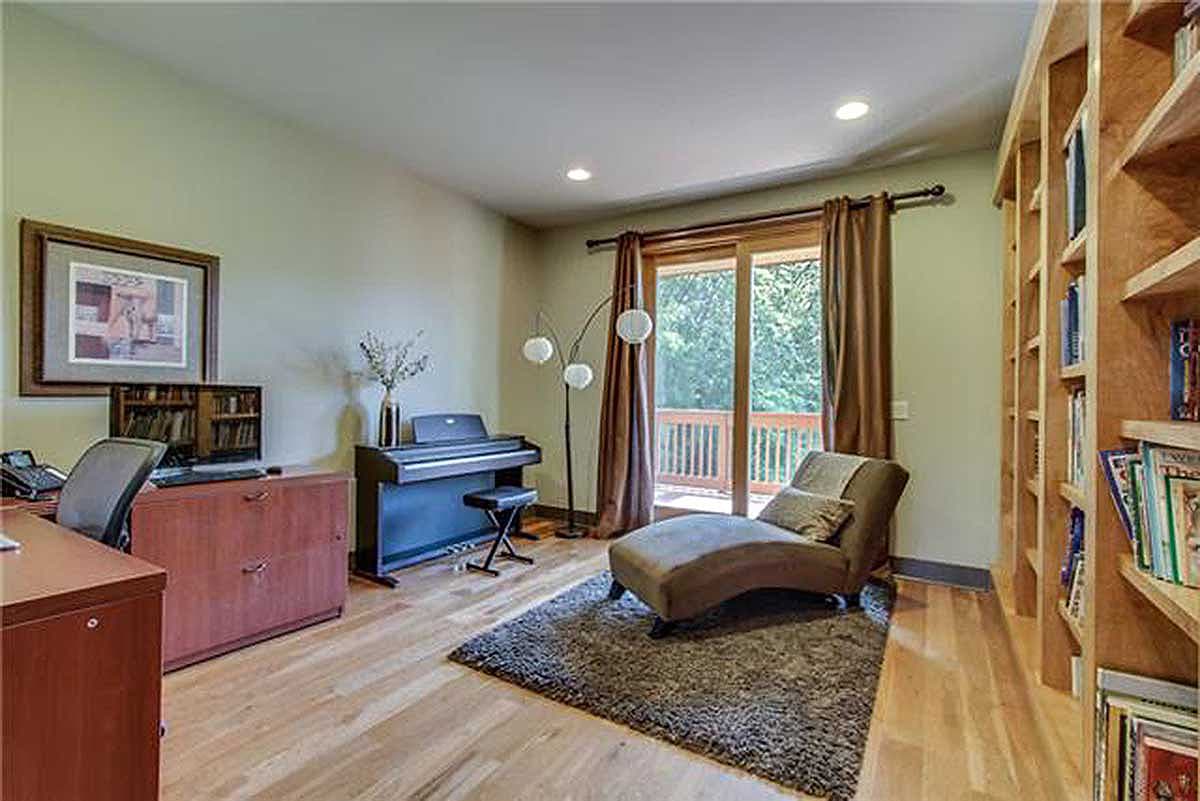

After your meal, you can retreat to the quiet library or head to the massive rec room with wet bar.
When it is time to retire for the night, head up to the second floor and one of four spacious bedrooms.
A guest bedroom and bath on the lower level adds extra space for visitors.
Both a home theater and another huge rec room with wet bar can be found on this level along with a vault for all your valuables.

The following details are included with this house plan:

Cover Page
4 elevations
Floorplans
Foundation plan (with no specifications of structural elements)
Roof plan (with no specifications of structural elements)
Typical wall sections
Electrical plan

The following details are NOT included in the plans:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

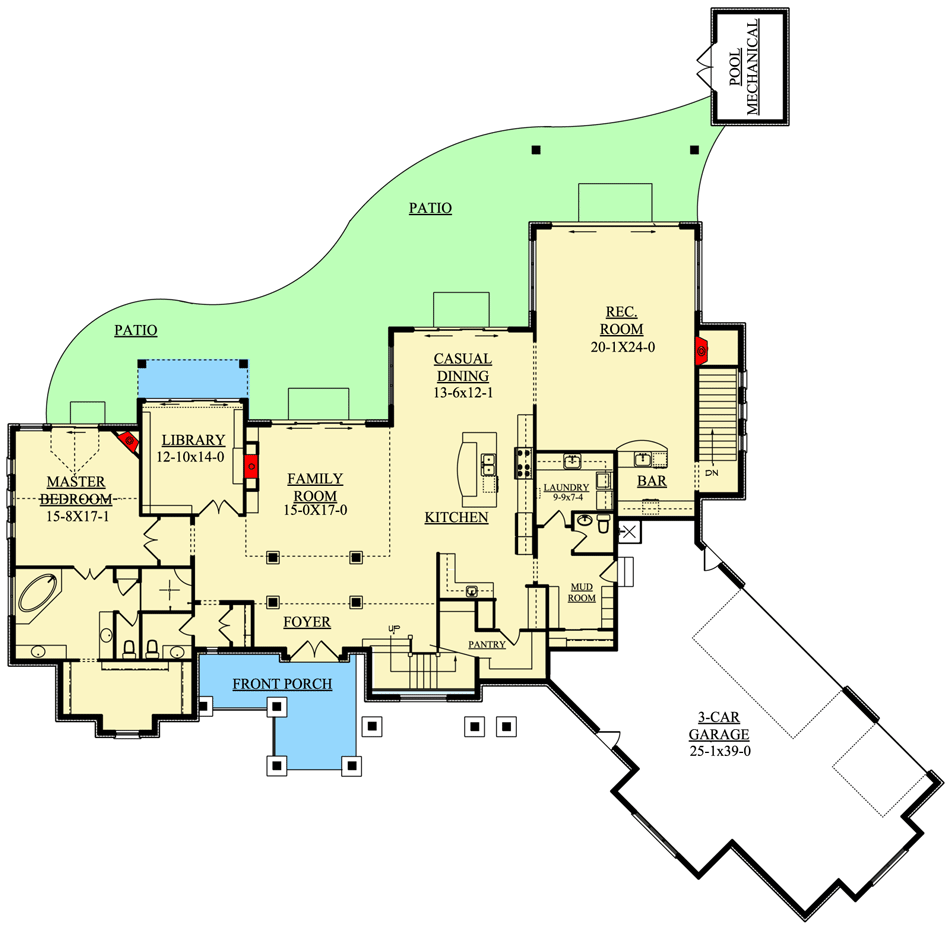

Spacious Craftsman Home Plan - 9527RW floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

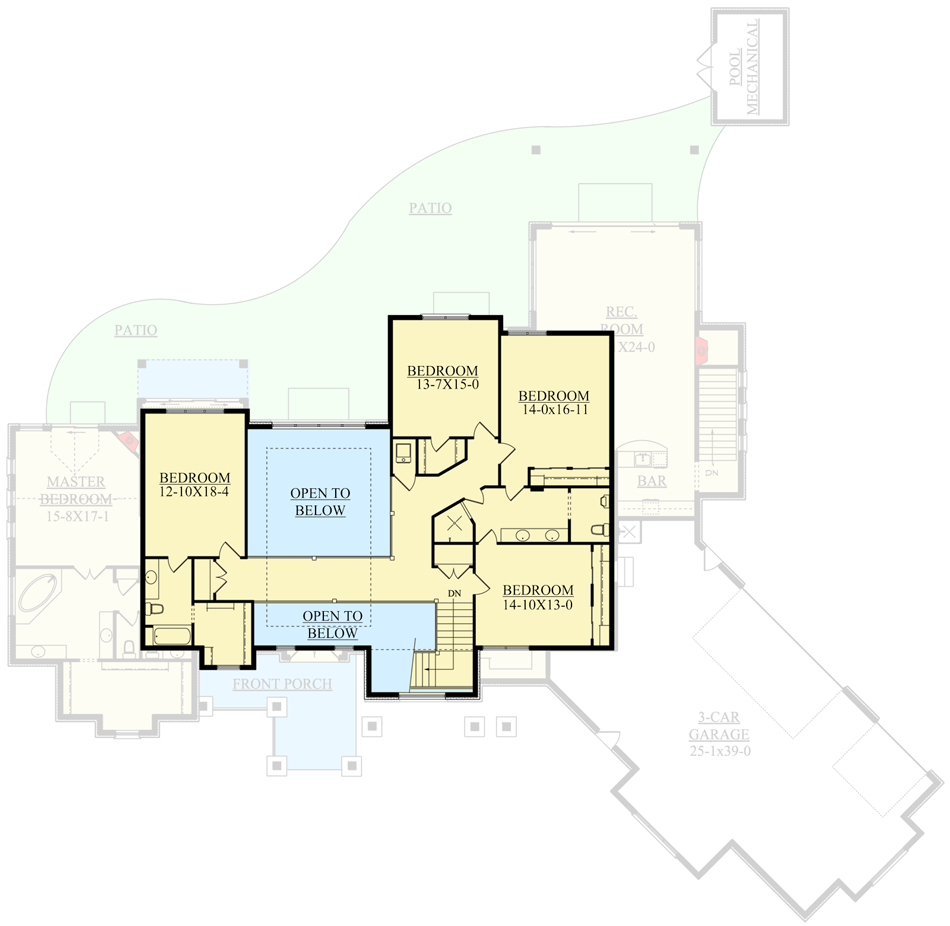

Spacious Craftsman Home Plan - 9527RW floor plan - 2nd Floor

Optionally Finished Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

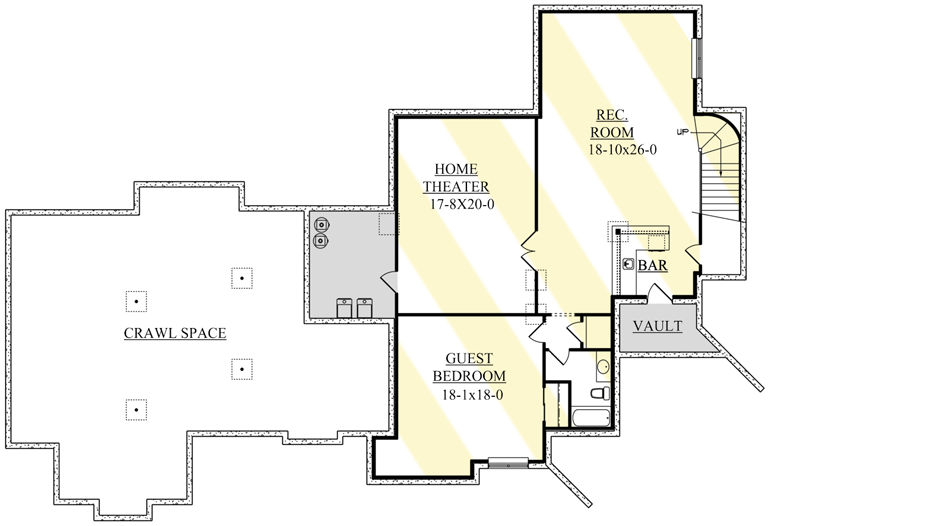

Spacious Craftsman Home Plan - 9527RW floor plan - Optionally Finished Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 6,837 sq. ft.
Lower Level: 1,673 sq. ft.
1st Floor: 3,515 sq. ft.
2nd Floor: 1,649 sq. ft.

Deck: 1,495 sq. ft.

Beds/Baths

Bedrooms: 6

Full bathrooms: 4
Half bathrooms: 2

Foundation Type

Standard Foundations: Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 107' 2"
Depth: 118' 4"
Max ridge height: 34' 1"

Garage

Type: Attached
Area: 1321 sq. ft.
Count: 3 Cars
Entry Location: Rear

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

Primary Pitch: 10 on 12
Secondary Pitch: 5 on 12

Framing Type: Truss

Architectural Style

Special features

Plan Collections
