Plan 890036AH

Spacious Craftsman House Plan with Second Floor Play Room

Heated S.F.
3,851
Beds
4
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 890036AH

Main Level
Main Level
2nd Floor
2nd Floor

Plan 890036AH

M-F 9am-5pm EST |

1-203-761-8500

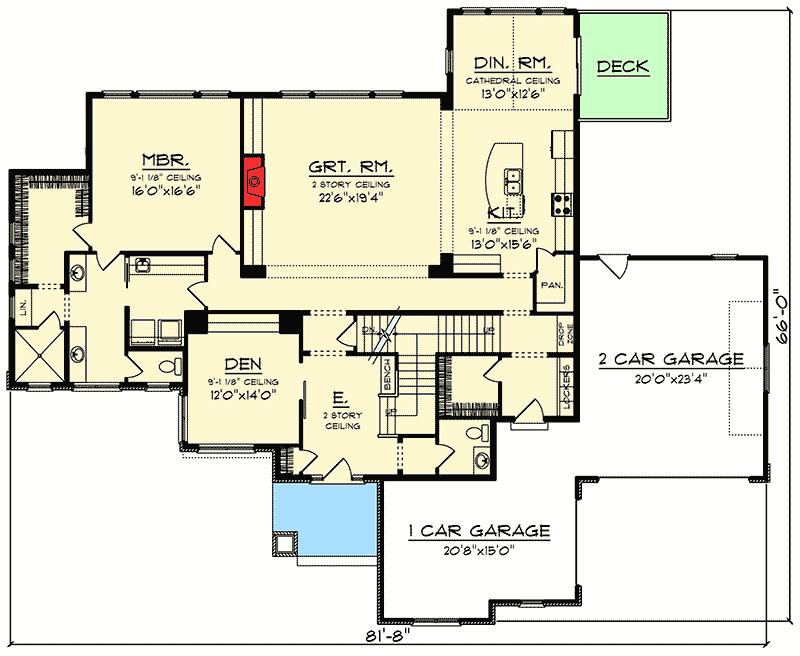

Main Level

Plan 890036AH: Spacious Craftsman House Plan with Second Floor Play Room - Floor Plan - Main Level - Craftsman, Northwest

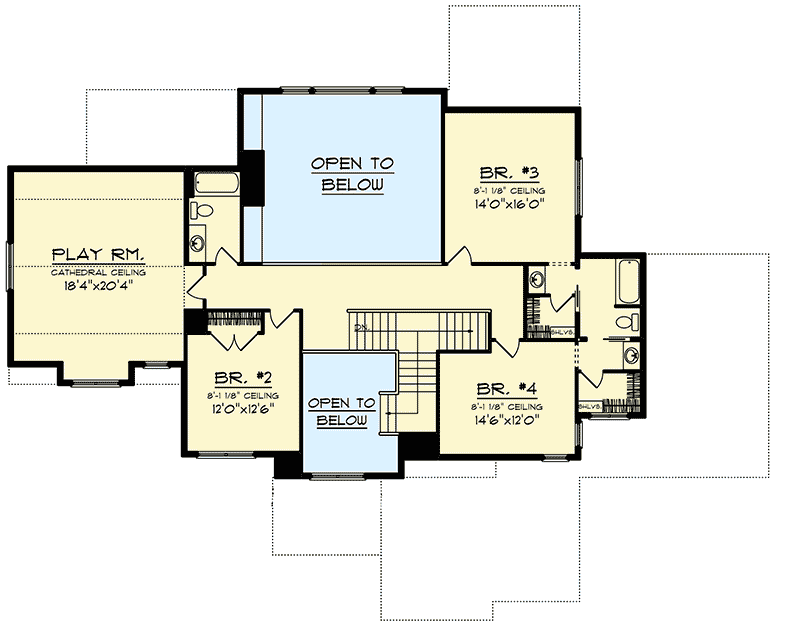

2nd Floor

Plan 890036AH: Spacious Craftsman House Plan with Second Floor Play Room - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

•The perfect combination of stone, horizontal and shingle siding makes this Craftsman styled home a great addition to any neighborhood.
•You’ll be impressed by the two-story ceiling that greets you in the entry and draws you into the great room where it continues.
•The kitchen has direct sight lines to the great room and adjacent dining room making it making it easy to be with family while cooking.
•A private den for dad is found just off the left of the entry.
•The main floor master lies behind the den and features a spacious walk-in closet dual sinks and easy access to the laundry area.
•Three additional bedrooms, two of which share a Jack-and-Jill bathroom are located on the second story.
•A spacious play room with cathedral ceiling is also on the second level.
•A three-stall, split-load garage completes the home.

What's Included

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,851 sq. ft.

1st Floor

2,335 sq. ft.

2nd Floor

1,516 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

81' 8"

Depth

66' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

853 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Entry

Second Story

0' 0''

Great Room

Second Story

0' 0''

Dining Room

Cathedral

0' 0''

Media Room

Cathedral

0' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Den

Jack & Jill Bath

Master Suite - 1st Floor

Playroom

Walk-in Pantry
