Spacious Craftsman Mountain House Plan with 4 Bedrooms and Game Room

Name: Plan 54066LK: Spacious Craftsman Mountain House Plan with 4 Bedrooms and Game Room
Brand: Architectural Designs
SKU: 54066LK
Price: 2475.0 USD
Availability: InStock

Heated S.F.

3,496

Beds

3 - 4

Baths

4.5

Stories

Cars

Floor Plan

Plan Details

This expansive 3,496 sq ft Craftsman Mountain House Plan offers 4 bedrooms, 4.5 baths, and an attached 2-car garage spanning 969 sq ft.
Step inside from the inviting covered porch to discover a spacious single-story layout with 10-foot ceilings, featuring a formal dining area and a practical mudroom and main-level laundry.
The heart of the home flows seamlessly between the main living areas, offering a dedicated formal dining room and a cozy breakfast nook for everyday meals.
The private primary bedroom suite is conveniently located on the first floor, thoughtfully separated from the three secondary bedrooms for enhanced privacy.
Enjoy dedicated leisure in the spacious game or recreation room, perfect for entertainment and family gatherings.
Generous covered porches totaling 687 sq ft provide ample opportunities for outdoor relaxation and enjoying the natural surroundings.

What's Included

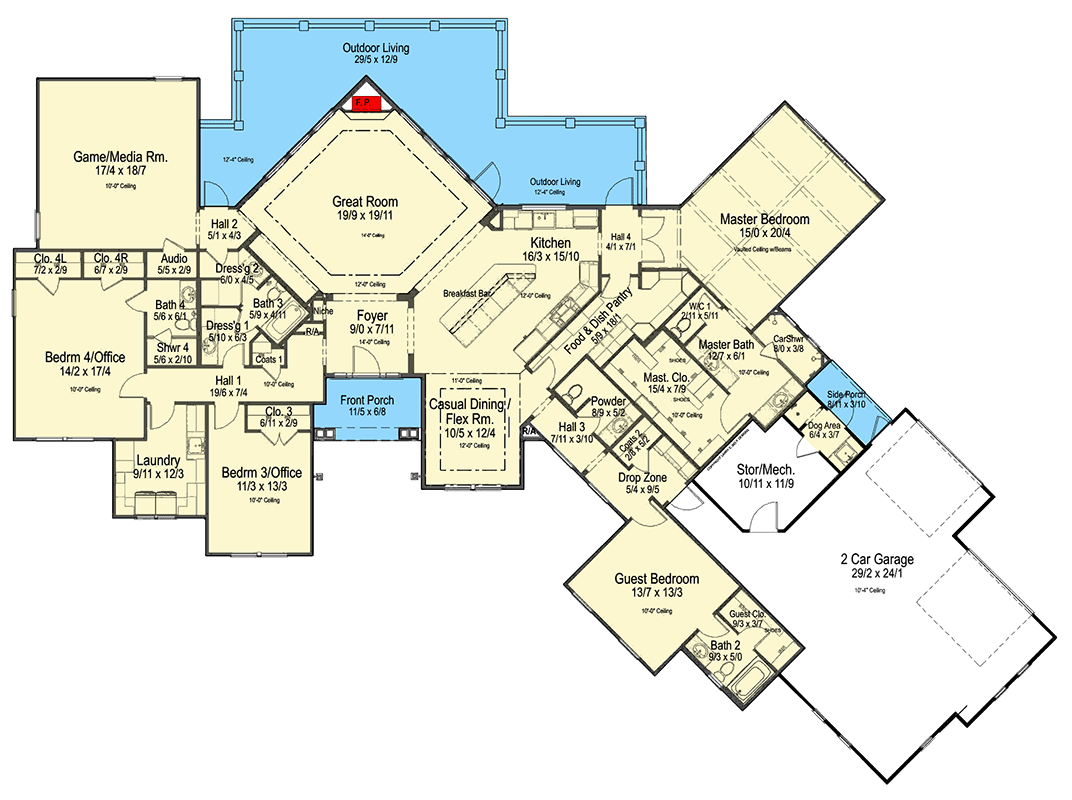

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.

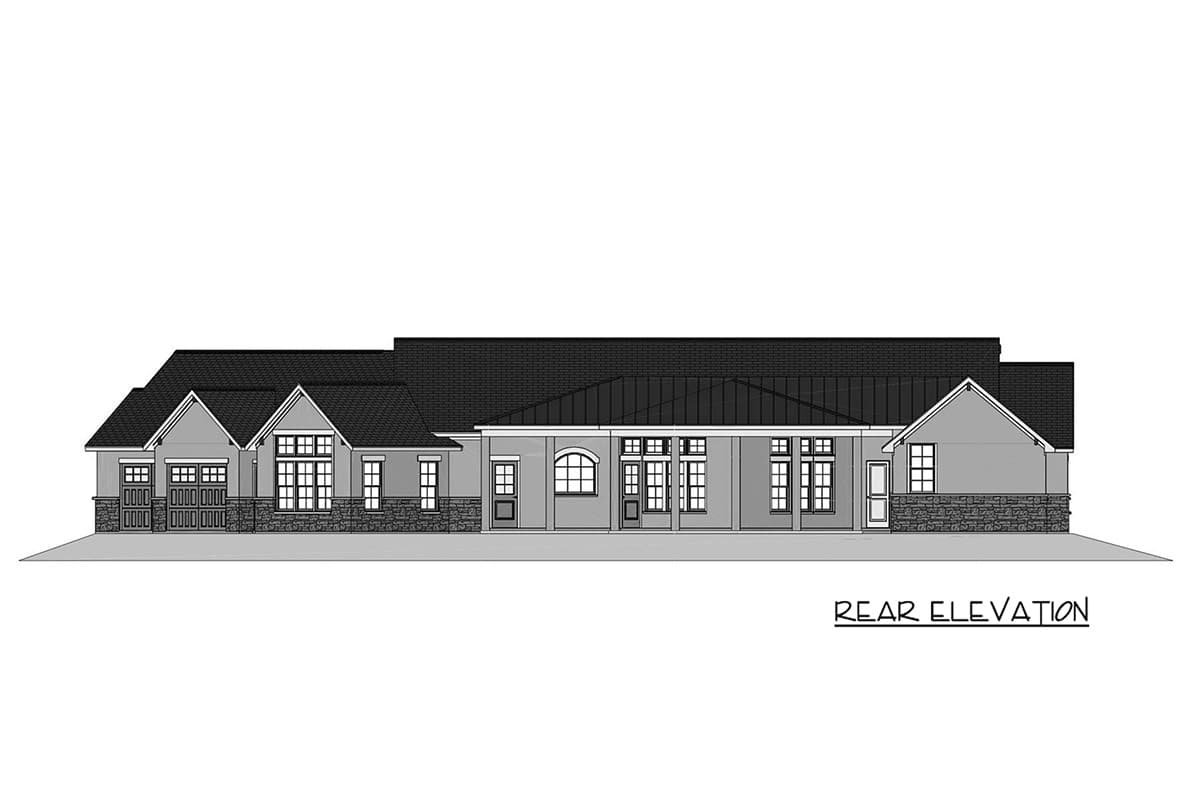

ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
