Plan 17711LV
Spacious Dining Room
Heated S.F.
4,054
Beds
4
Baths
3.5+
Stories
2
Cars
3
What's Included
Plan Details
  • Entertain in style in your extra-large dining room with a tray ceiling.
  • Columns separate the dining room from the foyer and hall, allowing views of both the living room and gathering room.
  • Informal meals can be enjoyed in the bright and cheery breakfast nook set in a bay.
  • The island in the kitchen is angled to provide views of both the nook and the gathering room so you always feel part of the action.
  • Tray ceilings grace the first floor master suite as well with its huge master bath.
  • A delightful playroom on the second floor has a balcony overlooking the living room below.
What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Spacious Dining Room

  • 4,054

    Heated s.f.

  • 4

    Beds

  • 3.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

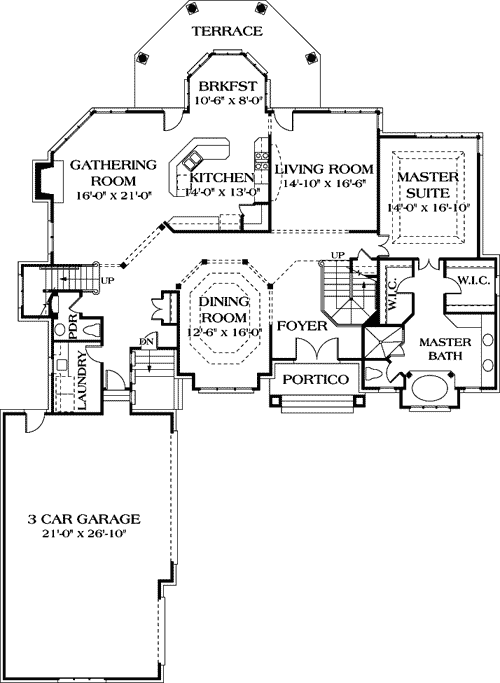

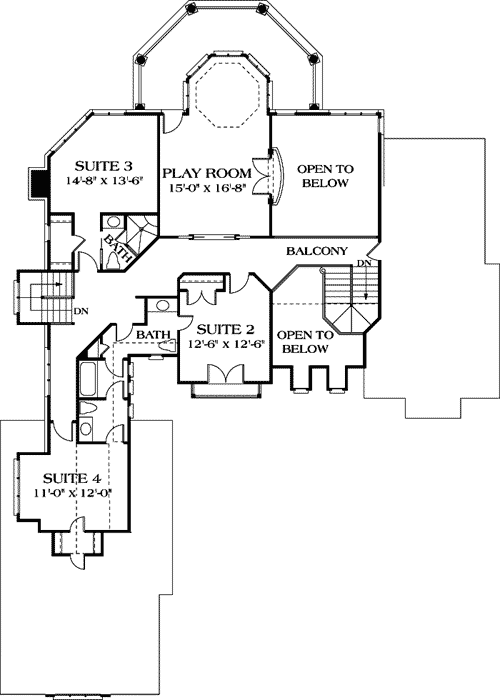

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,054 sq. ft.
  • 1st Floor: 2,430 sq. ft.
  • 2nd Floor: 1,624 sq. ft.

Dimensions

  • Width: 70' 4"
  • Depth: 95' 9"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 877 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
