Plan 59339ND
Spacious Duplex Design
Heated S.F.
2,758
Units
2
Width
76' 8"
Depth
65' 6"
Cars
4
What's Included
Plan Details
  • This duplex incorporates living areas at the rear of the home along with a covered porch making this perfect for a lake or golf course community.
  • The foyer has a ten foot ceiling giving a feeling of spaciousness as well as ten foot boxed ceilings in both the great room and master suite.
  • The kitchen has bar seating and immediate access to a large pantry and laundry room for convenience.
  • The master suite includes 'his and her' closets that separate the master bathroom from a spacious master bedroom full of windows for plenty of natural lighting.
Unit A
1,379 Sq. Ft.
1379 Sq. Ft. 1st Floor
3 Beds
2 Full Baths
2 Vehicle
Attached
579 Sq. Ft.
38' 4" w 65' 6" d 26' h
Unit B
1,379 Sq. Ft.
1379 Sq. Ft. 1st Floor
3 Beds
2 Full Baths
2 Vehicle
Attached
579 Sq. Ft.
34' 8" w 65' 6" d 26' h
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

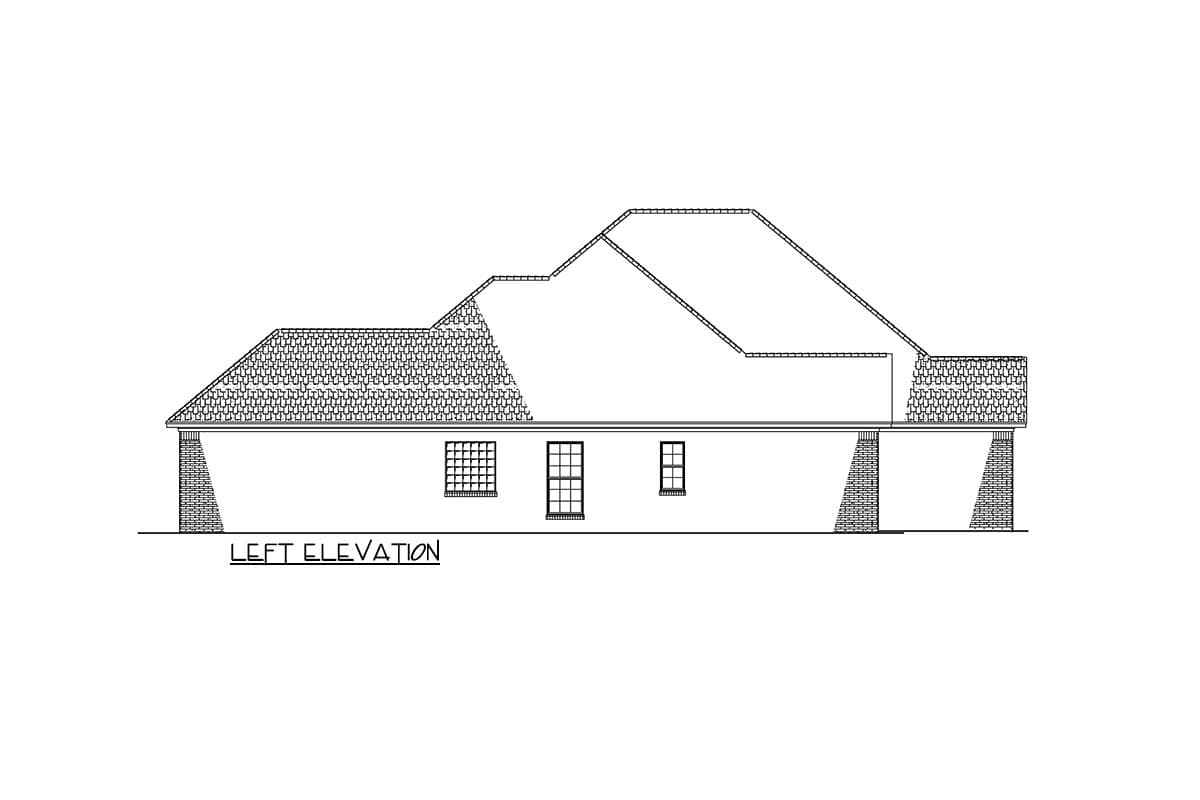

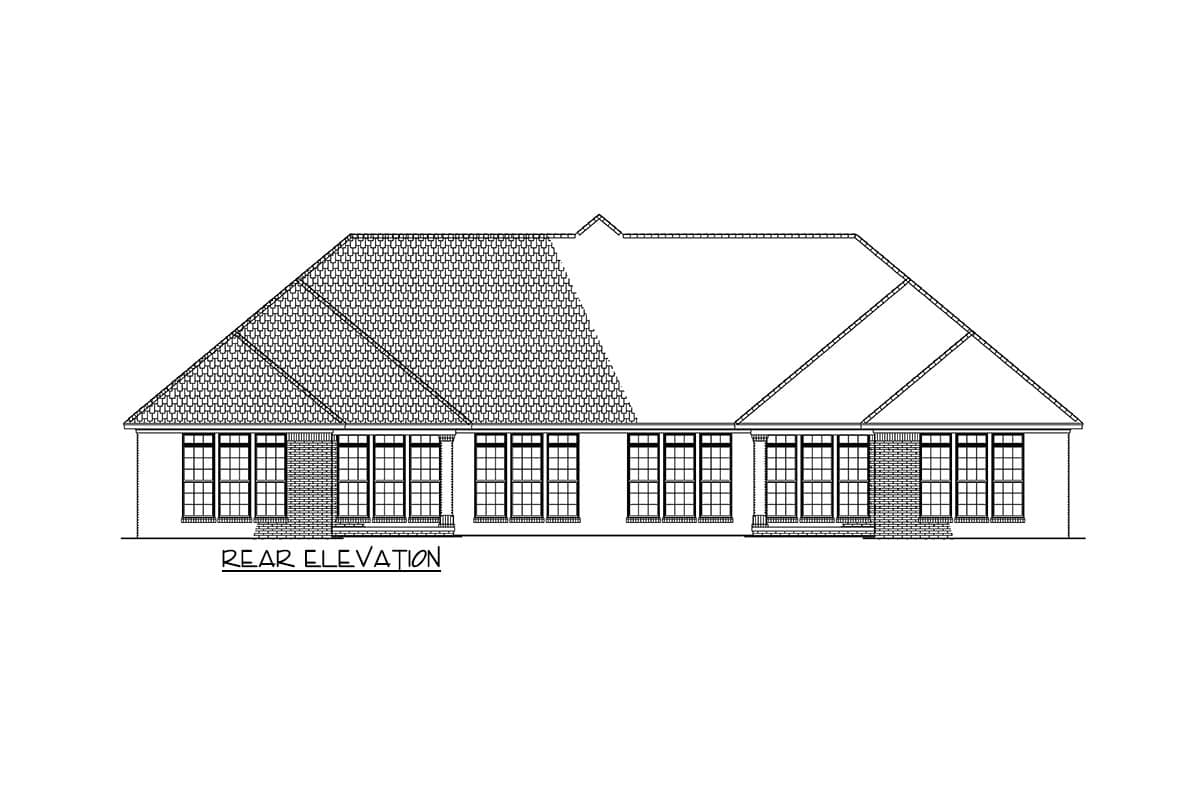

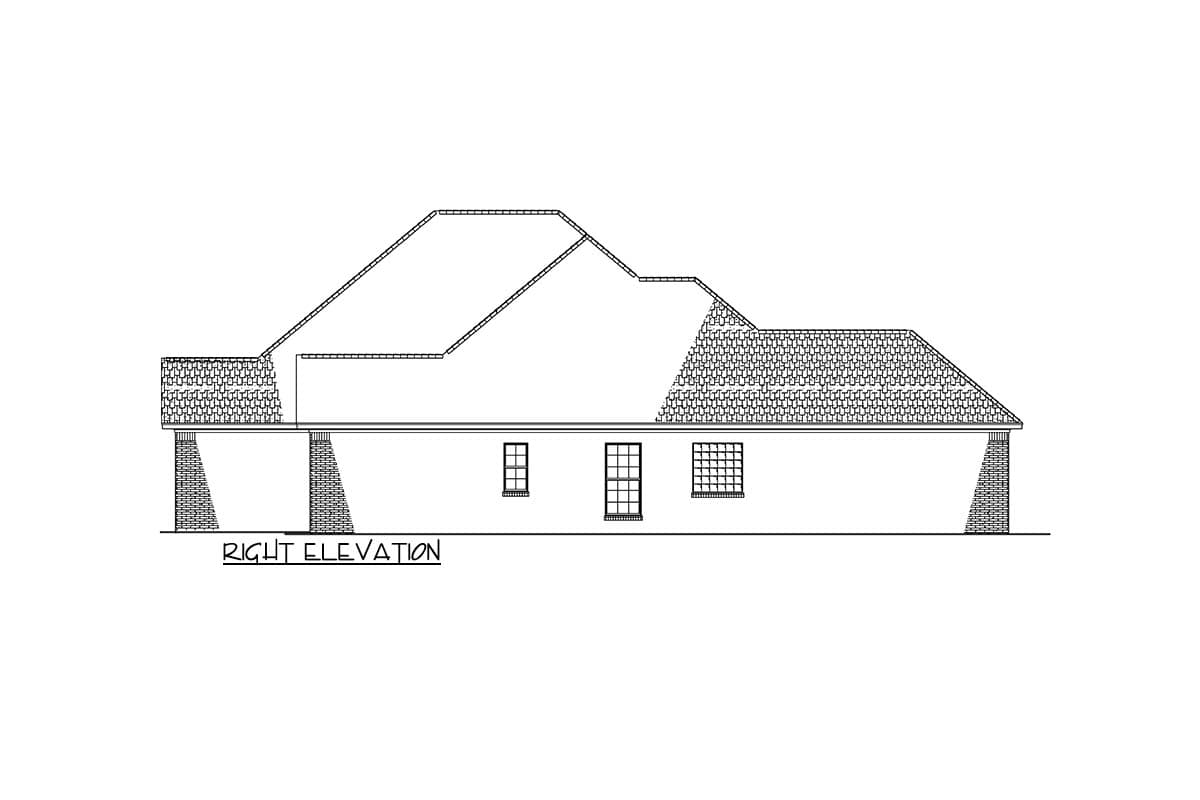

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Spacious Duplex Design

  • 2,758

    Heated s.f.

  • 2

    Units

  • 76' 8"

    Width

  • 65' 6"

    Depth

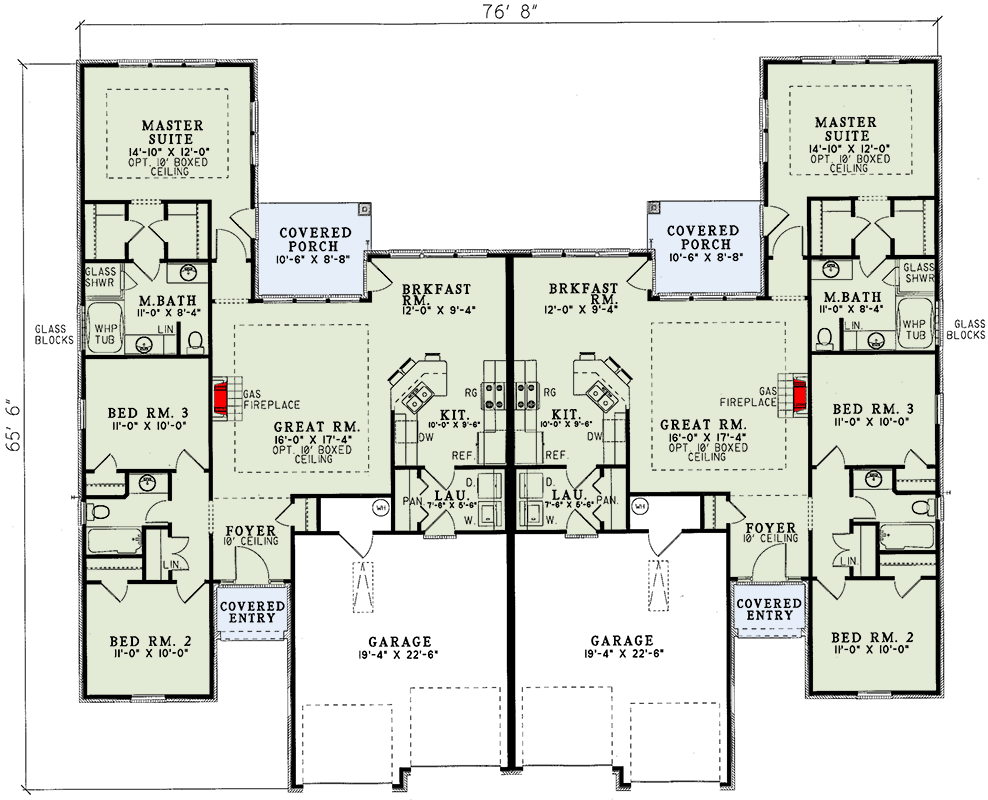

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,758 sq. ft.
  • 1st Floor: 2,758 sq. ft.

Dimensions

  • Width: 76' 8"
  • Depth: 65' 6"
  • Max ridge height: 26' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 870 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
