Plan 60509ND

Spacious Duplex with Courtyard and Bonus Space Options

Heated S.F.
4,452
Units
2
Width
Depth

Floor Plan

Plan 60509ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 60509ND

M-F 9am-5pm EST |

1-203-761-8500

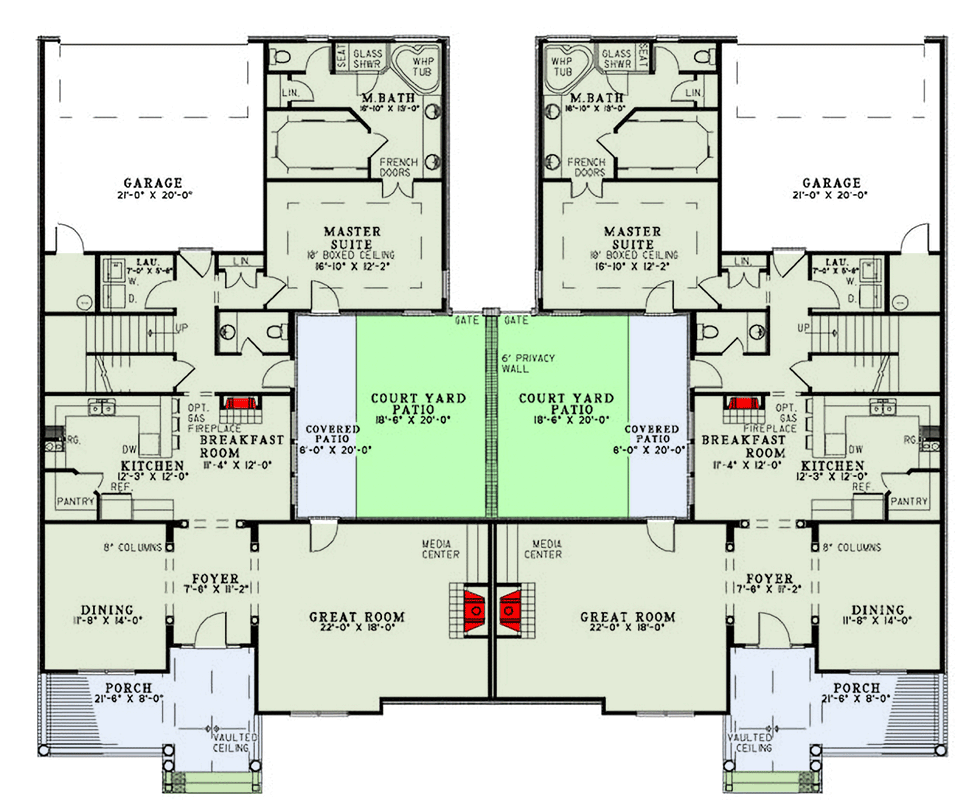

Main Level

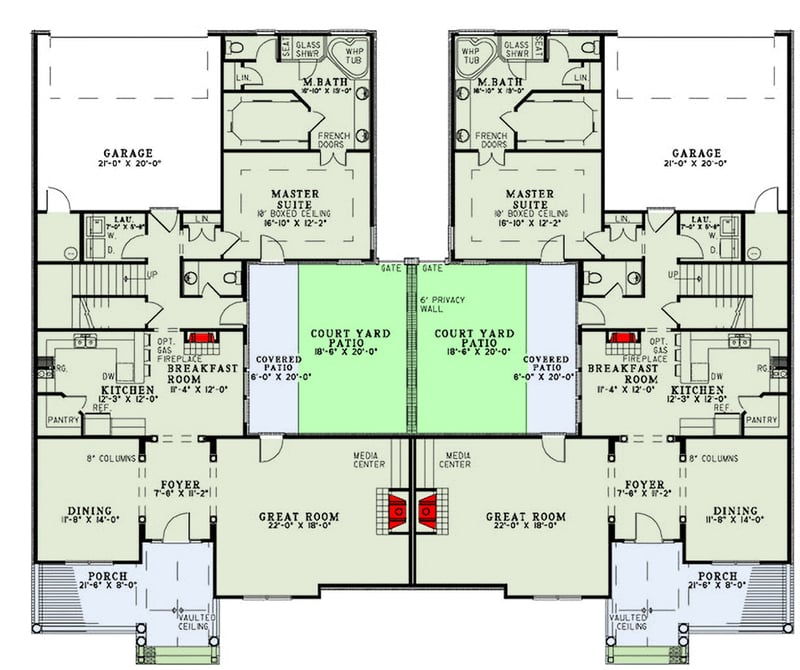

Plan 60509ND: Spacious Duplex with Courtyard and Bonus Space Options - Floor Plan - Main Level - Traditional

2nd Floor

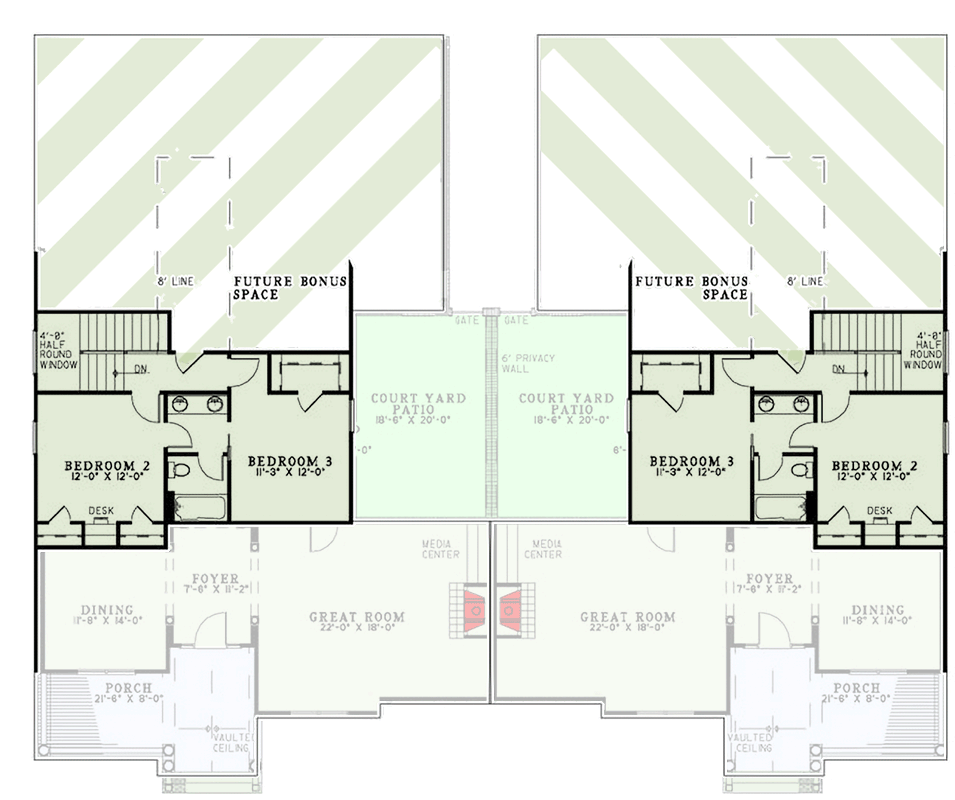

Plan 60509ND: Spacious Duplex with Courtyard and Bonus Space Options - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This elegant traditional-style duplex offers 4,452 sq. ft. of total living space, featuring 3 bedrooms and 2.5 bathrooms in each of the 2,226 sq. ft. units, with an attached garage for 4 cars.
  • Step into a welcoming foyer that leads to a spacious great room with a stunning open-plan layout, connecting seamlessly to the formal dining area and kitchen.
  • The well-appointed kitchen includes a breakfast nook and butler’s walk-in pantry, enhancing the flow to casual dining spaces and the charming outdoor courtyard.
  • The first-floor master suite offers a luxurious retreat with large windows, a generous ensuite bathroom, and convenient access to the laundry area and mudroom.
  • Upstairs, two additional bedrooms share a Jack and Jill bath, providing private and practical accommodation, with future bonus space available for customization.
  • Enjoy outdoor living with private courtyards and covered patios, perfect for relaxing and entertaining.
  • Expansion possibilities are endless with the second floor's future bonus space, ideal for a home office, gym, or entertainment room.
Unit A
Heated Area
2,226Sq. Ft.
1731 Sq. Ft. 1st
495 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
464 Sq. Ft.
Dimensions
43' 4"width
70' 4"depth
27'height
Unfinished Areas
464 Sq. Ft. Garage
Unit B
Heated Area
2,226Sq. Ft.
1731 Sq. Ft. 1st
495 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
464 Sq. Ft.
Dimensions
43' 4"width
70' 4"depth
27'height
Unfinished Areas
464 Sq. Ft. Garage

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,452 sq. ft.

1st Floor

3,462 sq. ft.

2nd Floor

990 sq. ft.

Porch, Front

648 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

86' 8"

Depth

70' 4"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

928 sq. ft.

Count

4 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Traditional

Special Features

Breakfast Nook

Courtyard

Formal Dining

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

4,452 sq. ft.

1st Floor

3,462 sq. ft.

2nd Floor

990 sq. ft.

Porch, Front

648 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

86' 8"

Depth

70' 4"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

928 sq. ft.

Count

4 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Stick

Architectural Style

Traditional

Special Features

Breakfast Nook

Courtyard

Formal Dining

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry
