Plan 36588TX

Spacious European Home Plan with Seven Fireplaces

Name: Plan 36588TX: Spacious European Home Plan with Seven Fireplaces
Brand: Architectural Designs
SKU: 36588TX
Price: 9995.0 USD
Availability: InStock

Heated S.F.

15,658

Beds

Baths

7.5+

Stories

Cars

Floor Plan

Main Level

2nd Floor

Plan Details

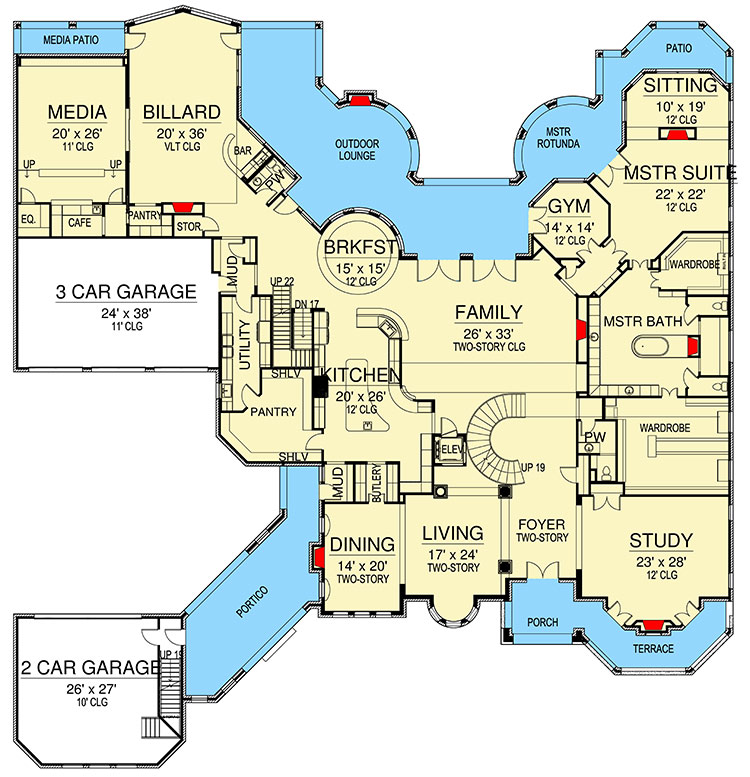

The spacious floor plan of this European home is filled with luxurious amenities from top to bottom. Formal living spaces on the main level, including the study, dining room, and formal living room, are met with more relaxed areas for fun with family and friends, such as the billiard and media rooms.
The generous size of the kitchen and pantry can accommodate entertaining on a grand scale, and an easy transition between indoor and outdoor living maximizes use of the covered porch.
The master suite is located on the main level, next to a gym, and boasts a sitting area, fireplace in the attached bath, and two wardrobes.

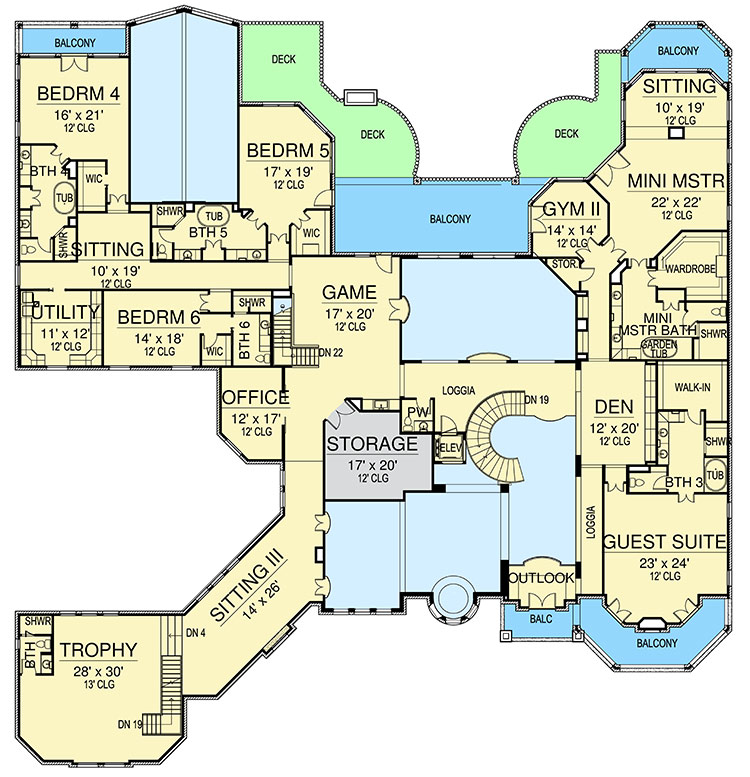

Three staircases and an elevator lead to the second level, which features three family bedrooms, each with their own bath, a mini-master suite, and a guest suite. Multiple common areas upstairs, complete with a trophy room, round out the level.
Drive through the portico to discover a 3-car garage across from a separate, double garage.

What's Included

Cover sheet
Foundation Plan - schematic only
First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

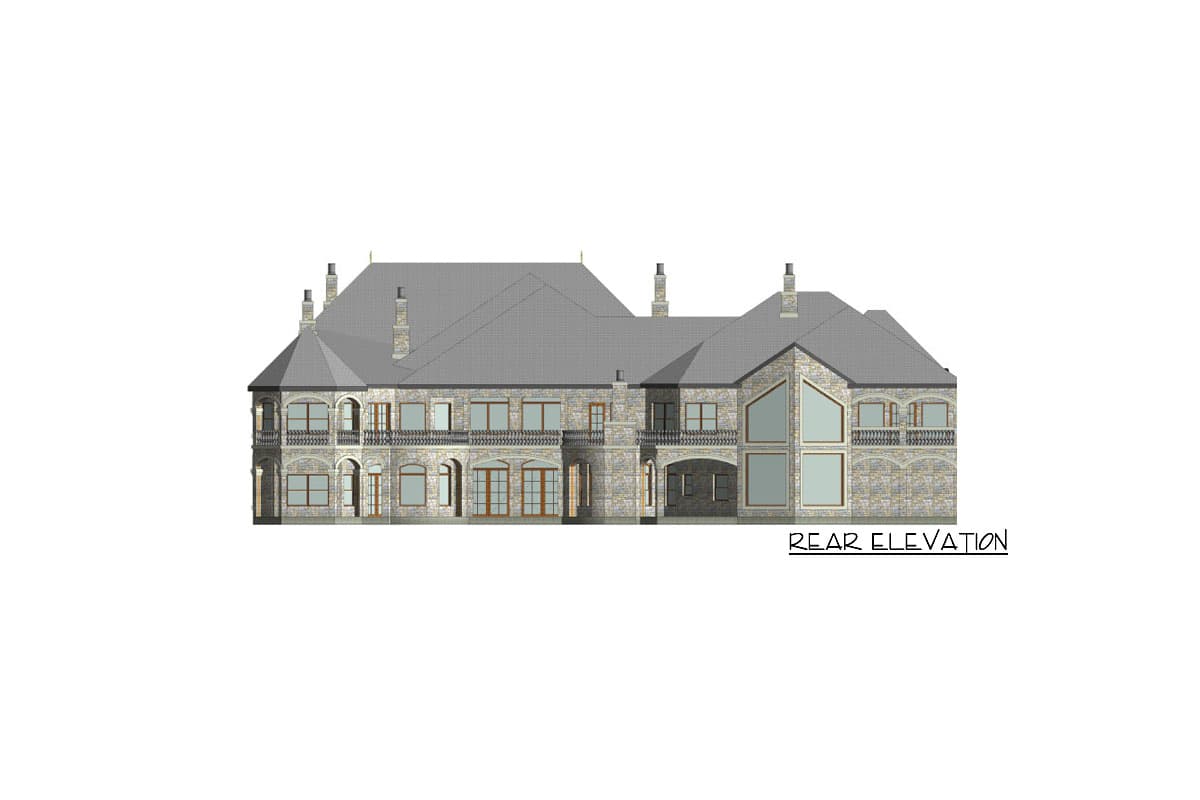

Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

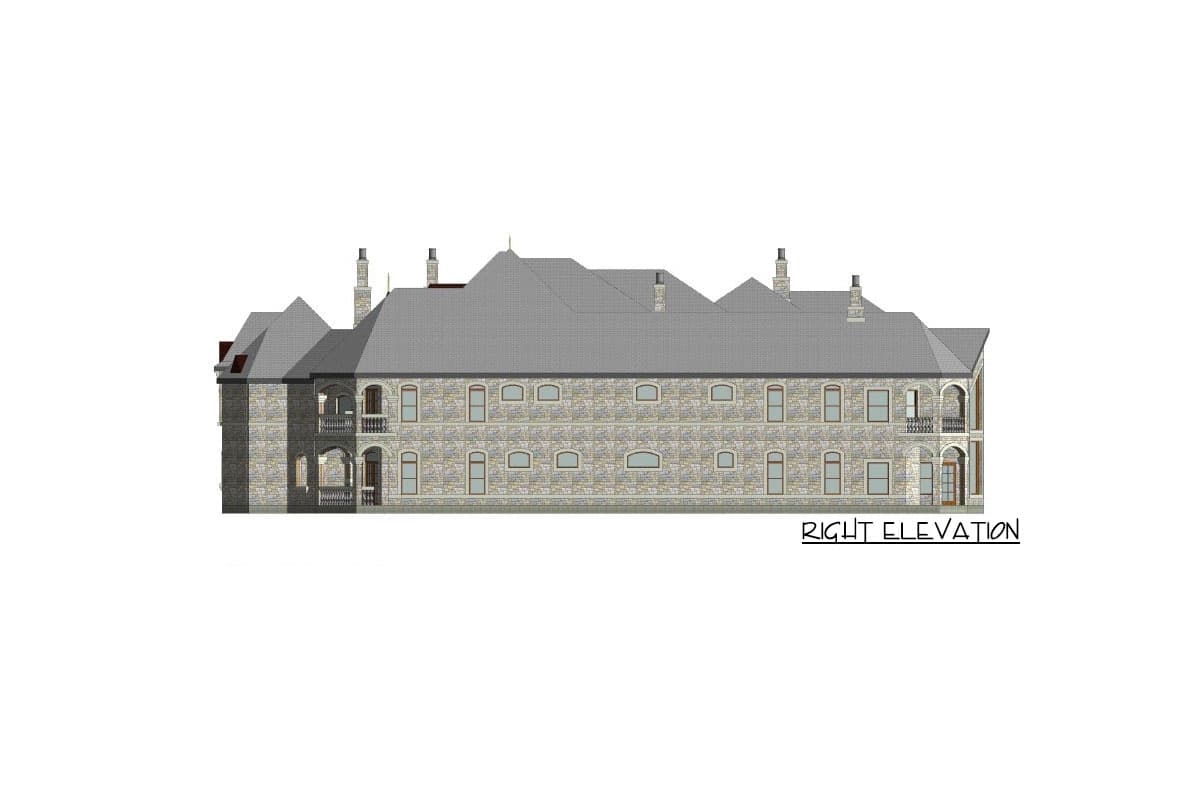

Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
