Plan 290143IY Spacious European Mountain Home Plan with Sports Court

11,572 5-6 4.5 2 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Spacious European Mountain Home Plan with Sports Court

Plan 290143IY

  • 11,572

    Heated s.f.

  • 5-6

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • Stone and stucco adorn the exterior of this European Mountain home plan. The spacious interior includes three levels of luxury, including a sports court, library, and media and exercise rooms.
  • The main level is where you will find the shared living spaces; a great room that opens to the kitchen, formal dining and living rooms, and a library. The mudroom, utility room, and butler's pantry provide spacious service areas to help you remain organized.
  • Upstairs, the homeowner will love the master suite, which boasts a serene ensuite with 5-fixtures, dedicated storage room, and a walk-in closet that connects to the laundry room.
  • Four family bedroom suites are sprinkled throughout the second level; two share a Jack-and-Jill bath.
  • Entertaining is made easy with this walk-out basement. Friends and family will enjoy the sports court, game area, along with the media and exercise rooms. A sixth bedroom can be found downstairs, perfect for guests.

This plan set includes the following:
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans

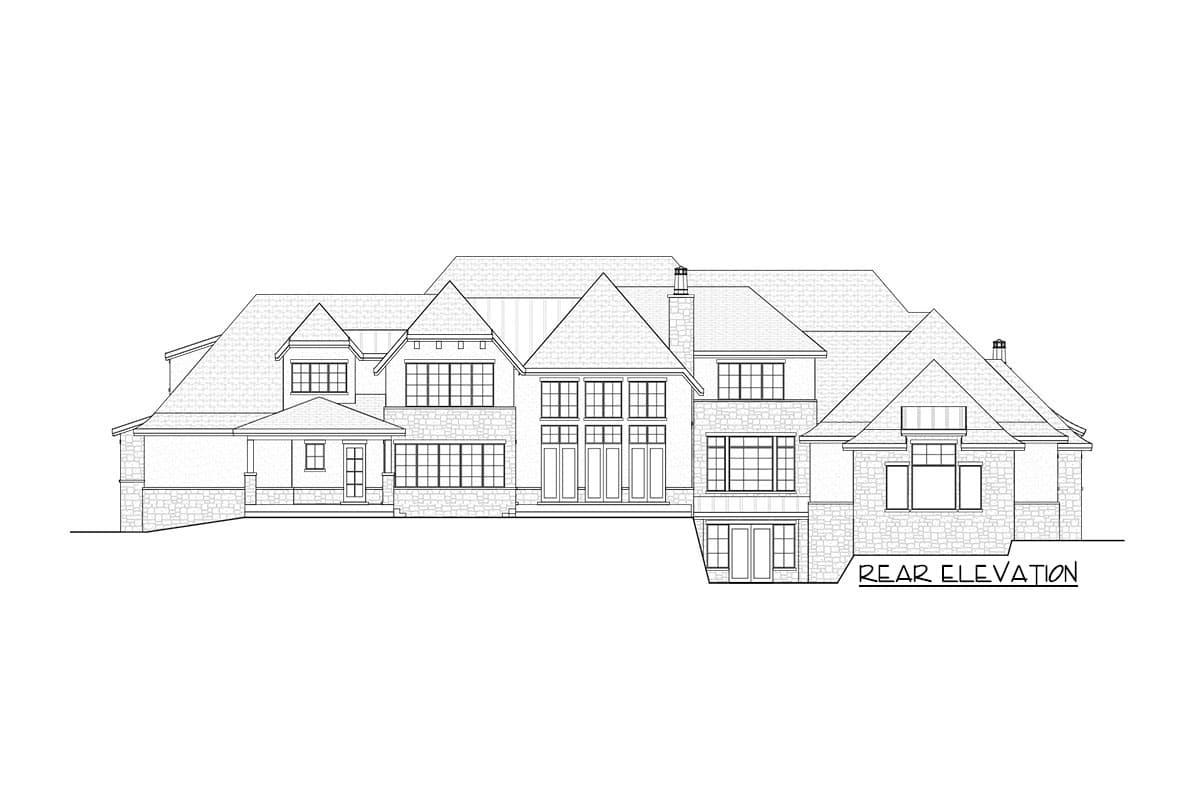

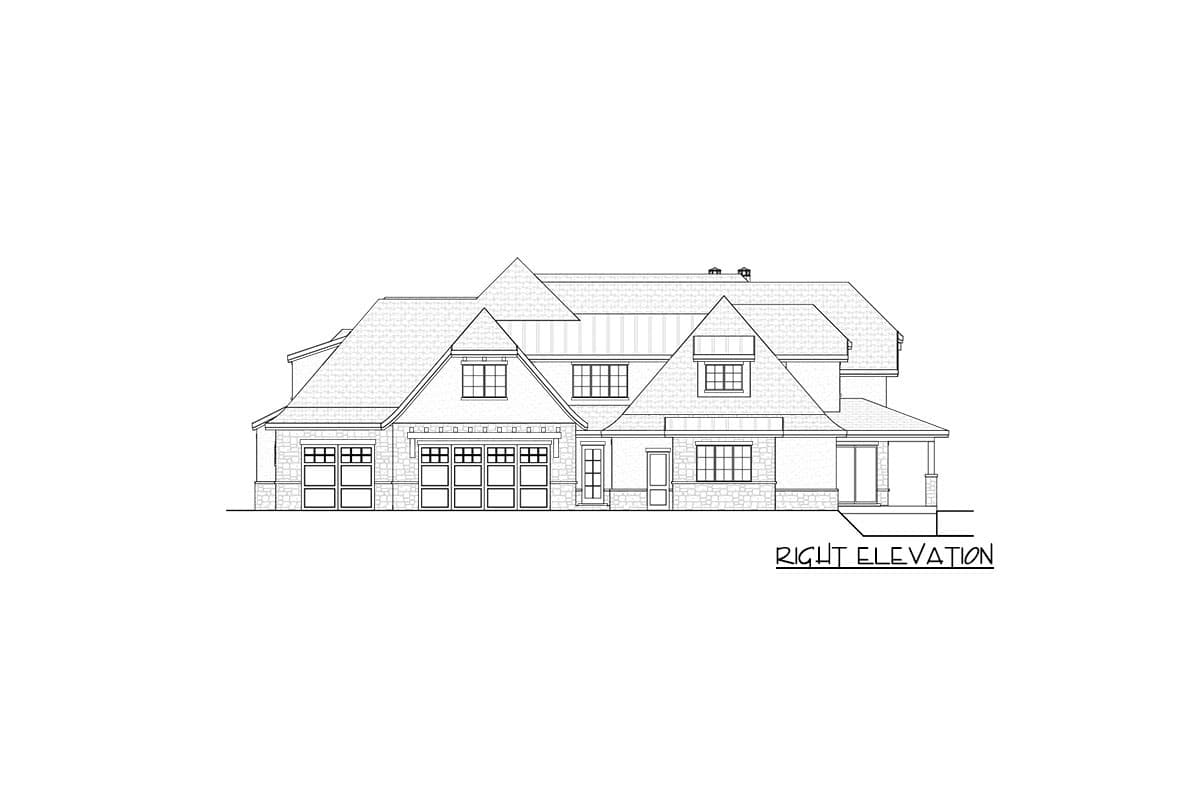

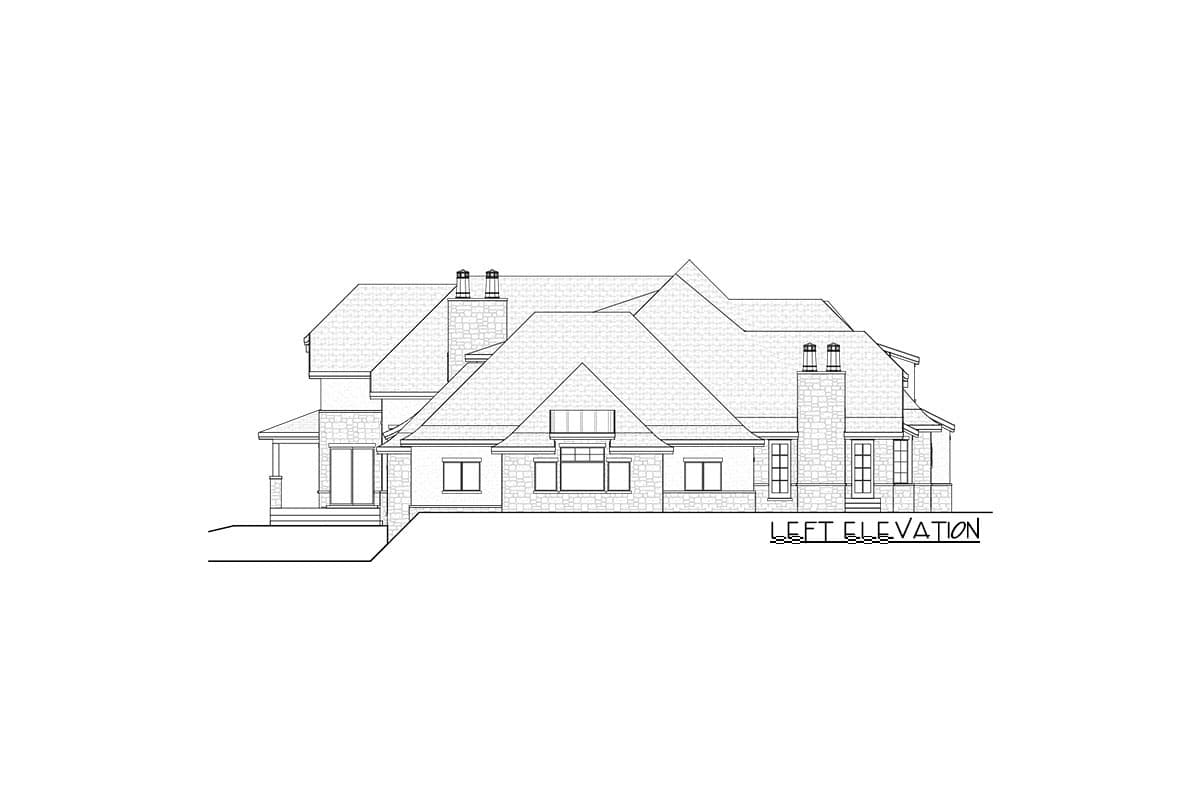

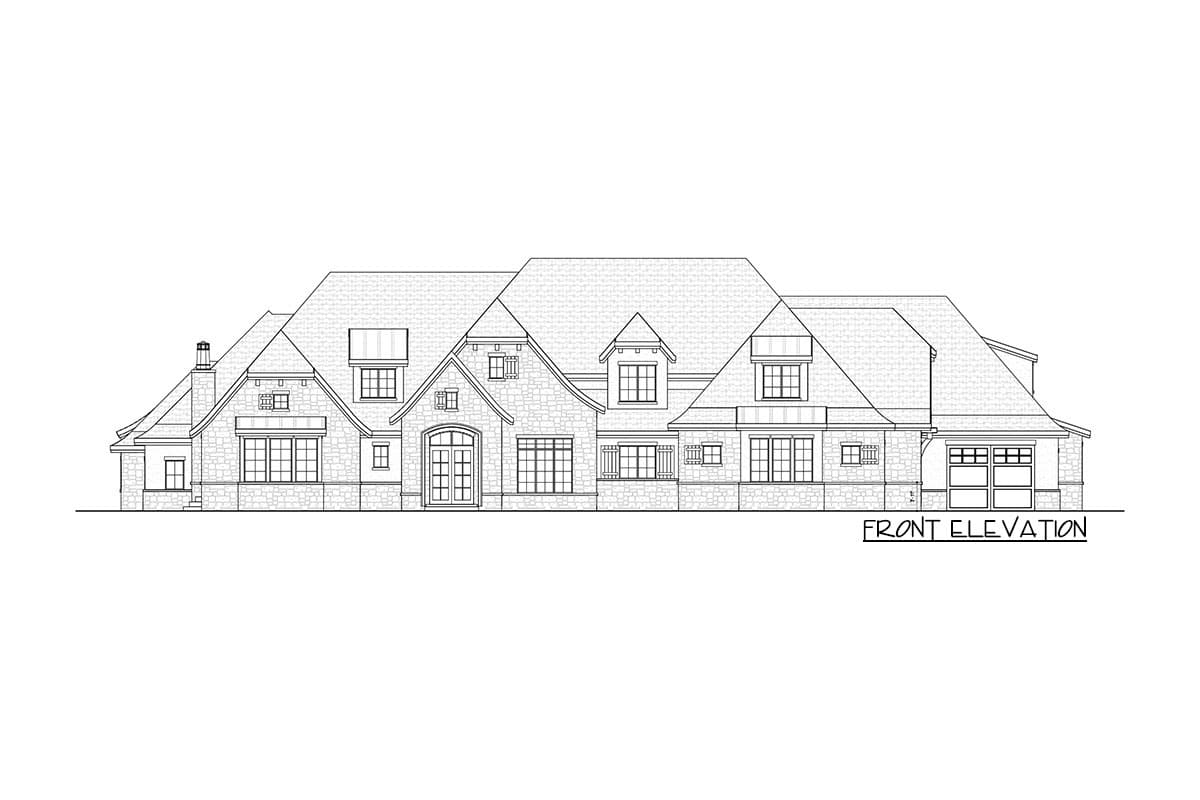

  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

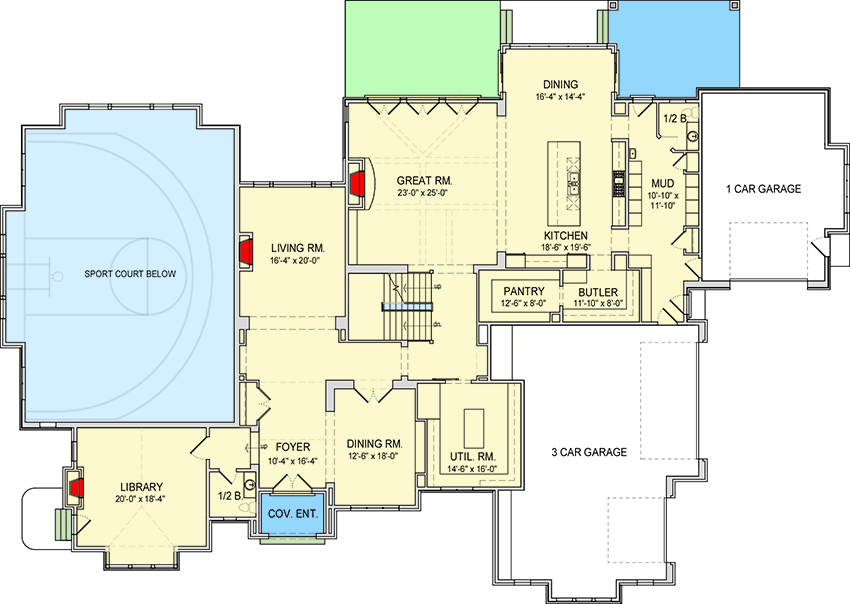

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Spacious European Mountain Home Plan with Sports Court - 290143IY floor plan - Main Level

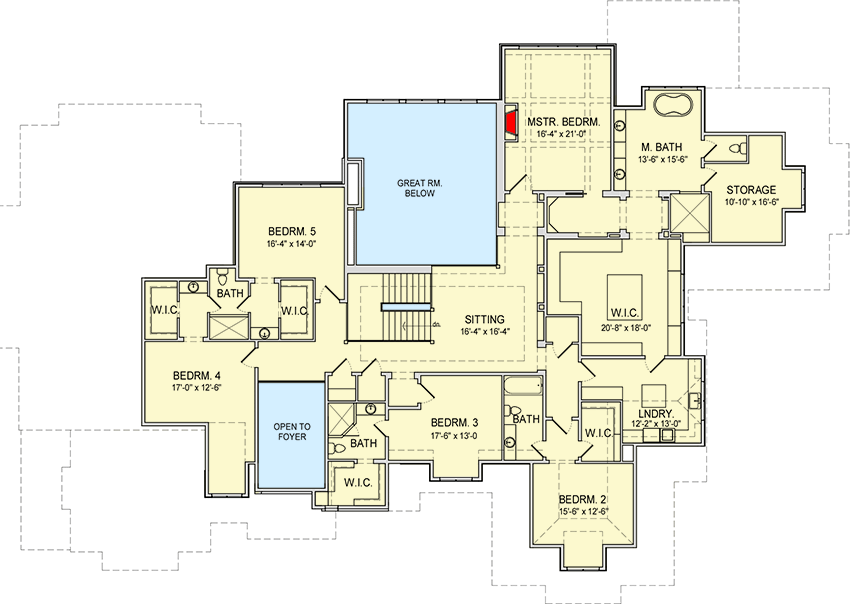

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Spacious European Mountain Home Plan with Sports Court - 290143IY floor plan - 2nd Floor

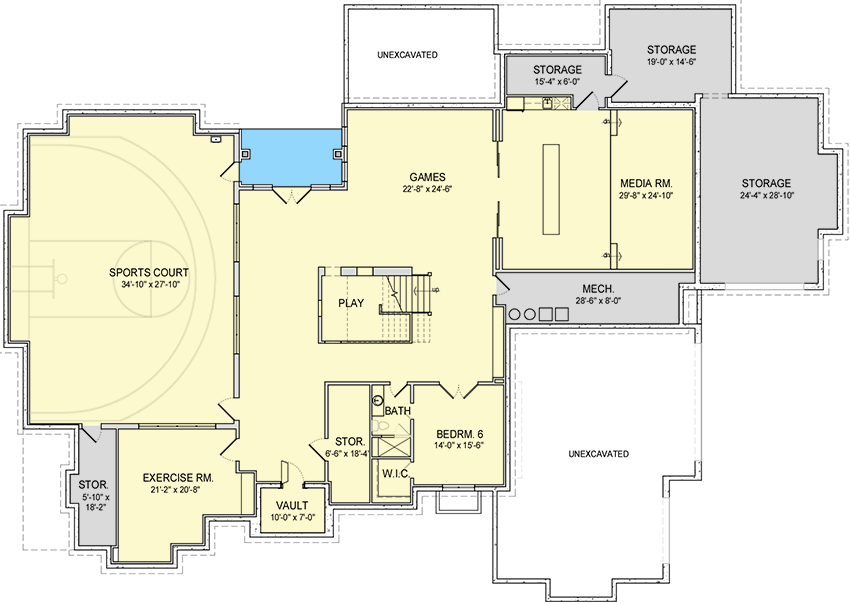

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Spacious European Mountain Home Plan with Sports Court - 290143IY floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 11,572 sq. ft.
  • Lower Level: 3,298 sq. ft.
  • 1st Floor: 4,108 sq. ft.
  • 2nd Floor: 4,167 sq. ft.

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 130' 8"
  • Depth: 85' 10"
  • Max ridge height: 34' 6"

Garage

  • Type: Attached
  • Area: 1698 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Spacious European Mountain Home Plan with Sports Court

  • 11,572

    Heated s.f.

  • 5-6

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $11,572
  • CAD - Single-Build $17,358
  • View all purchase option online

About This Plan

  • Stone and stucco adorn the exterior of this European Mountain home plan. The spacious interior includes three levels of luxury, including a sports court, library, and media and exercise rooms.
  • The main level is where you will find the shared living spaces; a great room that opens to the kitchen, formal dining and living rooms, and a library. The mudroom, utility room, and butler's pantry provide spacious service areas to help you remain organized.
  • Upstairs, the homeowner will love the master suite, which boasts a serene ensuite with 5-fixtures, dedicated storage room, and a walk-in closet that connects to the laundry room.
  • Four family bedroom suites are sprinkled throughout the second level; two share a Jack-and-Jill bath.
  • Entertaining is made easy with this walk-out basement. Friends and family will enjoy the sports court, game area, along with the media and exercise rooms. A sixth bedroom can be found downstairs, perfect for guests.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 11,572 sq. ft.
  • Lower Level: 3,298 sq. ft.
  • 1st Floor: 4,108 sq. ft.
  • 2nd Floor: 4,167 sq. ft.

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 130' 8"
  • Depth: 85' 10"
  • Max ridge height: 34' 6"

Garage

  • Type: Attached
  • Area: 1698 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"
Plan 290143IY
View this and more for this plan by visiting www.architechtecturaldesigns.com/290143IY
|
