Plan 59074ND

Spacious Great Room

Heated S.F.
1,355
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 59074ND

Main Level
Main Level

Plan 59074ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

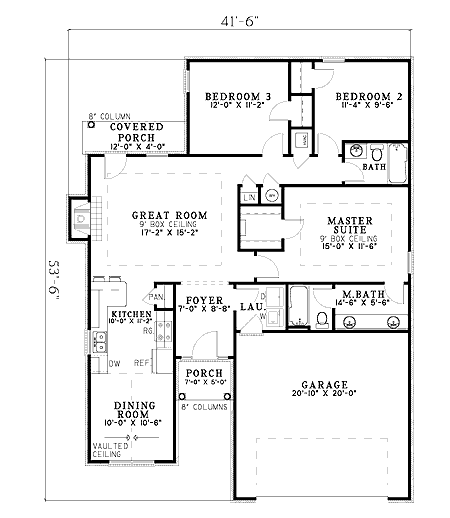

Plan 59074ND: Spacious Great Room - Floor Plan - Main Level - Southern, Traditional

Plan Details

  • Entertaining will be easy in this home. The vaulted ceiling in the dining room creates a feeling of grandeur for your dinner party guests.
  • Afterwards, lead your guests into the spacious great room and around the fire for dessert, coffee and conversation.
  • Preparing of dinner is easy in your open kitchen with fluid access to the dining room.
  • After your guests leave, retire for the evening to your master suite, enhanced by a nine foot boxed ceiling.
  • But don't worry about the children, they will be nestled in their own bedrooms with plenty of space.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,355 sq. ft.

1st Floor

1,355 sq. ft.

Porch, Front

54 sq. ft.

Porch, Rear

48 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

41' 6"

Depth

53' 6"

Garage

Type

Attached

Area

417 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Clustered

Square Footage Breakdown

Total Heated Area

1,355 sq. ft.

1st Floor

1,355 sq. ft.

Porch, Front

54 sq. ft.

Porch, Rear

48 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

41' 6"

Depth

53' 6"

Garage

Type

Attached

Area

417 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Clustered
