Plan 57099HA
Spacious Hillside Home
Heated S.F.
2,080
Beds
4
Baths
3
Stories
1
Cars
2
What's Included
Plan Details
  • The perfect design to accommodate a sloping site.
  • The generous great room features a vaulted ceiling, large bay window, fireplace and is open to the entry and dining areas.
  • For convenience, the kitchen is a U-shaped style and includes a garden window and built-in pantry.
  • The lower level offers a spacious family room, fourth bedroom, third bath, laundry and oversized garage.
What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Spacious Hillside Home

  • 2,080

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

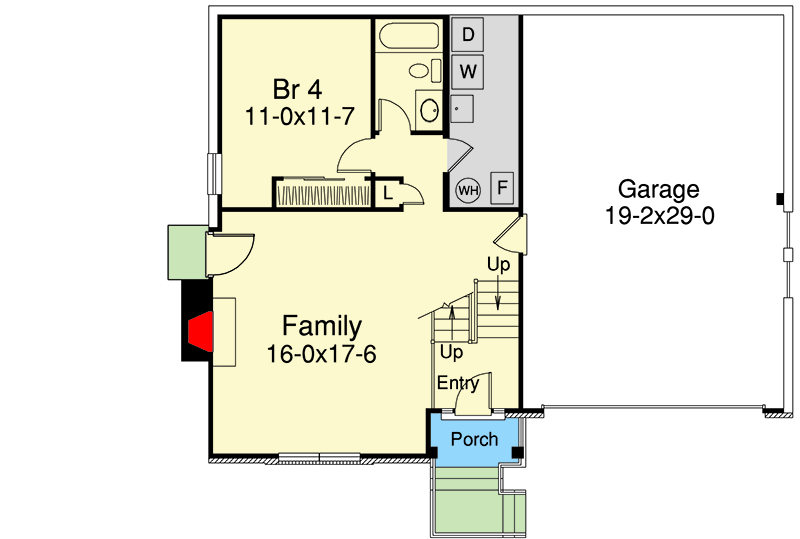

  • Basement

Plan Details

Square Footage Breakdown

  • Total: 2,080 sq. ft.
  • Lower Level: 742 sq. ft.
  • 1st Floor: 1,338 sq. ft.

Dimensions

  • Width: 43' 0"
  • Depth: 33' 0"
  • Max ridge height: 18' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Drive Under
  • Area: 556 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Truss
