Plan 86421HH

Spacious New American House Plan with Five Bedrooms and Three-Car Garage

Heated S.F.
4,125
Beds
5
Baths
5.5
Stories
2
Cars
3

Floor Plan

Plan 86421HH

Main Level
Main Level
2nd Level
2nd Level

Plan 86421HH

M-F 9am-5pm EST |

1-203-761-8500

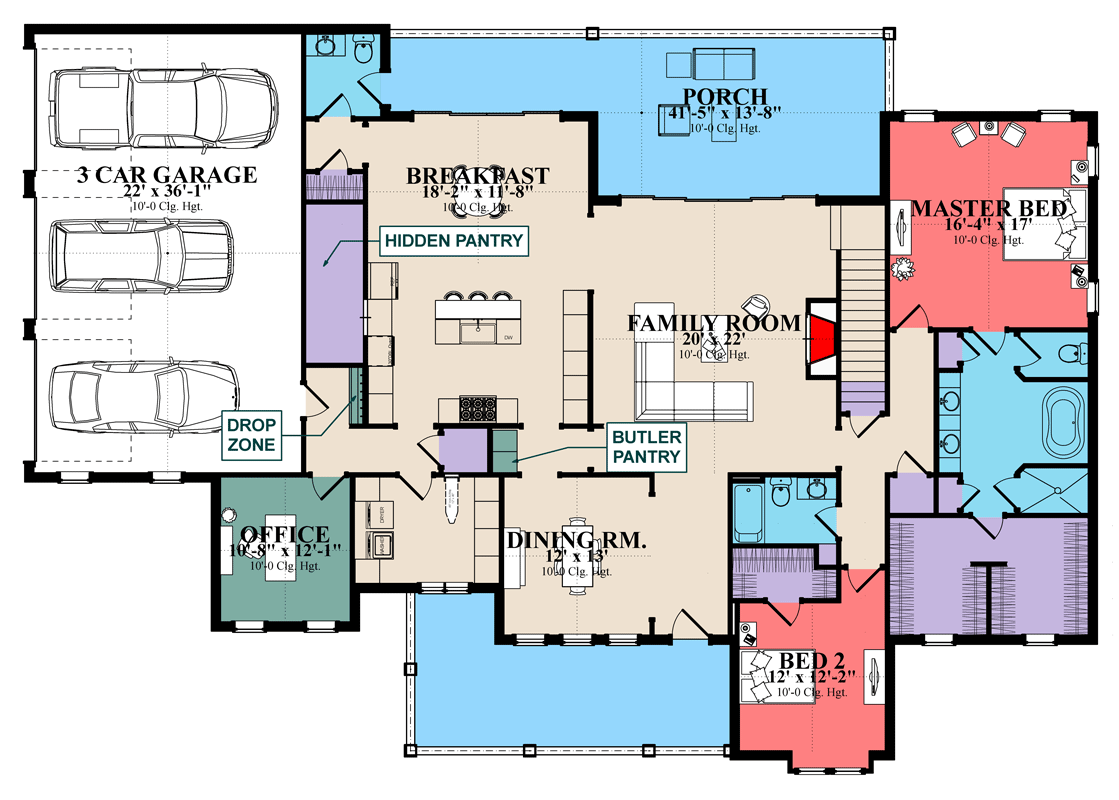

Main Level

Plan 86421HH: Spacious New American House Plan with Five Bedrooms and Three-Car Garage - Floor Plan - Main Level - New American, Traditional

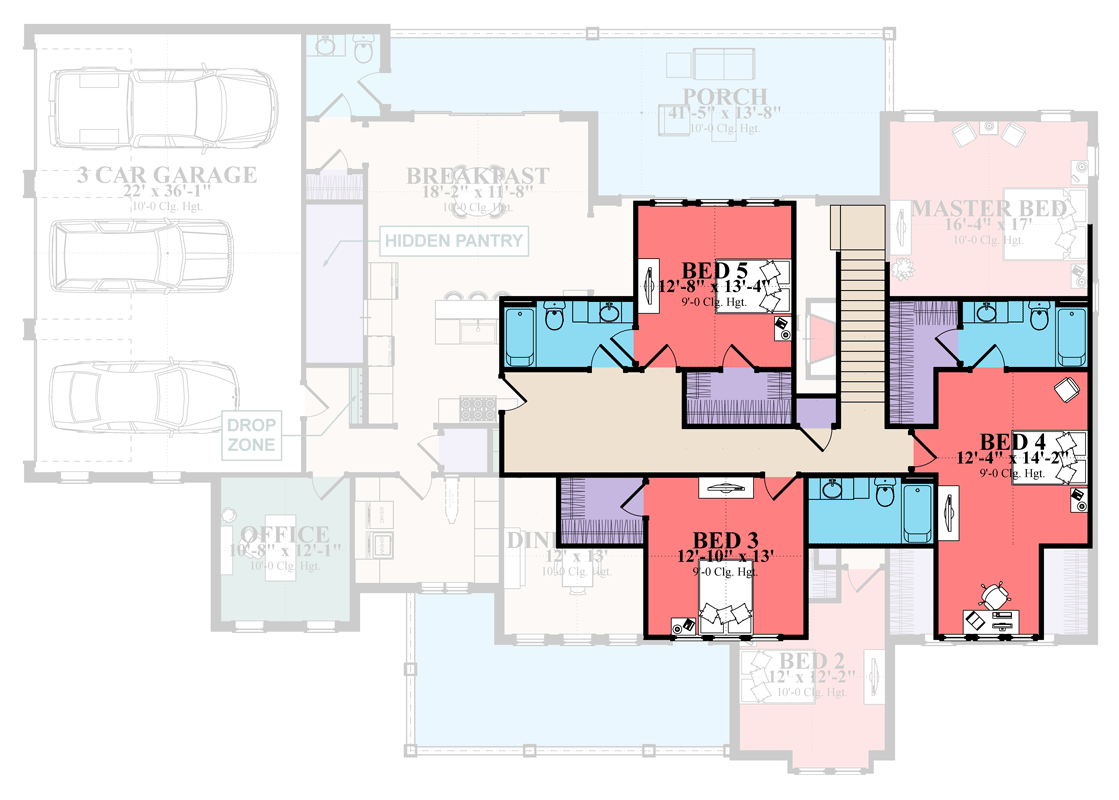

2nd Level

Plan 86421HH: Spacious New American House Plan with Five Bedrooms and Three-Car Garage - Floor Plan - 2nd Level - New American, Traditional

Plan Details

  • This expansive New American residence offers 4,125 square feet of finished living space, featuring five bedrooms, five full bathrooms, one half-bath, and an attached 850-square-foot three-car garage.
  • The charming exterior showcases a welcoming front porch supported by arched timber brackets, setting a tone of refined craftsmanship that continues throughout the home.
  • Inside, the floor plan emphasizes a seamless flow between common areas, creating an inviting environment for daily living and social gatherings.
  • The primary bedroom suite is situated on the main level with bedroom 2 close by.
  • High-pitched rooflines and classic dormer windows add architectural character to the exterior, while the side-entry garage ensures a clean, uncluttered facade.
  • The generous layout provides ample room for a growing household, blending traditional design elements with modern functional requirements.

What's Included

  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,125 sq. ft.

1st Floor

2,934 sq. ft.

2nd Floor

1,191 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

88' 2"

Depth

61' 6"

Max Ridge Height

30' 0"

Garage

Type

Standard, Attached

Area

850 sq. ft.

Count

3 Cars

Entry Location

Side

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

New American

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

4,125 sq. ft.

1st Floor

2,934 sq. ft.

2nd Floor

1,191 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

88' 2"

Depth

61' 6"

Max Ridge Height

30' 0"

Garage

Type

Standard, Attached

Area

850 sq. ft.

Count

3 Cars

Entry Location

Side

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

New American

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
